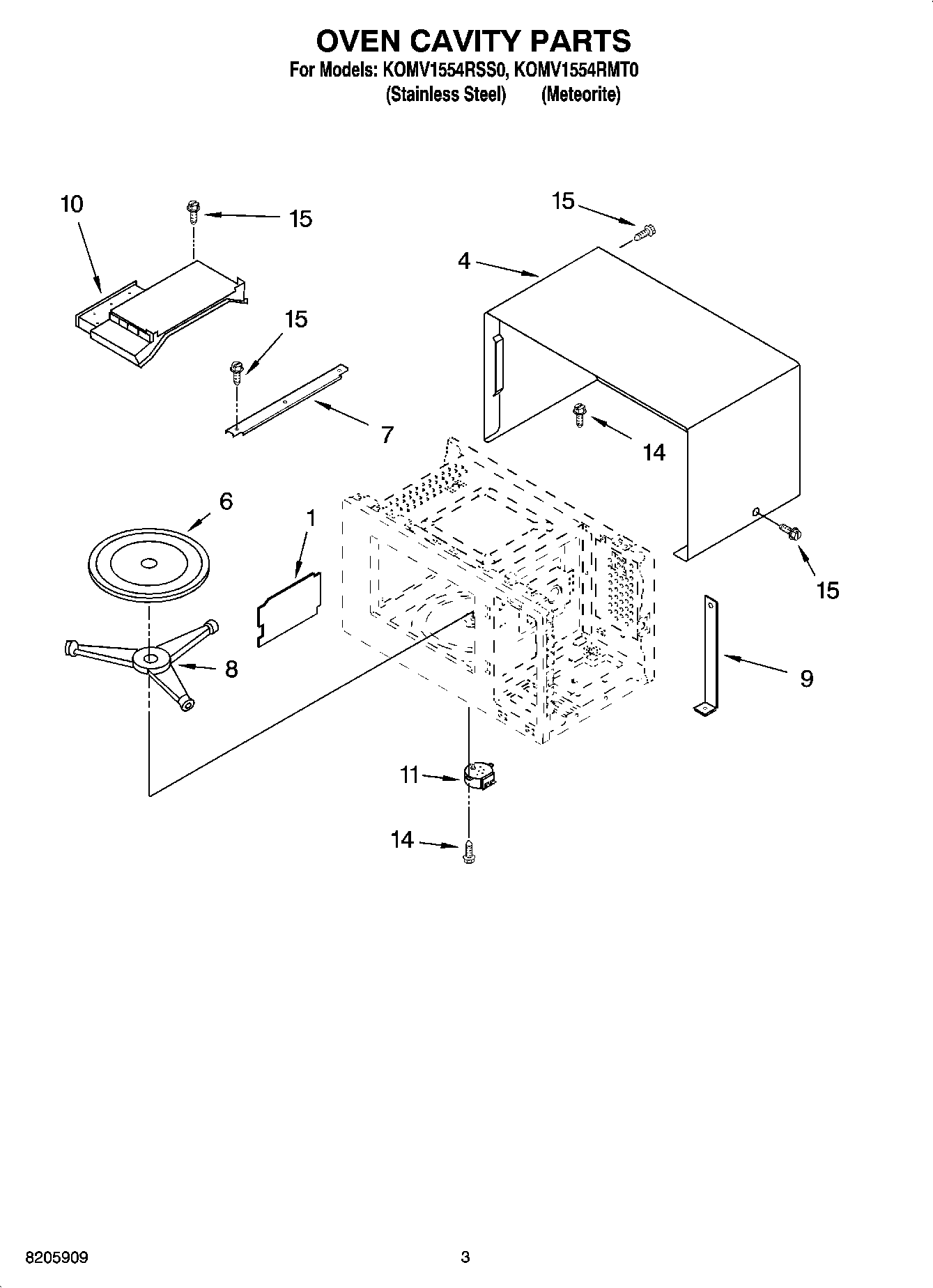

KOMV1554RSS0 03 – OVEN CAVITY PARTS

Written by

Products

Position	Product
1	Cover, Guide
4	Outer Case (Black)
6	WP8184775 Whirlpool Microwave Cooking Tray
7	Support, Chassis
8	Turntable Support
9	Lever, Mounting
10	Duct, Exhaust
11	Motor, Turntable
14	Screw
15	SCREW
