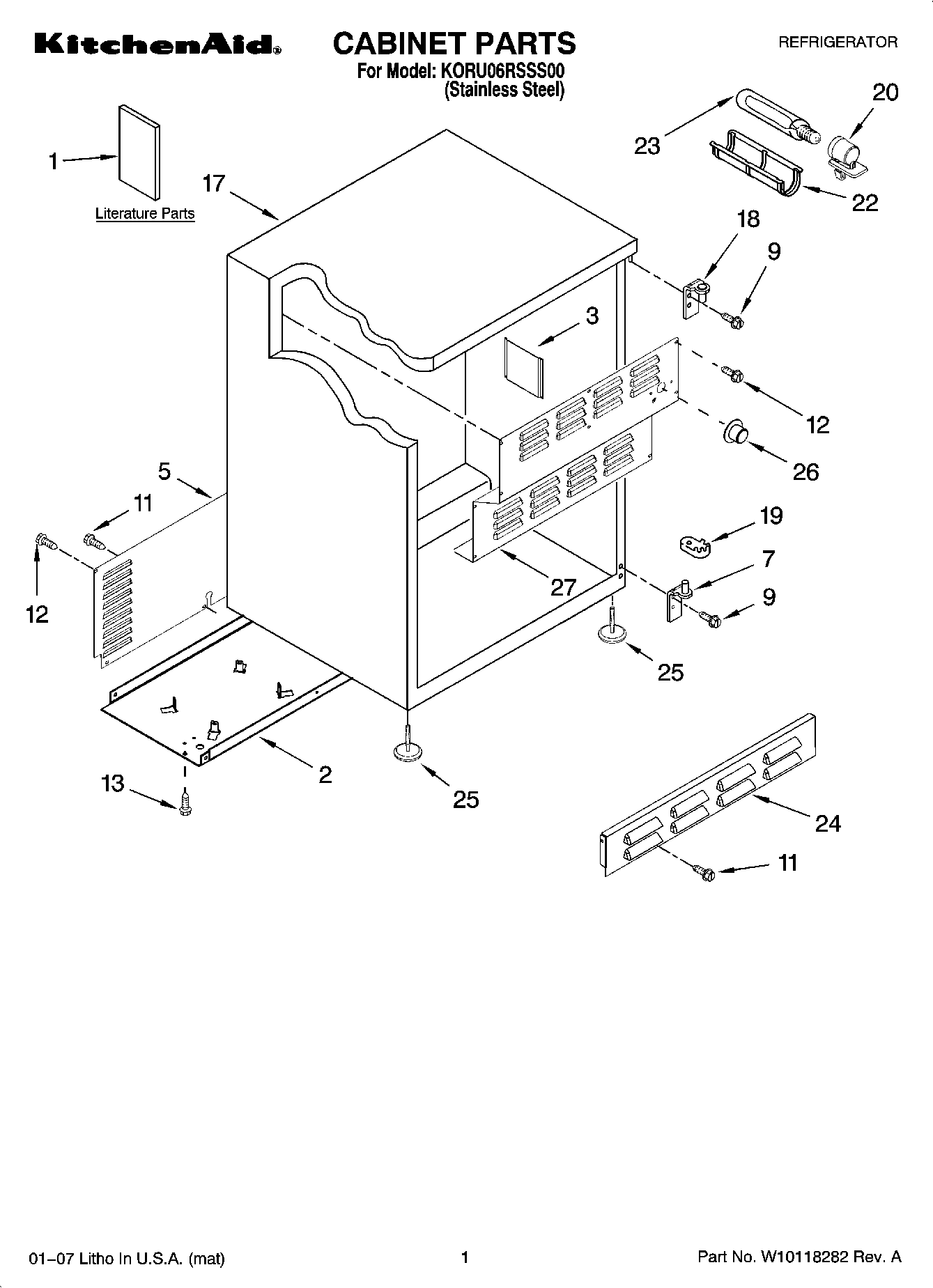

KORU06RSSS00 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide
1	Service & Wiring Sheet
1	Use & Care Guide
2	Baseplate Assembly
3	Shield, Heater (2)
5	Cover, Unit Compartment
7	2311016 Whirlpool Door Hinge
9	W11474472 Whirlpool Screw
11	Screw, 8-32X.5 (stainless)
12	Screw
13	Screw (4)
17	Cabinet, (Not A Serviceable Part)
18	Hinge Asm, Top
19	WPW10329686 Whirlpool Door Cam Black
20	WPW10191429 Whirlpool Refrigerator Socket
22	Cover, Light
23	WP548049 Whirlpool Refrigerator Light Bulb
24	Panel, Unit
25	2303615 Whirlpool Refrigerator Leveler
26	Knob, Thermostat
27	Panel, Evaporator
