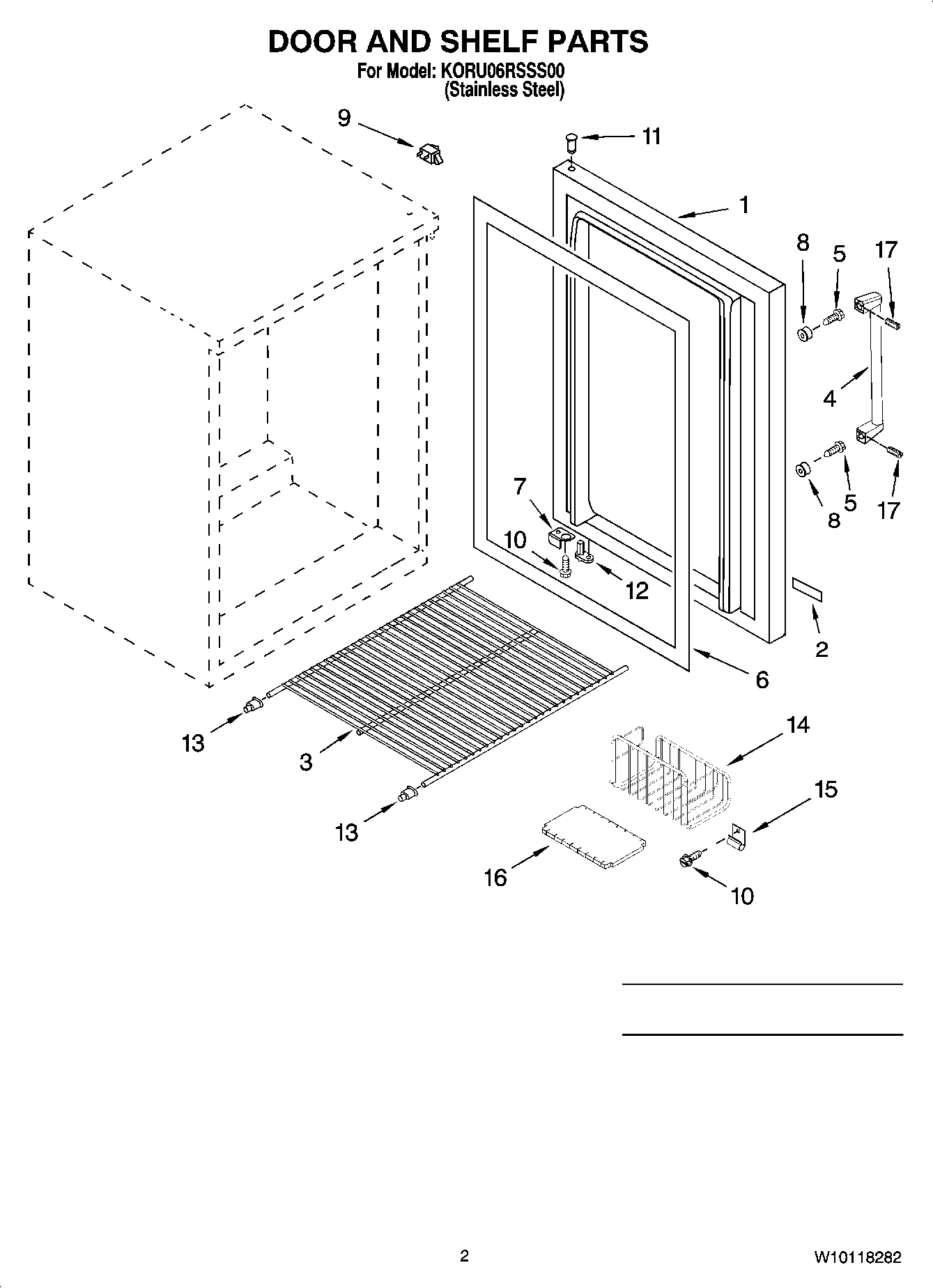

KORU06RSSS00 02 – DOOR AND SHELF PARTS
Written by
in
KORU06RSSS00 02 – DOOR AND SHELF PARTS
Products
Position
Product
1
Door Assembly (Includes Gasket)
2
NAMEPLATE
3
Shelf, Wire (2)
4
Handle, Door Assy
5
WP488163 Whirlpool Refrigerator Screw
6
Gasket, Door
7
Bracket, Door Stop
8
WPW10170540 Whirlpool Screw
9
W11457217 Whirlpool Refrigerator Rocker Switch Combination
10
Screw
11
WP2183003 Whirlpool Thimble
12
WP2182179 Whirlpool Cam Closer
13
2163762 Whirlpool Refrigerator Cup Assembly
14
Basket, Door (2)
15
Clip, Basket Mounting (8)
16
Mat, Door Basket (2)
17
SCREW
17
CLEANER, STAINLESS STEEL (12 OZ)
17
Caster Kit (4)
17
OPTIONAL PARTS NOT ILLUSTRATED
←
