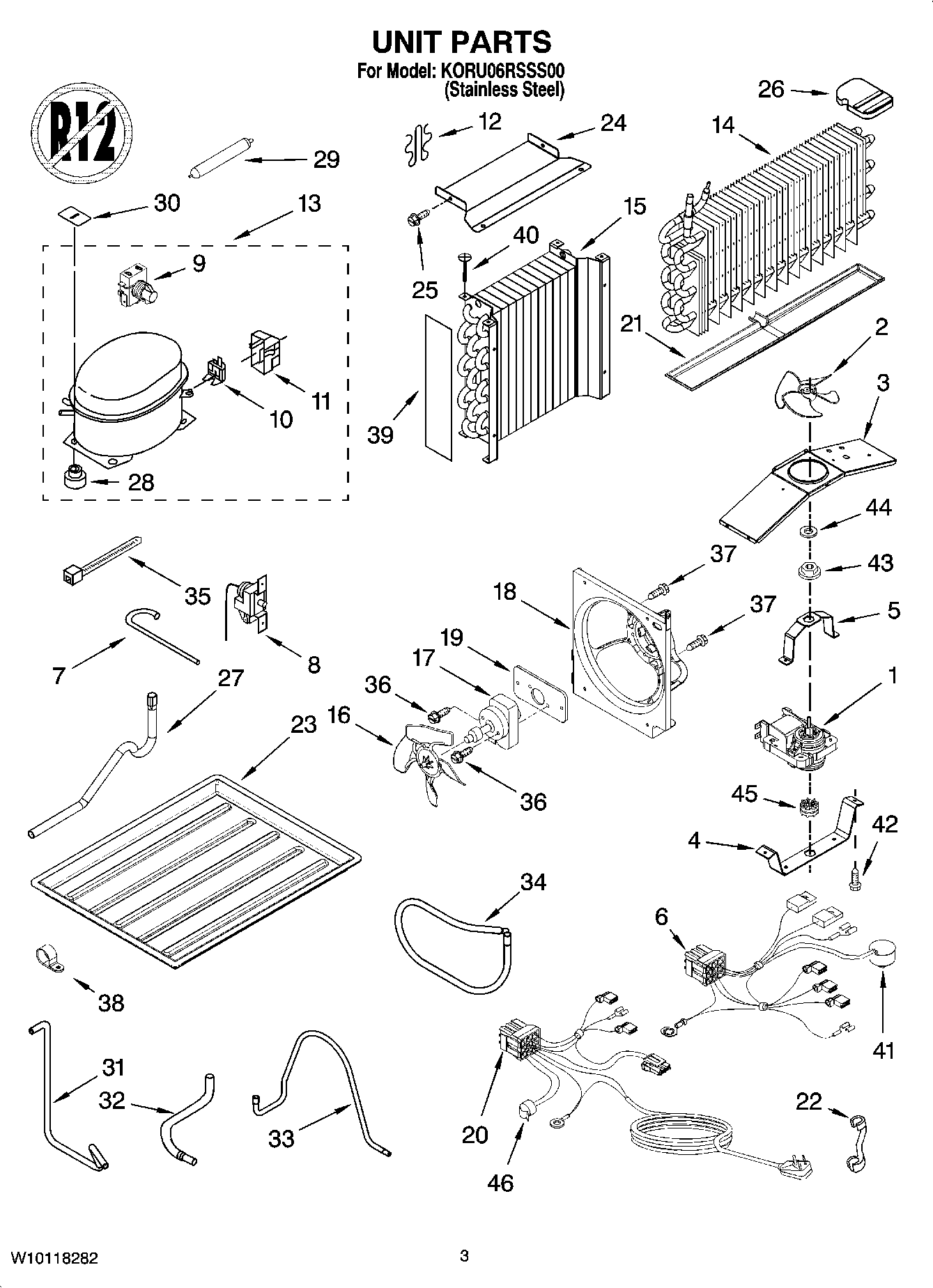

KORU06RSSS00 03 – UNIT PARTS

Products

Position	Product
1	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
2	WP2163777 Whirlpool Refrigerator Fan Blade
3	Panel, Evap Fan
4	Bracket, Mounting
5	Bracket, Evap. Fan, Front
6	Wire Harness, Evap Fan (Includes 41)
7	WP2196003 Whirlpool Refrigerator Bar Riser
8	THERMOSTAT
9	4312462 Whirlpool Refrigerator Overload
11	WP2162358 Whirlpool Refrigerator Terminal Cover
12	Clip, Compressor (4)
13	Compressor (Includes 9, 10, 11 & 28)
14	2319104 Whirlpool Refrigerator Evaporator
15	WP2303647 Whirlpool Refrigerator Condenser
16	W11458267 Whirlpool Refrigerator Fan Blade
17	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
18	Bracket, Fan Mounting
19	Plate
20	2310035 Whirlpool Refrigerator Wire Harness
21	Drain Pan, Evaporator
22	Bushing, Cord
23	Drain Pan
24	Cover, Condenser Fan
25	Screw
26	Support Block
27	Tube, Defrost Drain
28	WP2163786 Whirlpool Refrigerator Grommet
29	W10843121 Whirlpool Refrigerator Tube
30	Washer (4)
31	2303630 Whirlpool Tube
32	Tube, Process
33	Tube, Condenser Out
34	Tube, Suction Lower
35	WPW10339879 Whirlpool Wire Tie
36	8281197 Whirlpool Refrigerator Screw
37	WP8281196 Whirlpool Screw
38	7111P002-60 Whirlpool Clamp
39	Shield, Bi-Metal
40	Clip, Tree (2)
41	Bi-Metal, Defrost
42	Screw (2)
43	WP2264462 Whirlpool Refrigerator Grommet
44	Washer
45	Grommet
46	2254101 Whirlpool Refrigerator Bimetallic Defrost
46	REFRIGERANT CHARGE 4.75 (R-134)
