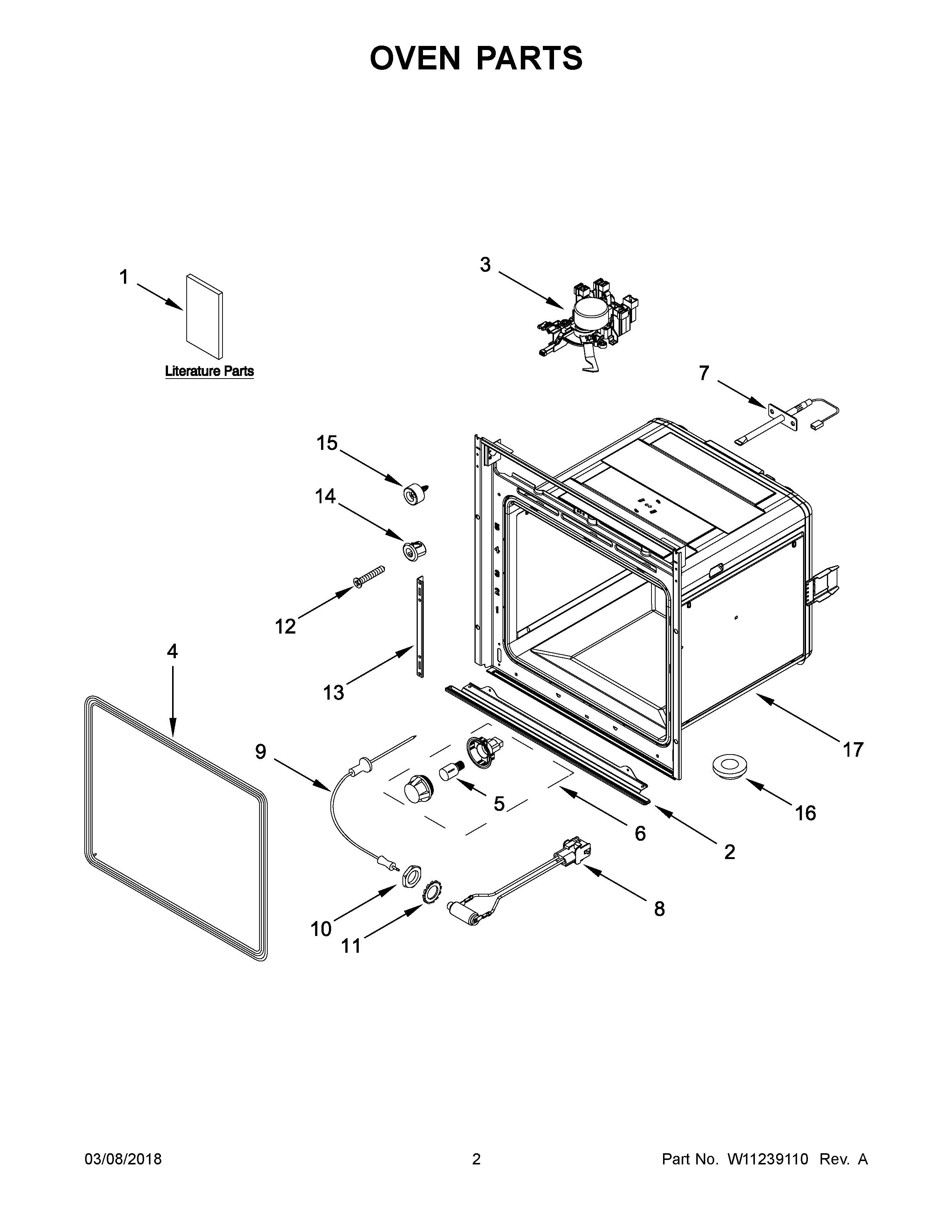

KOSC104FSS0 02 – OVEN PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	KIT, POWER CORD (NO PLUG)
1B	WIRING DIAGRAM
1A	USE AND CARE GUIDE
1	INSTALLATION INSTRUCTIONS
2	W10517979 Whirlpool Trim Assembly
3	LATCH, DOOR
4	W10518387 Whirlpool Oven Door Gasket
5	BULB, HALOGEN 40 WATT
6	ASSEMBLY, BULB INCLUDES SOCKET AND LENS COVER
7	SENSOR, TEMPERATURE
8	W11237411 Whirlpool Probe Jack
9	PROBE, MEAT
10	NUT, MEAT PROBE 10X1.57
11	WASHER, MEAT PROBE
12	KIT, OVEN SCREWS
13	HINGE, RUNNING MECHANISM
14	BUMPER, OVEN
15	BUMPER, OVEN DOOR
16	FOOT, LEVEL OVEN
