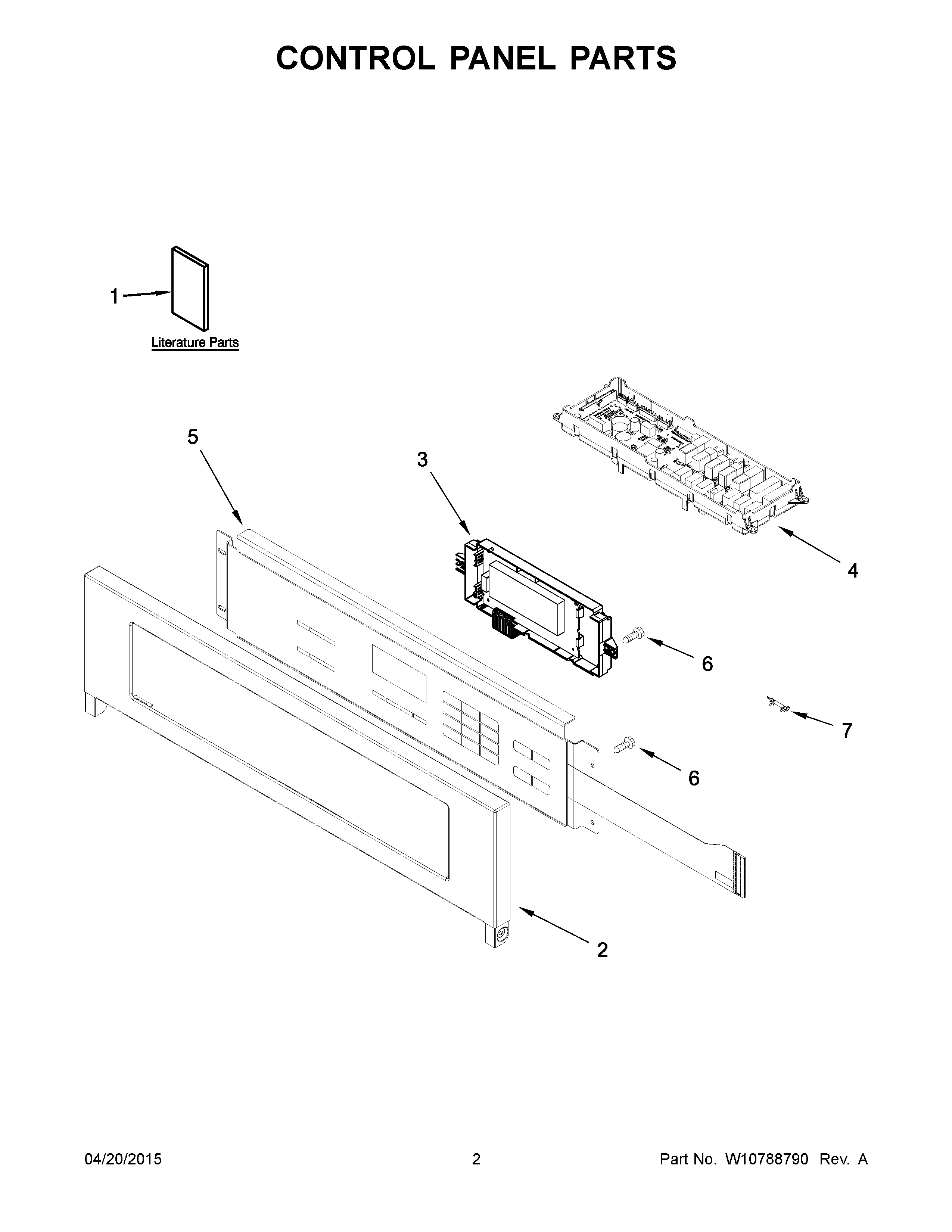

KOSC504ESS00 02 – CONTROL PANEL PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10691761 Whirlpool Wire Harness
NIW10691785 Whirlpool Wire Harness
NIW11157775 Whirlpool Wire Harness
NI4451761 Whirlpool Oven Support Bracket
NI4448664 Whirlpool Oven Mounting Bracket
NI4450800 Whirlpool Oven Screw
1AINSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE
2W10704699 Whirlpool Control Panel
3W10803991 Whirlpool Electronic Control Board + Core
4W10803993-includeCORE Whirlpool W10803993 Refrigerator Electronic Control Board
5W10694991 Whirlpool Membrane Switch
6WP3400832 Whirlpool Screw
7FUSE-THRML WALL OVEN
