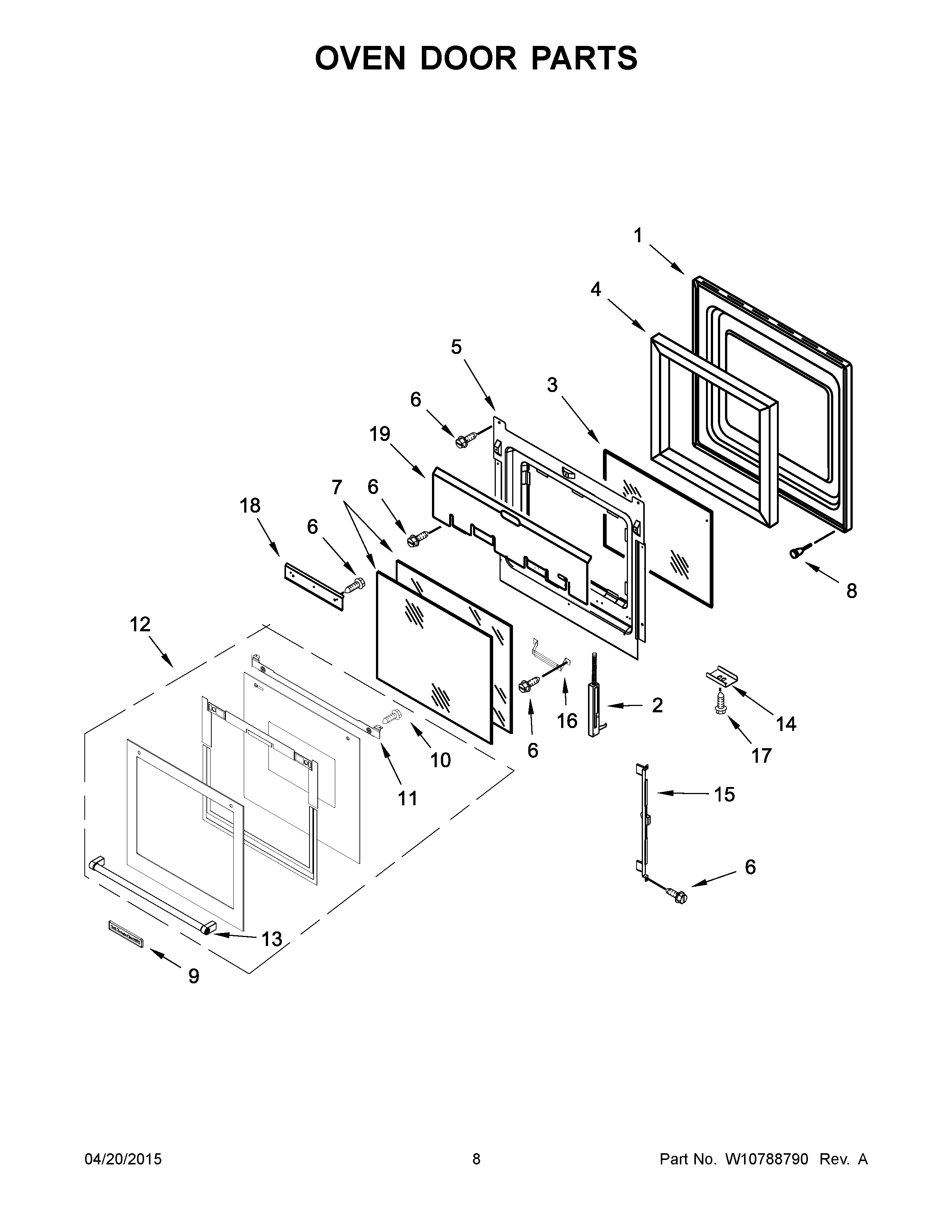

KOSC504ESS00 05 – OVEN DOOR PARTS

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
2	WP9760572 Whirlpool Door Hinge
2A	WP9760571 Whirlpool Door Hinge
3	WP4449247 Whirlpool Inner Door Glass
4	W11688413 Whirlpool Insulation
5	4457130 Whirlpool Oven Retainer
6	SCREW
7	WP9759223 Whirlpool Door Glass
8	4448520 Whirlpool Oven Bumper
9	W10839793 Whirlpool Refrigerator Nameplate
10	WP8533988 Whirlpool Screw Fastener
11	BRACKET, HANDLE
12	W10801071 Whirlpool Glass Door Assembly
13	W10737395 Whirlpool Door Handle
14	W10789032 Whirlpool Clip
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
17	WP3400832 Whirlpool Screw
18	4457112 Whirlpool Oven Heat Shield
19	4457101 Whirlpool Oven Shield
