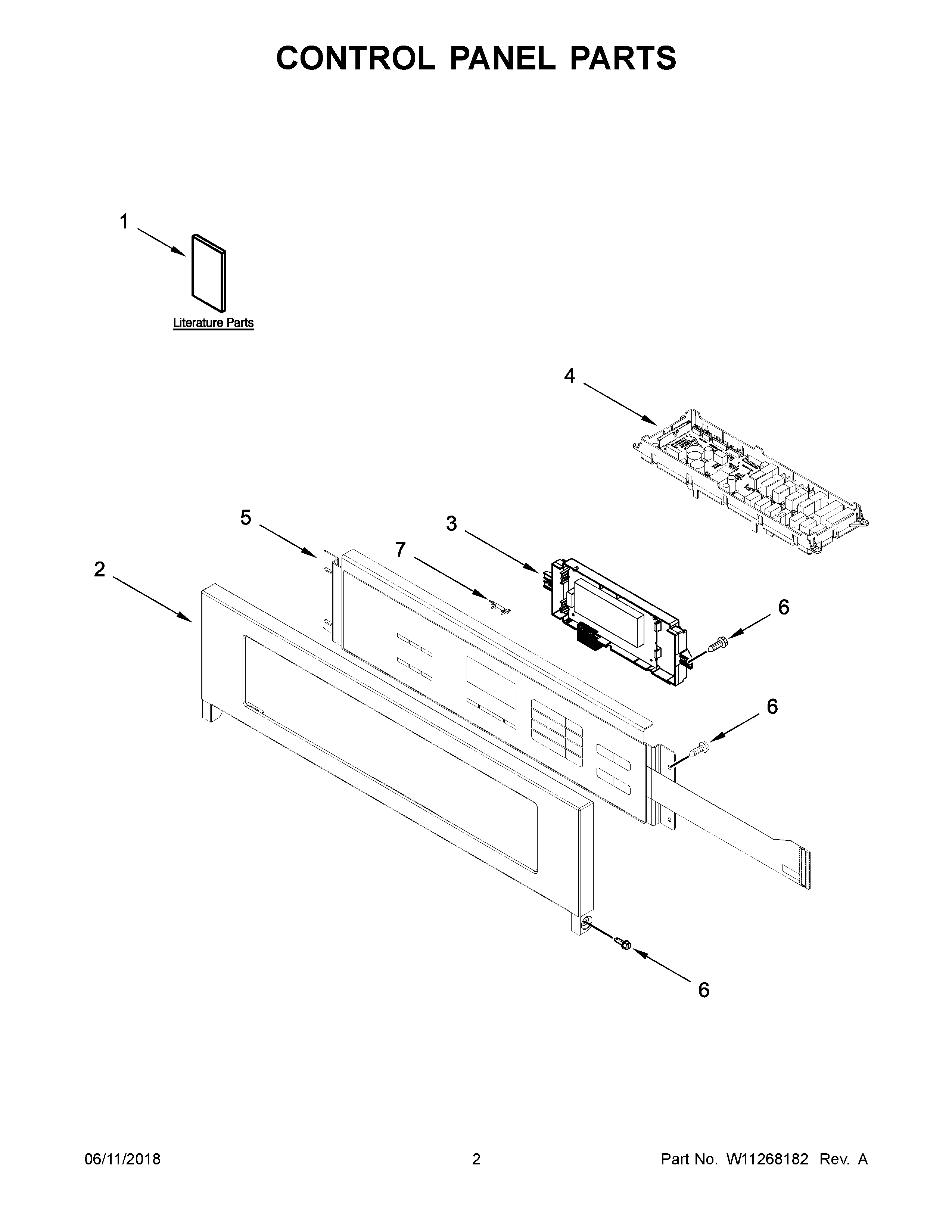

KOSC504ESS01 02 – CONTROL PANEL PARTS

KOSC504ESS01 02 – CONTROL PANEL PARTS

Written by

in

KOSC504ESS01 02 – CONTROL PANEL PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11177680 Whirlpool Wire Harness
NIW11157776 Whirlpool Wire Harness
NIW11157775 Whirlpool Wire Harness
NI4451761 Whirlpool Oven Support Bracket
NIWPW10339879 Whirlpool Wire Tie
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
1BSHEET, TECH
1GUIDE, USE & CARE
1AINSTRUCTIONS, INSTALLATION
1CDIAGRAM, WIRING
2W10704699 Whirlpool Control Panel
3W10803991 Whirlpool Electronic Control Board + Core
4W10803993-includeCORE Whirlpool W10803993 Refrigerator Electronic Control Board
5W10694991 Whirlpool Membrane Switch
6SCREW
7FUSE-THRML WALL OVEN
