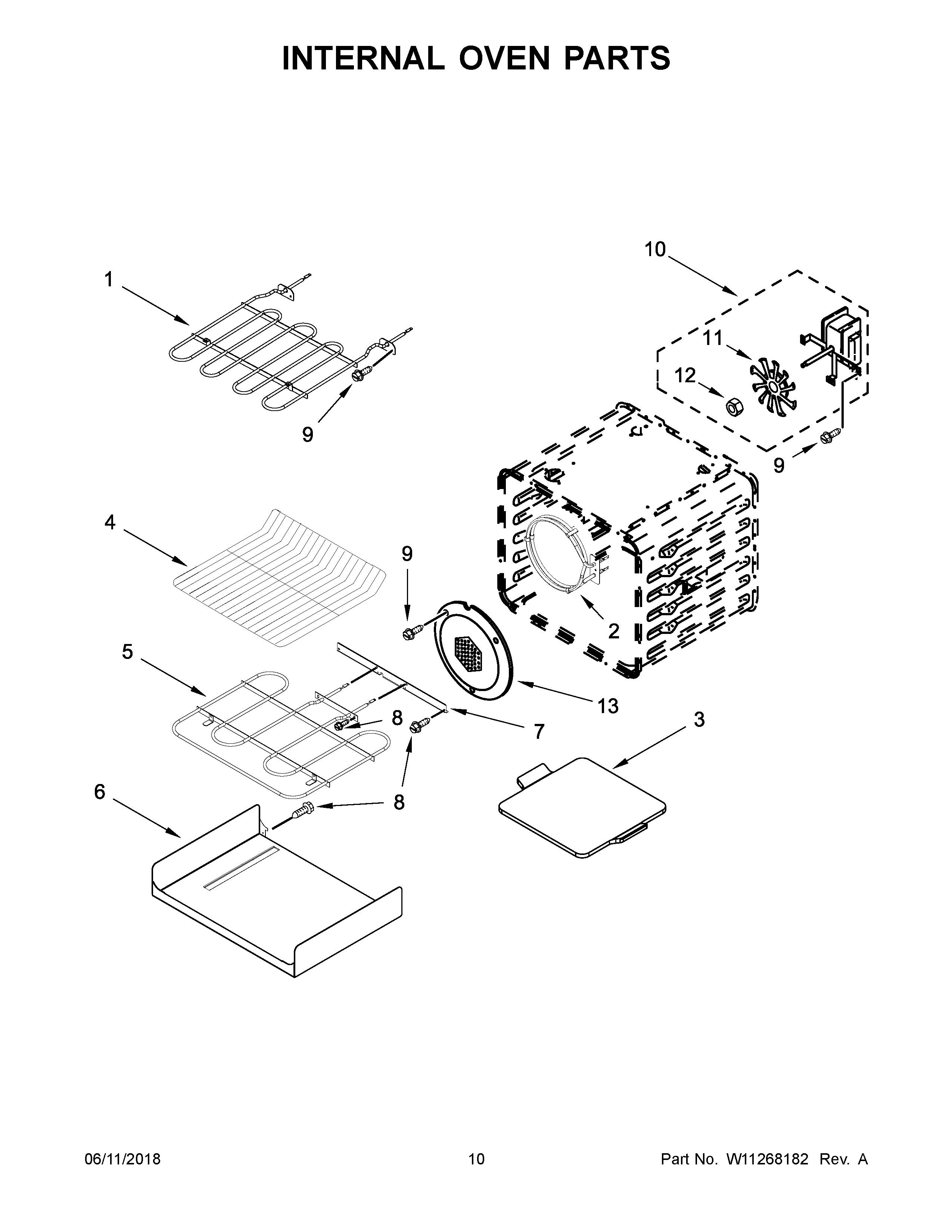

KOSC504ESS01 06 – INTERNAL OVEN PARTS

KOSC504ESS01 06 – INTERNAL OVEN PARTS

Written by

in

KOSC504ESS01 06 – INTERNAL OVEN PARTS

Products

PositionProduct
1W10685631 Whirlpool Broil Element
2WP9760769 Whirlpool Element Assembly
3W10696057 Whirlpool Bake Stone
44448716 Whirlpool Oven Rack 24"
5ELMNT-BAKE
64455035 Whirlpool Bake Tray
74450039 Whirlpool Oven Access Cover
8SCREW
9W10850807 Whirlpool Screw
10W10860984 Whirlpool Fan Motor
11W10819914 Whirlpool Convection Fan
12W10794042 Whirlpool Nut
13WPW10160821 Whirlpool Fan Cover
