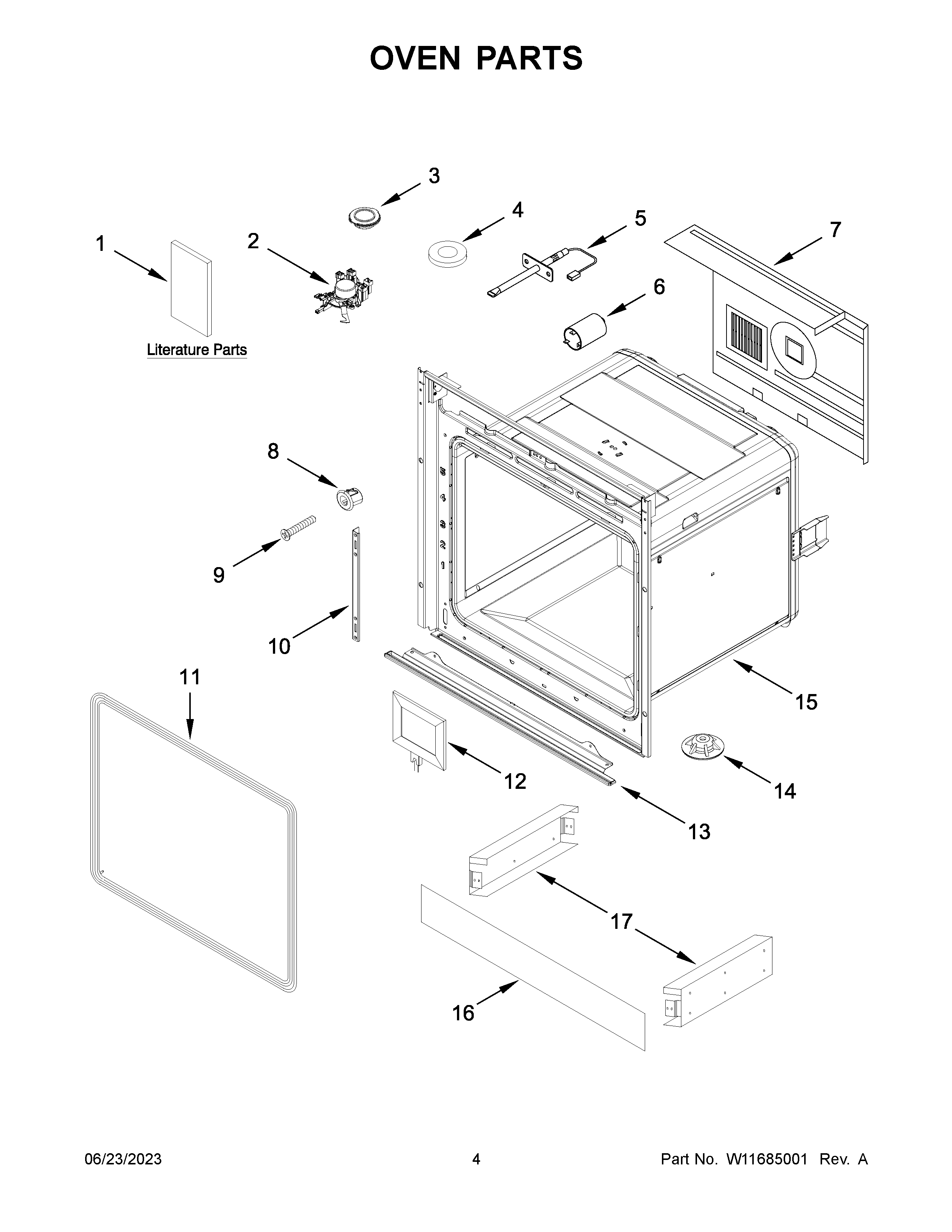

KOSC504PPS00 03 – OVEN PARTSadmin2025-04-26T12:13:11+00:00KOSC504PPS00 03 – OVEN PARTS
Products
| Position | Product |
|---|
| NI | CABINET (NOT A SERVICEABLE PART) |
| NI | SCREW KIT, INSERT PANEL |
| NI | W11594182 Whirlpool Wire Harness |
| NI | KIT, POWER CORD (NO PLUG) |
| 1A | MANUAL, OWNER'S |
| 1 | INSTRUCTIONS, INSTALLATION |
| 1B | SHEET, TECH |
| 2 | W11347847 Whirlpool Door Latch |
| 3 | CAP |
| 4 | WASHER, TEFLON |
| 5 | PROBE, OVEN TEMPERATURE |
| 6 | W10549523 Whirlpool Microwave Filter |
| 7 | PANEL, REAR OVEN |
| 8 | BUMPER |
| 9 | W10519818 Whirlpool Screw |
| 10 | W11581007 Whirlpool Hinge Bracket |
| 11 | W10518387 Whirlpool Oven Door Gasket |
| 12 | W11348087 Whirlpool Light Bulb |
| 13 | W10517979 Whirlpool Trim Assembly |
| 14 | FOOT, LEVEL OVEN |
| 16 | PANEL, INSERT |
| 17 | BRACKET, PANEL |
