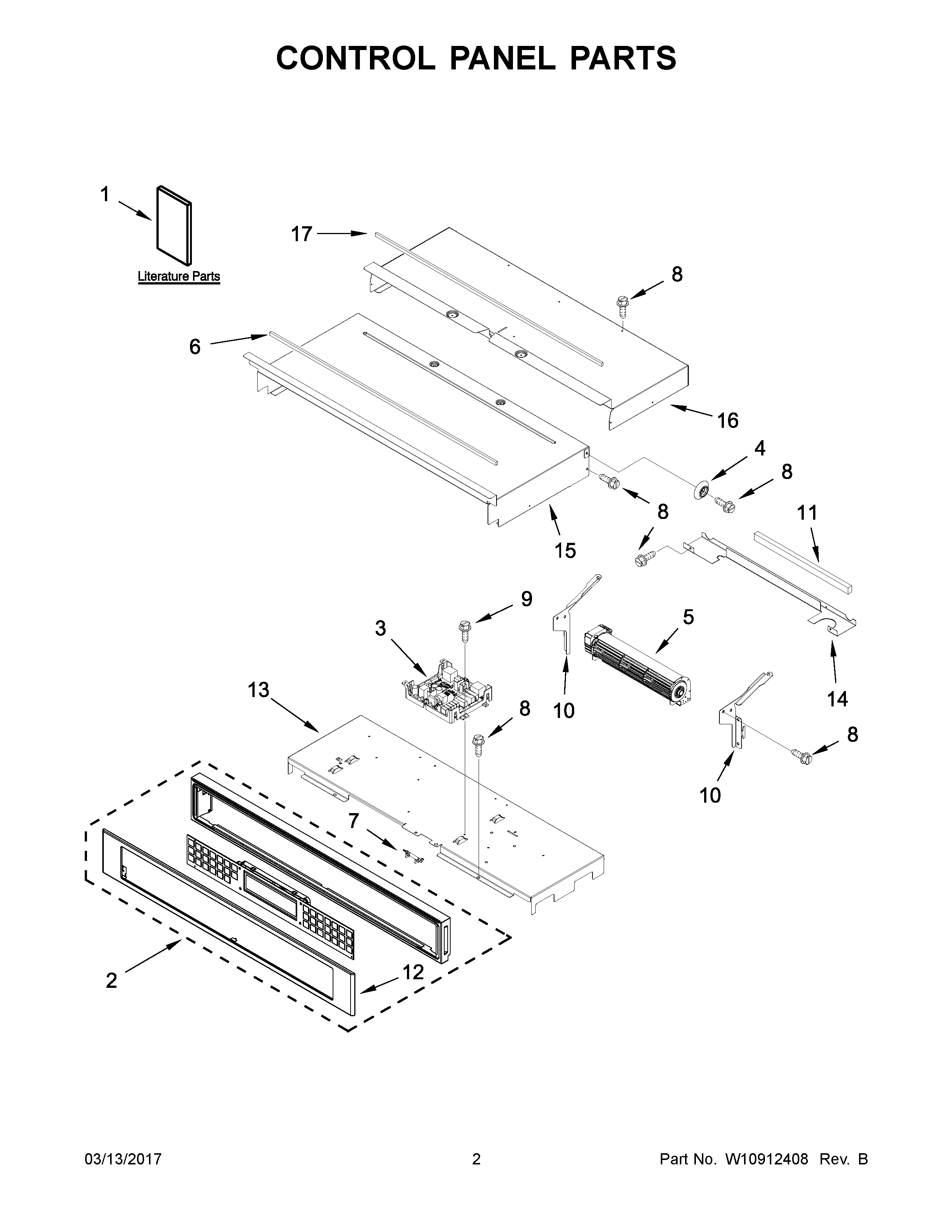

KOSE500EBL02 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11699910 Whirlpool Wire Harness
NI	4452400 Whirlpool Microwave Wire Harness
NI	W11136132 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	W10487999 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11157218 Whirlpool Wire Harness
NI	W11132989 Whirlpool Wire Harness
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
1C	SHEET, TECH
1B	INSTRUCTIONS, UNDERCOUNTER INSTALL
2C	W10916750 Whirlpool Membrane Switch
2	W11087454 Whirlpool Console + Core
2A	W10916751 Whirlpool Dishwasher Membrane Switch
2B	W11093241 Whirlpool Control Panel
3	W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5	W11245567 Whirlpool Blower Assembly
6	WPW10657548 Whirlpool Foam Seal
7	W11204568 Whirlpool Thermal Fuse
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12C	W10776407 Whirlpool Control Panel
12A	PANL-CNTRL
12	W10588744 Whirlpool Control Panel
12B	W10588740 Whirlpool Control Panel
13	TRAY, ELECTRONIC
14	W10655465 Whirlpool Mounting Bracket
15	W10318192 Whirlpool Cabinet Top
16	W10904156 Whirlpool Cabinet Top
17	W10728475 Whirlpool Foam Seal
