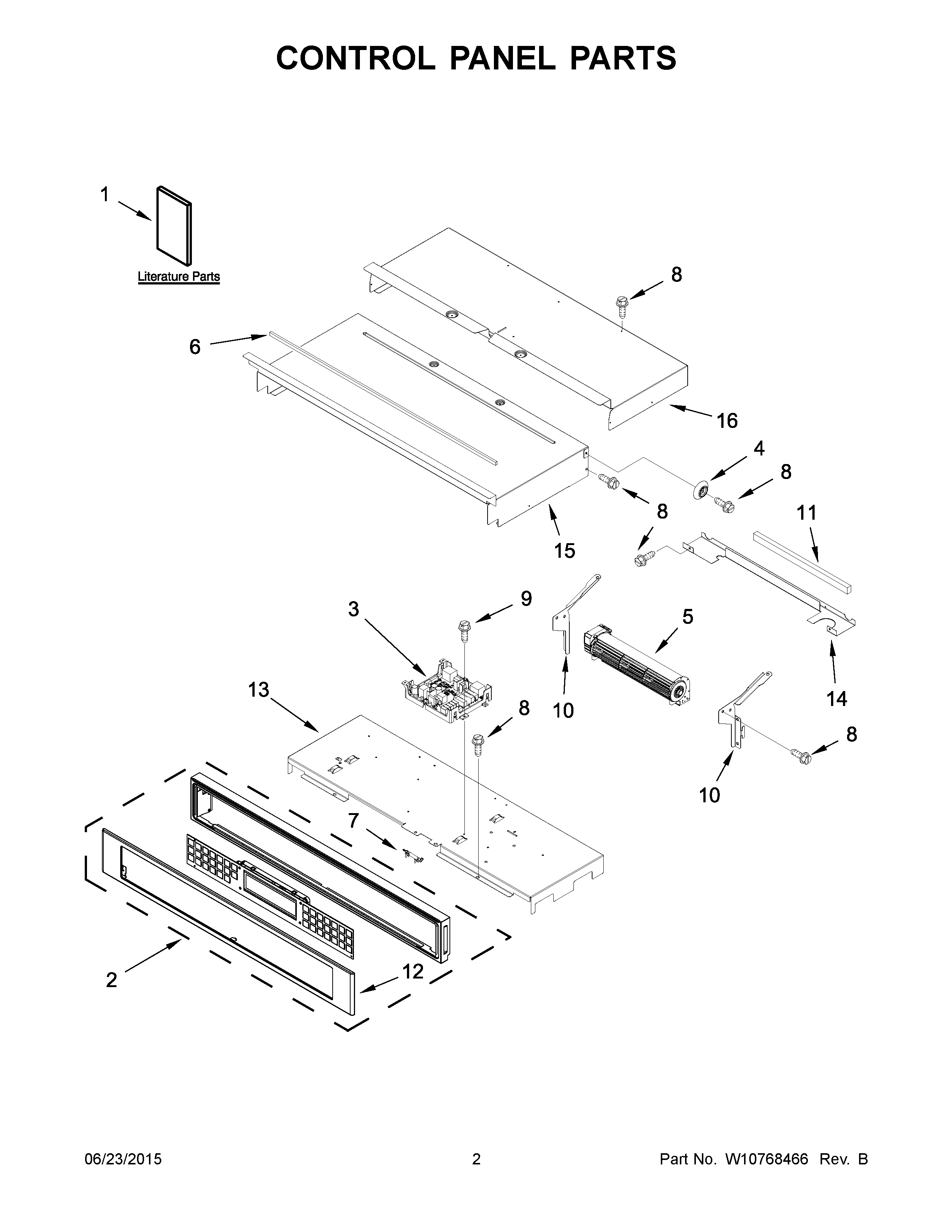

KOSE500EBS00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W10632451 Whirlpool Wire Harness
NI	W10573327 Whirlpool Wire Harness
NI	W11157218 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	4452400 Whirlpool Microwave Wire Harness
NI	W11699910 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
2C	W10697966 Whirlpool Control Panel
2B	W10588714 Whirlpool Control Panel
2A	W10588716 Whirlpool Control Panel
2	W10916750 Whirlpool Membrane Switch
3	W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5	W11245567 Whirlpool Blower Assembly
6	WPW10657548 Whirlpool Foam Seal
7	WPW10545255 Whirlpool Thermal Fuse
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	W10588744 Whirlpool Control Panel
12C	W10776407 Whirlpool Control Panel
12B	W10588740 Whirlpool Control Panel
12A	PANL-CNTRL
13	TRAY, ELECTRONIC
14	W10655465 Whirlpool Mounting Bracket
15	W10318192 Whirlpool Cabinet Top
16	W10904156 Whirlpool Cabinet Top
