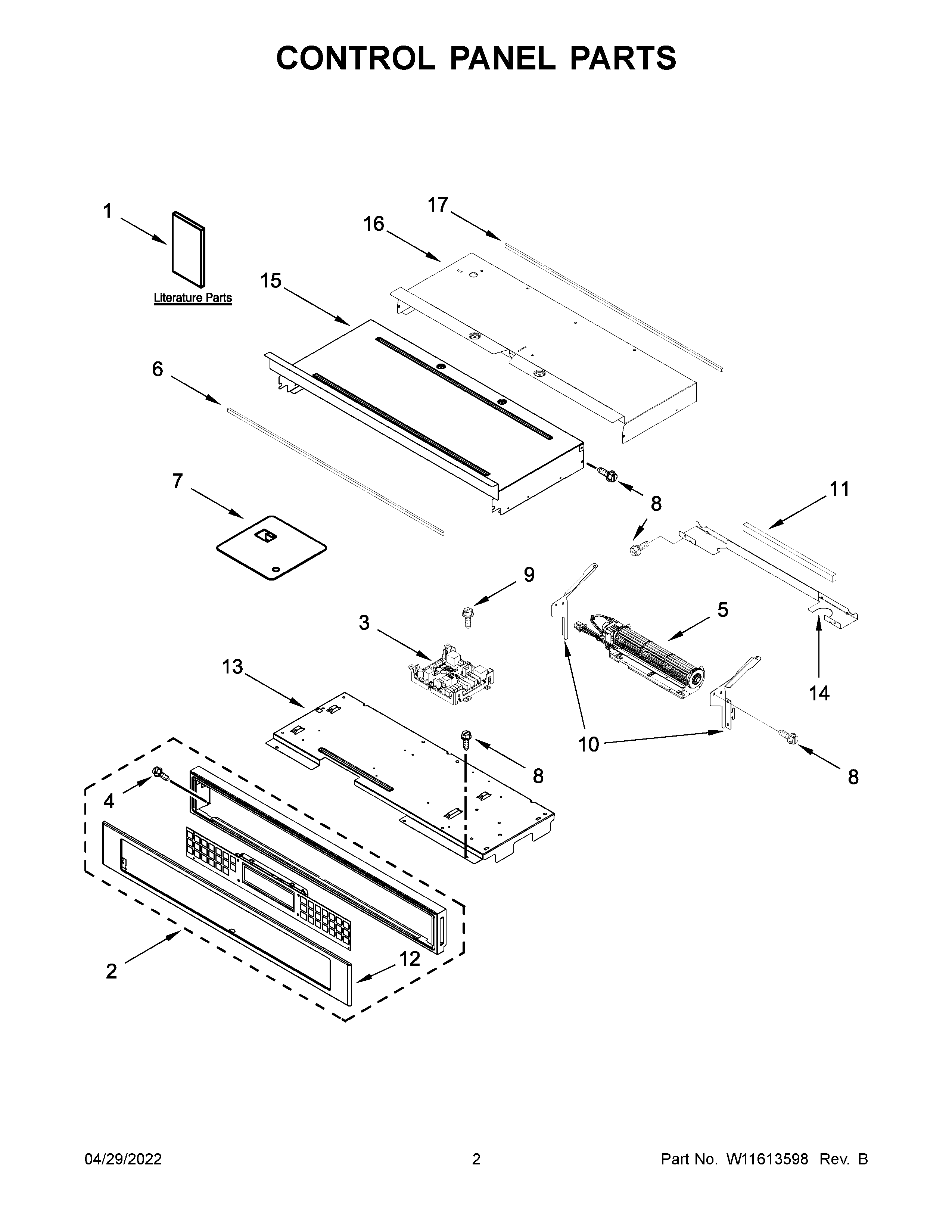

KOSE500ESS20 02 – CONTROL PANEL PARTS

KOSE500ESS20 02 – CONTROL PANEL PARTS

Written by

in

KOSE500ESS20 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11699910 Whirlpool Wire Harness
NIW10487999 Whirlpool Clip
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIW11727826 Whirlpool Wire Harness
NISTRAP, LEAD GROUND
NIBAG, HARDWARE
NIW11256622 Whirlpool Wire Harness
NIHARNS-WIRE
NIW10655464 Whirlpool Bracket
1OWNER'S MANUAL
1AQUICK START GUIDE
1BWIRING DIAGRAM
2BW11600650 Whirlpool Control Panel
2W11600652 Whirlpool Control Panel
2AW11600651 Whirlpool Oven Control Panel
3W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core
4SCREW (BLACK)
5BLOWER
6GASKET, RUBBER
7COVER, WIFI
8SCREW
9SCREW
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12PANL-CNTRL
12AW10588740 Whirlpool Control Panel
12BW10776407 Whirlpool Control Panel
13TRAY, ELECTRONIC
14DIVIDER, CHASSIS BACK
15COVER, 30 IN CHASSIS TOP FRONT
16COVER, 30 IN CHASSIS TOP BACK
17W10728475 Whirlpool Foam Seal
