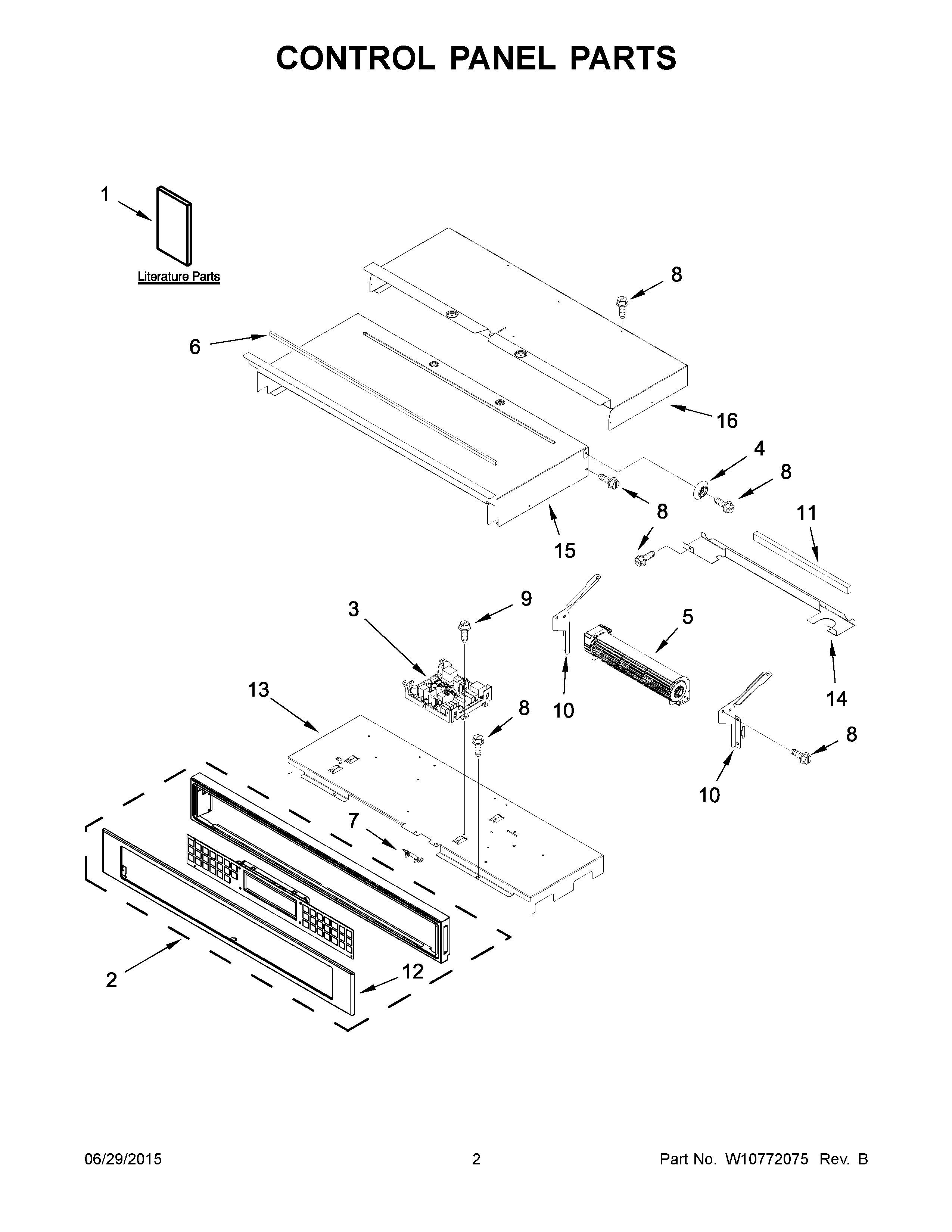

KOSE507EBL00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	4452400 Whirlpool Microwave Wire Harness
NI	16515 Whirlpool Clip
NI	W11157218 Whirlpool Wire Harness
NI	W11699910 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10632451 Whirlpool Wire Harness
NI	W10573327 Whirlpool Wire Harness
1A	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
1	GUIDE, USE & CARE
2B	W10588712 Whirlpool Control Panel
2	W11093250 Whirlpool Oven Control Panel
2A	W10588715 Whirlpool Control Panel
3	W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5	W11245567 Whirlpool Blower Assembly
6	GASKET, RUBBER
7	WPW10545255 Whirlpool Thermal Fuse
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12B	W10588741 Whirlpool Control Panel
12A	W10588747 Whirlpool Control Panel
12	W10588745 Whirlpool Control Panel
13	TRAY, ELECTRONIC
14	W10655465 Whirlpool Mounting Bracket
15	W10318193 Whirlpool Cabinet Top
16	CHASSIS, COVER TOP BACK 27"
