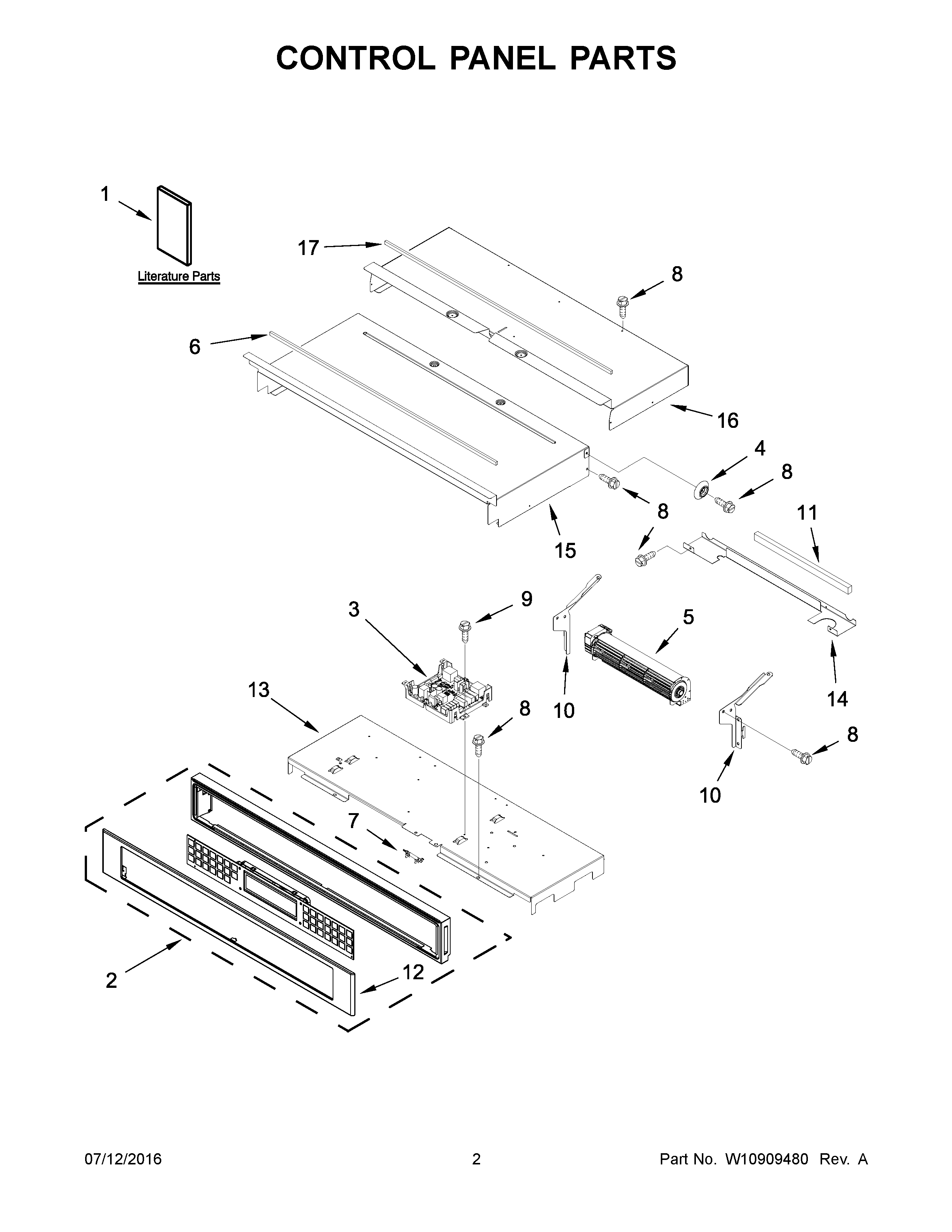

KOSE507EBS01 02 – CONTROL PANEL PARTS

KOSE507EBS01 02 – CONTROL PANEL PARTS

Written by

in

KOSE507EBS01 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11699910 Whirlpool Wire Harness
NI4452400 Whirlpool Microwave Wire Harness
NIW11132989 Whirlpool Wire Harness
NIW10655464 Whirlpool Bracket
NIW10487999 Whirlpool Clip
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIW11157218 Whirlpool Wire Harness
NIW10632451 Whirlpool Wire Harness
1GUIDE, USE & CARE
1CSHEET, TECH
1AINSTRUCTIONS, INSTALLATION (BLACK STAINLESS MODELS ONLY)
1BINSTRUCTIONS, UNDERCOUNTER INSTALL
2ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK STAINLESS)
3W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4W10618105 Whirlpool Spacer
5W11245567 Whirlpool Blower Assembly
6GASKET, RUBBER
7WPW10545255 Whirlpool Thermal Fuse
8SCREW
9SCREW
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12W10909789 Whirlpool Control Panel
13TRAY, ELECTRONIC
14W10655465 Whirlpool Mounting Bracket
15W10318193 Whirlpool Cabinet Top
16CHASSIS, COVER TOP BACK 27"
17W10728475 Whirlpool Foam Seal
