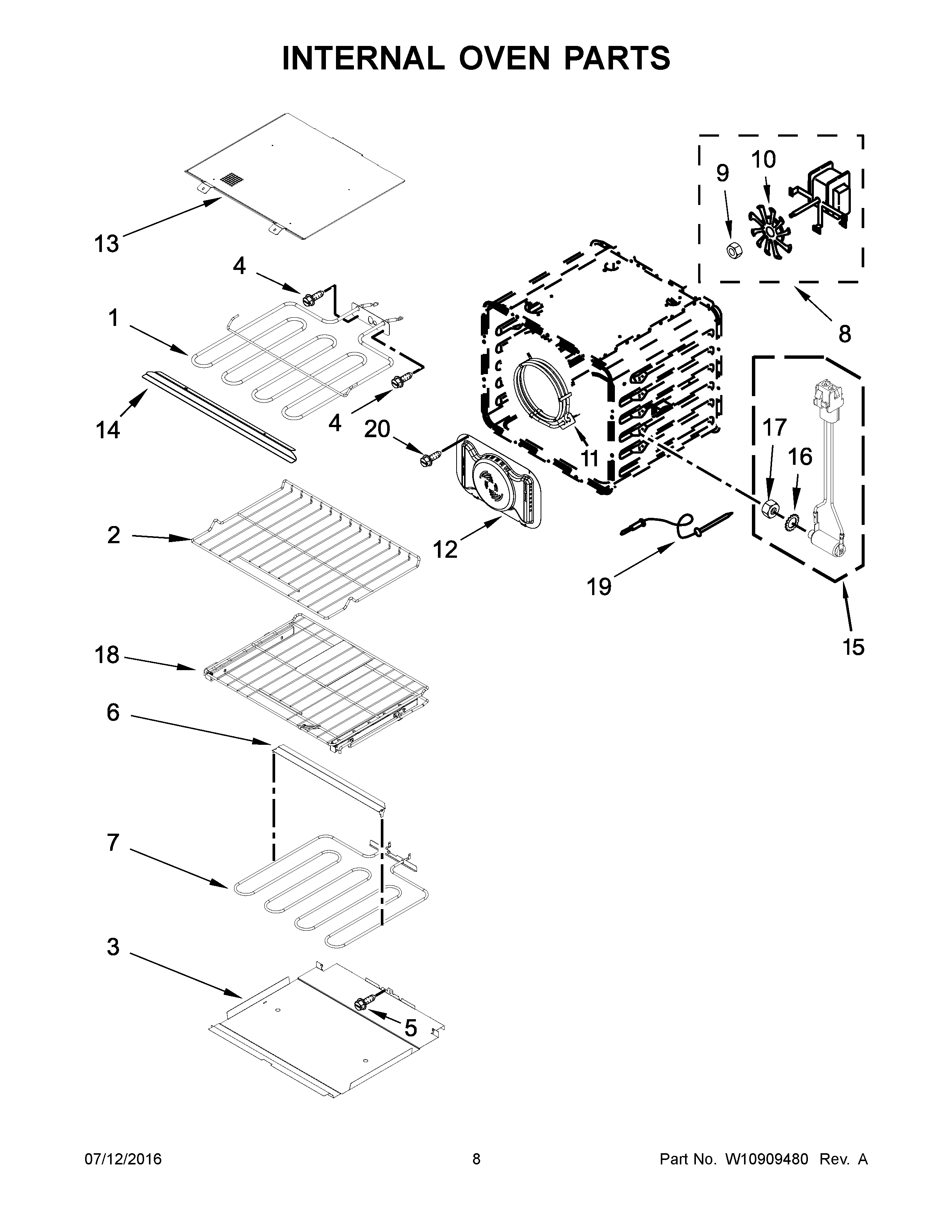

KOSE507EBS01 05 – INTERNAL OVEN PARTS

KOSE507EBS01 05 – INTERNAL OVEN PARTS

Written by

in

KOSE507EBS01 05 – INTERNAL OVEN PARTS

Products

PositionProduct
1W10804429 Whirlpool Broil Element
2WPW10554529 Whirlpool Oven Rack
3W10318198 Whirlpool Bake Tray
4SCREW
5SCREW
6W10282957 Whirlpool Bracket Support
7BAKE ELEMENT
8W10860984 Whirlpool Fan Motor
9W10794042 Whirlpool Nut
10W10819914 Whirlpool Convection Fan
11W11678579 Whirlpool Element
12W10725944 Whirlpool Convection Baffle
13W11290999 Whirlpool Shield Heat
14W10588738 Whirlpool Heat Shield
15W11220388 Whirlpool Jack Probe
16WP9755547 Whirlpool Lockwasher
17WP9755546 Whirlpool Locknut
19WP9755542 Whirlpool Oven Meat Probe
20SCREW
