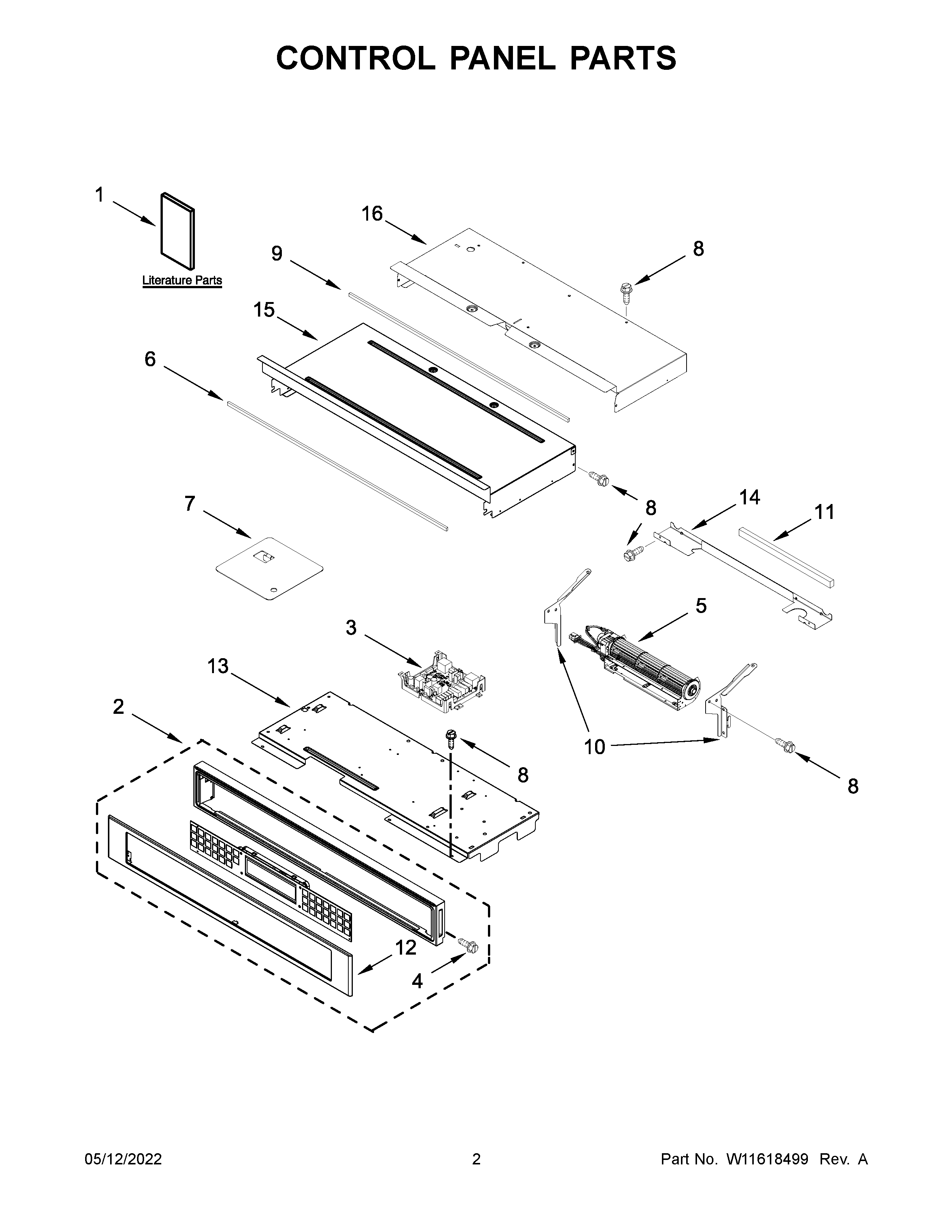

KOSE507EBS20 02 – CONTROL PANEL PARTSadmin2025-04-26T12:12:12+00:00KOSE507EBS20 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| NI | W11727826 Whirlpool Wire Harness |
| NI | W10655464 Whirlpool Bracket |
| NI | W10487999 Whirlpool Clip |
| NI | 4450800 Whirlpool Oven Screw |
| NI | 4448664 Whirlpool Oven Mounting Bracket |
| NI | CABINET (NOT A SERVICEABLE PART) |
| NI | STRAP, LEAD GROUND |
| NI | BAG, HARDWARE |
| NI | W11256622 Whirlpool Wire Harness |
| NI | HARNS-WIRE |
| NI | W11699910 Whirlpool Wire Harness |
| 1 | OWNER'S MANUAL |
| 1A | QUICK START GUIDE |
| 1B | WIRING DIAGRAM |
| 2 | ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (WHITE) |
| 2A | W11600654 Whirlpool Control Panel |
| 2B | ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK STAINLESS) |
| 3 | W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core |
| 4 | SCREW (BLACK) |
| 5 | BLOWER |
| 6 | GASKET, RUBBER (652MM) |
| 7 | COVER, WIFI |
| 8 | SCREW |
| 9 | W10728475 Whirlpool Foam Seal |
| 10A | W10655462 Whirlpool Mounting Bracket |
| 10 | W10655463 Whirlpool Bracket Mounting |
| 11 | W10491987 Whirlpool Foam Seal |
| 12B | W10909789 Whirlpool Control Panel |
| 12A | W10588741 Whirlpool Control Panel |
| 12 | W10588747 Whirlpool Control Panel |
| 13 | TRAY, ELECTRONIC |
| 14 | DIVIDER, CHASSIS BACK |
| 15 | COVER, TOP FRONT 27 IN CHASSIS |
| 16 | COVER, TOP BACK 27 IN CHASSIS |
