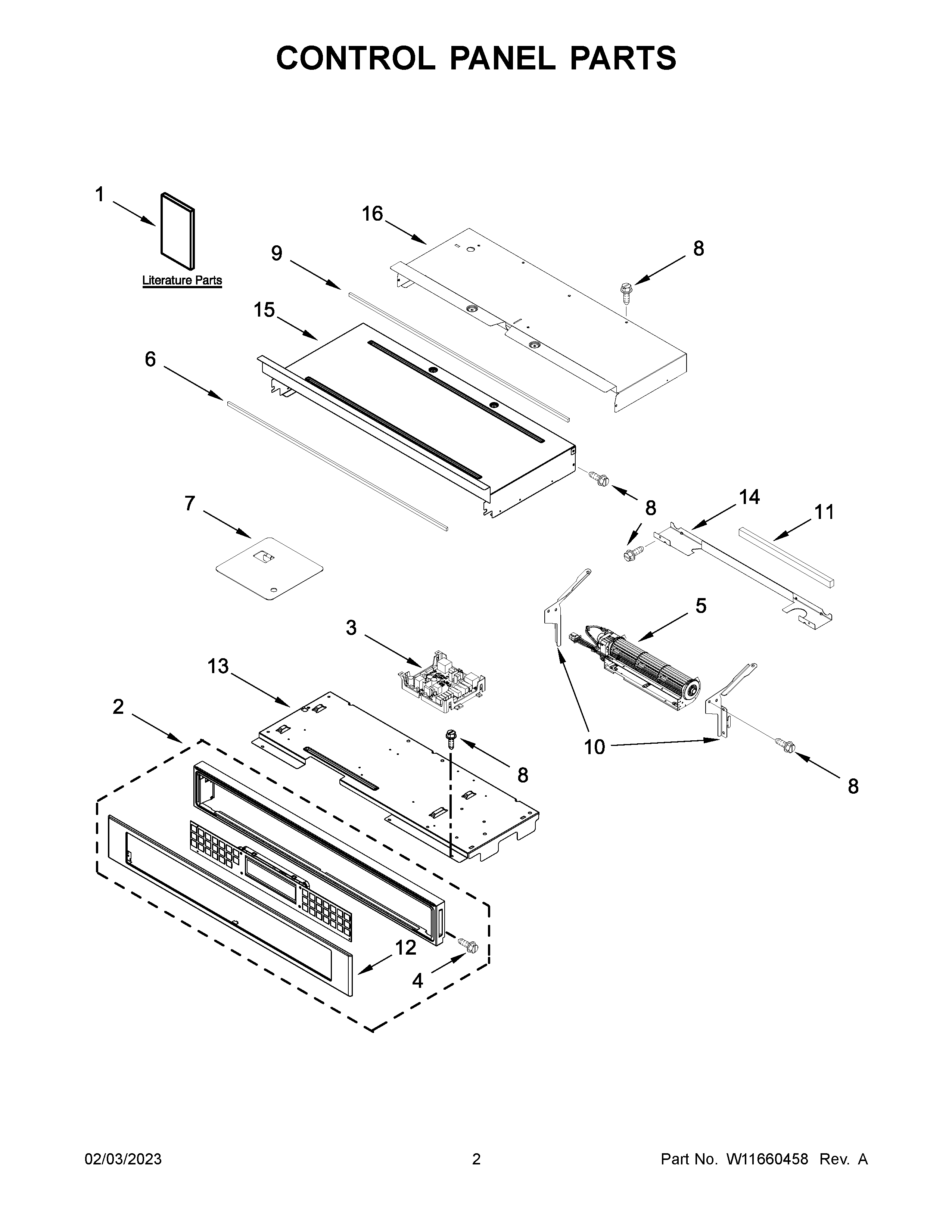

KOSE507EBS21 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11699910 Whirlpool Wire Harness
NI	W10487999 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11727826 Whirlpool Wire Harness
NI	STRAP, LEAD GROUND
NI	BAG, HARDWARE
NI	W11256622 Whirlpool Wire Harness
NI	HARNS-WIRE
NI	W10655464 Whirlpool Bracket
1	OWNER'S MANUAL
1A	QUICK START GUIDE
1B	WIRING DIAGRAM
2A	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK STAINLESS)
2	W11600654 Whirlpool Control Panel
3	W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core
4	SCREW (BLACK)
5	BLOWER
6	GASKET, RUBBER (652MM)
7	COVER, WIFI
8	SCREW
9	W10728475 Whirlpool Foam Seal
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12	W10588741 Whirlpool Control Panel
12A	W10909789 Whirlpool Control Panel
13	TRAY, ELECTRONIC
14	DIVIDER, CHASSIS BACK
15	COVER, TOP FRONT 27 IN CHASSIS
16	COVER, TOP BACK 27 IN CHASSIS
