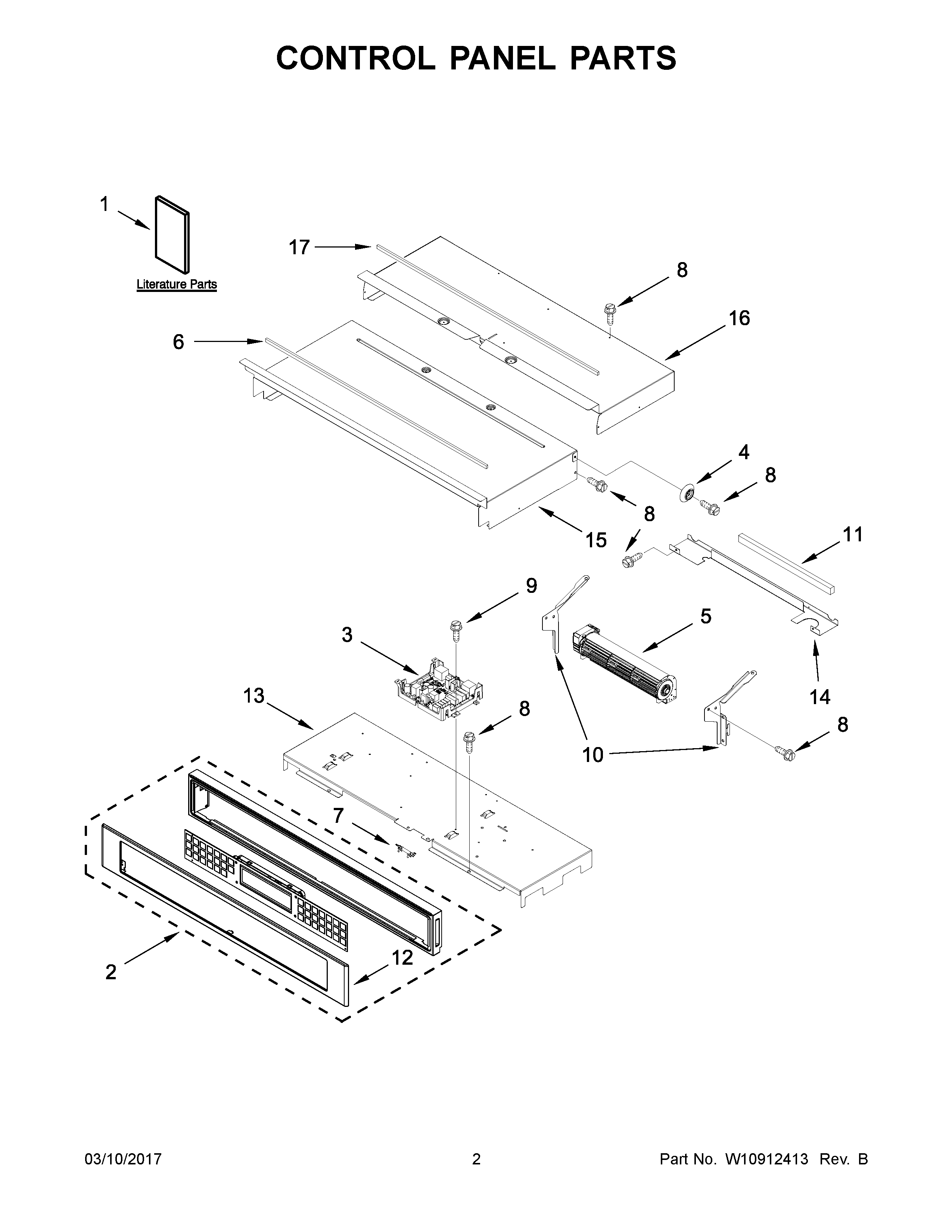

KOSE507ESS02 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11132989 Whirlpool Wire Harness
NI	4452400 Whirlpool Microwave Wire Harness
NI	W11136132 Whirlpool Wire Harness
NI	W11699910 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	W10487999 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11157218 Whirlpool Wire Harness
1D	SHEET, TECH
1B	INSTRUCTIONS, INSTALLATION (BLACK STAINLESS MODELS ONLY)
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
1C	INSTRUCTIONS, UNDERCOUNTER INSTALL
2B	W11093248 Whirlpool Control Panel
2A	W10916755 Whirlpool Membrane Switch
2	W11093250 Whirlpool Oven Control Panel
2C	W10916752 Whirlpool Control Panel
3	W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5	W11245567 Whirlpool Blower Assembly
6	GASKET, RUBBER
7	W11204568 Whirlpool Thermal Fuse
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12B	W10588741 Whirlpool Control Panel
12	W10588745 Whirlpool Control Panel
12C	W10909789 Whirlpool Control Panel
12A	W10588747 Whirlpool Control Panel
13	TRAY, ELECTRONIC
14	W10655465 Whirlpool Mounting Bracket
15	W10318193 Whirlpool Cabinet Top
16	CHASSIS, COVER TOP BACK 27"
17	W10728475 Whirlpool Foam Seal
