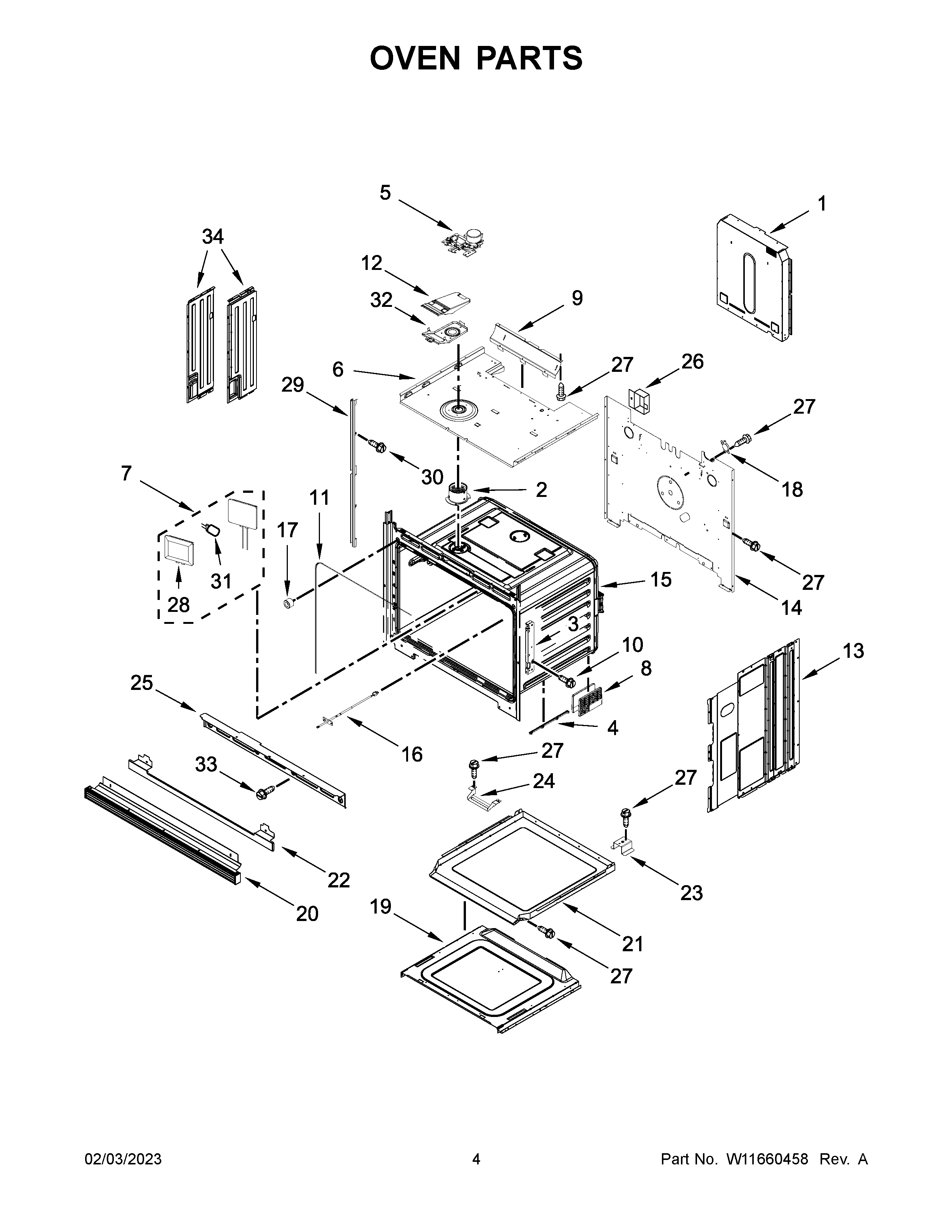

KOSE507ESS21 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	INSULATION, WRAP
NI	CABINET (NOT A SERVICEABLE PART)
1	W11165250 Whirlpool Rear Cover
2	W11240525 Whirlpool Vent Tube
3	HINGE-RECV
4	W11598116 Whirlpool Spacer
5	W11686858 Whirlpool Door Latch
6	TOP, CHASSIS
7	W11292252 Whirlpool Oven Light
8	W11598170 Whirlpool Level Foot
9	W10904163 Whirlpool Vent Deflector
10	WPW10254050 Whirlpool Screw
11	W11608109 Whirlpool Gasket
12	COVER, VENT EXHAUST
13	W11165274 Whirlpool Side Panel
16	W11598120 Whirlpool Thermostat
17	W11598125 Whirlpool Bumper
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	BASE, CHASSIS
20	W11598189 Whirlpool Vent
20A	W11369893 Whirlpool Heat Deflector
21	COVR-ACESS
22	W11712432 Whirlpool Trim Assembly
23	SUPPORT, AIR CHANNEL
24	SPACER, CHASSIS BOTTOM DUCT
25	W11334858 Whirlpool Vent Exhaust
26	8285593 Whirlpool Oven Wire Cover
27	SCREW
28	WPW10519866 Whirlpool Light
29	W11235463 Whirlpool Mounting Rail
29A	W11235462 Whirlpool Mounting Rail
30	W11602623 Whirlpool Screw
31	WPW10472384 Whirlpool Light Bulb
32	BASE, VENT EXHAUST
33	WPY706189 Whirlpool Stove Screw
34	W11598150 Whirlpool Side Cover
34A	W11598151 Whirlpool Side Cover
