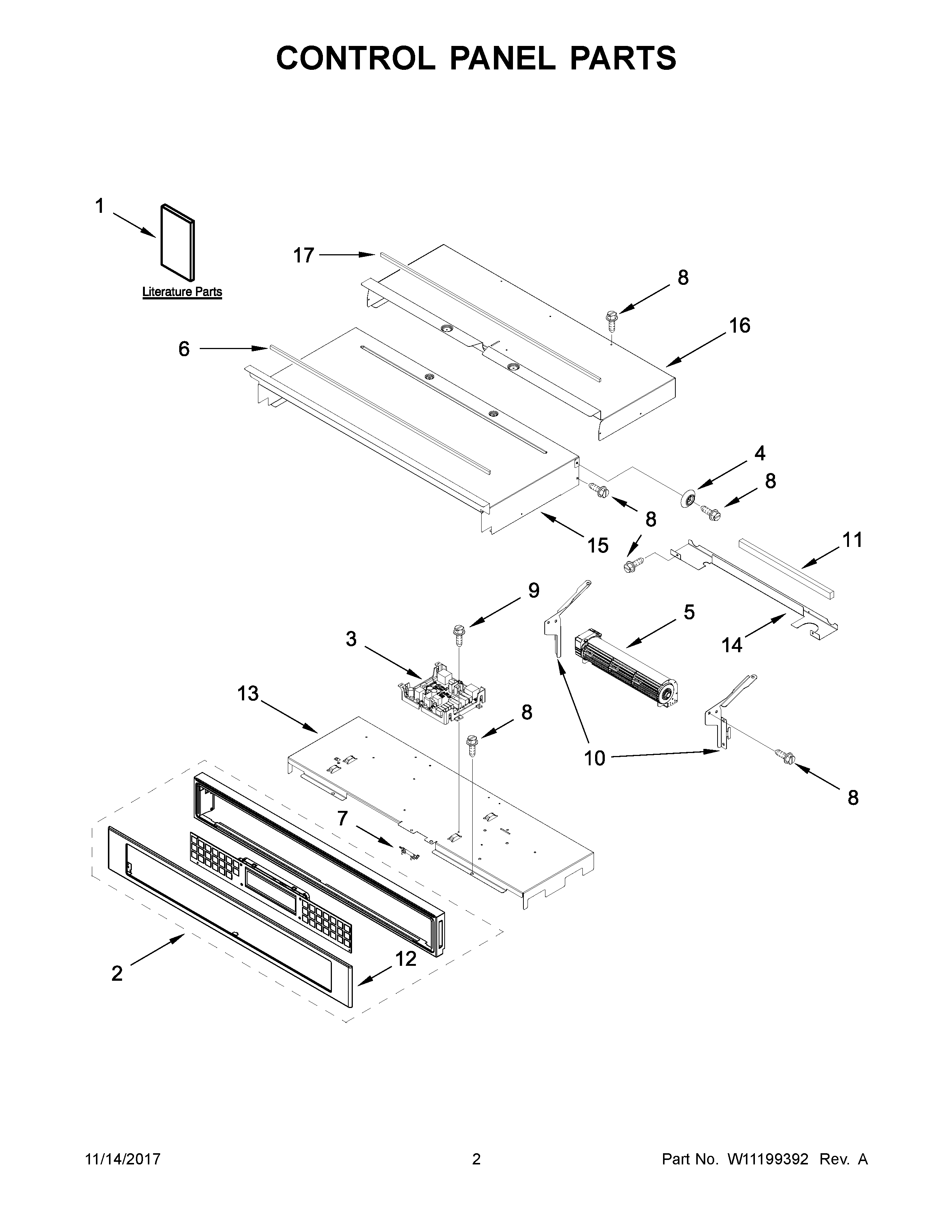

KOSE507EWH03 02 – CONTROL PANEL PARTS

KOSE507EWH03 02 – CONTROL PANEL PARTS

Written by

in

KOSE507EWH03 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11132989 Whirlpool Wire Harness
NIW10760039 Whirlpool Hardware
NI4452400 Whirlpool Microwave Wire Harness
NIW11157218 Whirlpool Wire Harness
NIW11699910 Whirlpool Wire Harness
NIW10655464 Whirlpool Bracket
NIW10487999 Whirlpool Clip
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIHARNESS, MAIN
1BINSTRUCTIONS, INSTALLATION (BLACK STAINLESS MODELS ONLY)
1DSHEET, TECH
1GUIDE, USE & CARE
1AINSTRUCTIONS, INSTALLATION
1CINSTRUCTIONS, UNDERCOUNTER INSTALL
2BW11093248 Whirlpool Control Panel
2AW10916755 Whirlpool Membrane Switch
2W11093250 Whirlpool Oven Control Panel
2CW10916752 Whirlpool Control Panel
3W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4W10618105 Whirlpool Spacer
5W11245567 Whirlpool Blower Assembly
6GASKET, RUBBER
7W11204568 Whirlpool Thermal Fuse
8SCREW
9SCREW
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12BW10588741 Whirlpool Control Panel
12W10588745 Whirlpool Control Panel
12CW10909789 Whirlpool Control Panel
12AW10588747 Whirlpool Control Panel
13TRAY, ELECTRONIC
14W10655465 Whirlpool Mounting Bracket
15W10318193 Whirlpool Cabinet Top
16CHASSIS, COVER TOP BACK 27"
17W10728475 Whirlpool Foam Seal
