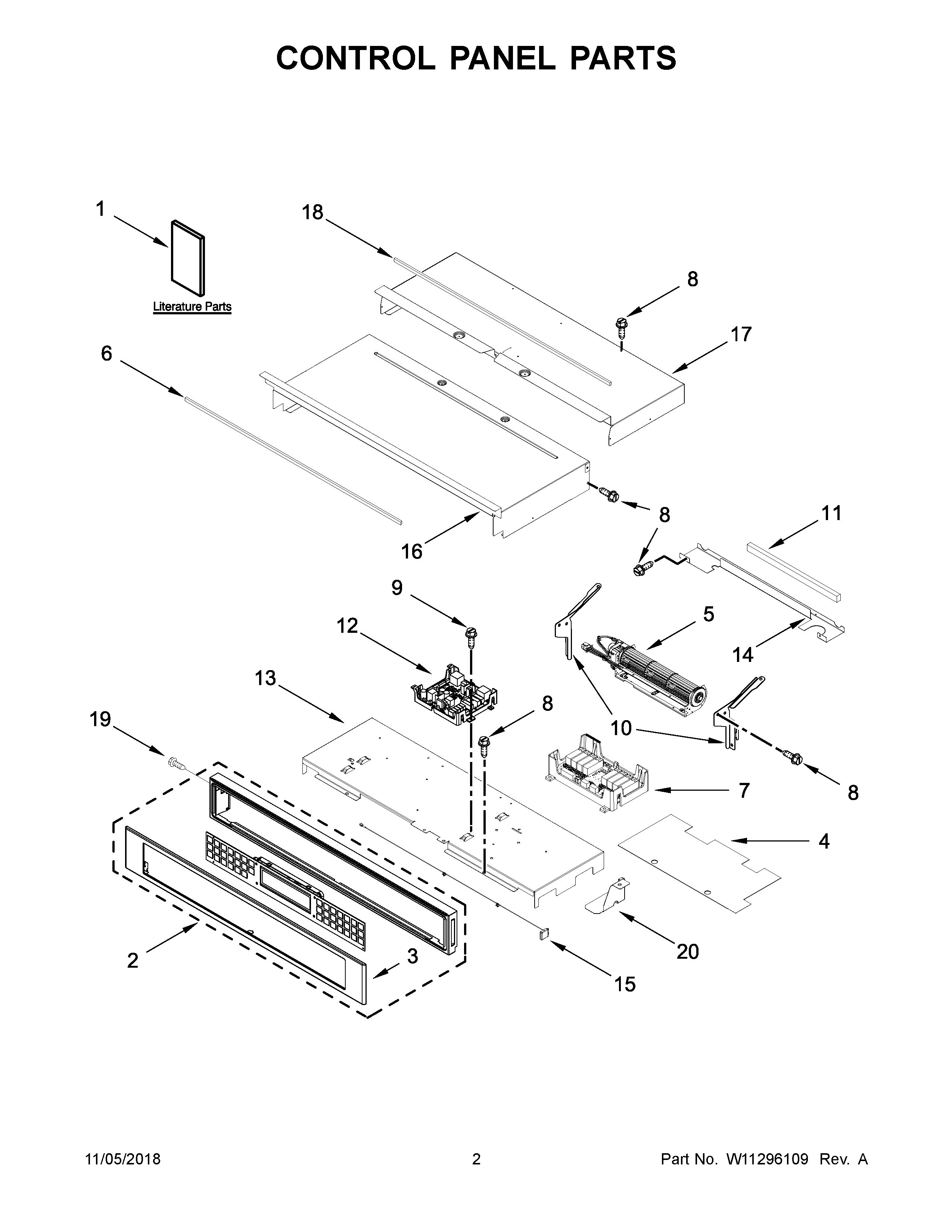

KOSE900HBS00 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11219538 Whirlpool Wire Harness
NIHARNESS, SIGNAL
NIHARNESS, MAIN
NIWPW10339879 Whirlpool Wire Tie
NIW11699910 Whirlpool Wire Harness
NIW10655464 Whirlpool Bracket
NIW10487999 Whirlpool Clip
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIW10760039 Whirlpool Hardware
NIW11233570 Whirlpool Wire Harness
1GUIDE, USE & CARE
1DGUIDE, INTERNET CONNECTIVITY
1AINSTRUCTIONS, INSTALLATION
1CDIAGRAM, WIRING
1BINSTRUCTIONS, UNDERCOUNTER INSTALL
2AW11400291 Whirlpool Console + Core
2W11400283 Whirlpool Console + Core
3W10588740 Whirlpool Control Panel
3AW10776407 Whirlpool Control Panel
4PAD, INSULATOR
5W11248652 Whirlpool Blower
6GASKET, RUBBER
7W11294389-includeCORE Whirlpool W11294389 Washer Electronic Control Board + Core
8SCREW
9SCREW
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10491987 Whirlpool Foam Seal
12W11294388-includeCORE Whirlpool W11294388 Refrigerator Electronic Control Board
13TRAY, ELECTRONIC
14W10655465 Whirlpool Mounting Bracket
15W11537624 Whirlpool Antenna Assembly
16W10318192 Whirlpool Cabinet Top
17W10904156 Whirlpool Cabinet Top
18W10728475 Whirlpool Foam Seal
19WPY706189 Whirlpool Stove Screw
20SUPPORT, ELECTRONIC TRAY
