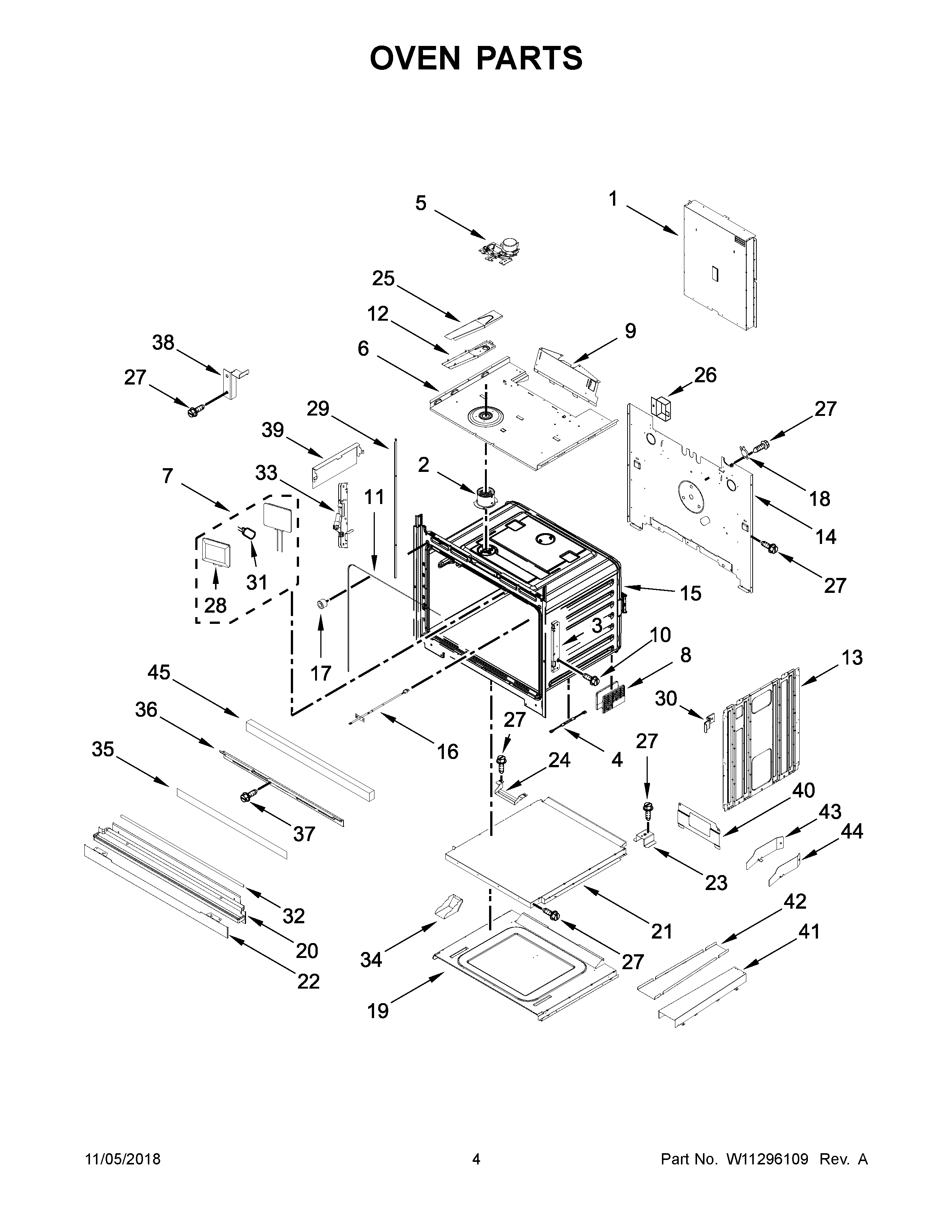

KOSE900HBS00 03 – OVEN PARTSadmin2025-04-26T12:12:00+00:00KOSE900HBS00 03 – OVEN PARTS
Products
| Position | Product |
|---|
| NI | W11688731 Whirlpool Insulation |
| NI | CABINET (NOT A SERVICEABLE PART) |
| NI | W11685004 Whirlpool Insulation |
| NI | W11292324 Whirlpool Insulation |
| 1 | W10318196 Whirlpool BA Chassis |
| 2 | W11240525 Whirlpool Vent Tube |
| 3 | W11613828 Whirlpool Hinge Receptacle |
| 4 | W11292538 Whirlpool Spacer |
| 5 | W10883049 Whirlpool Door Latch |
| 6 | TOP, CHASSIS |
| 7 | W11292252 Whirlpool Oven Light |
| 8 | FOOT, BASE |
| 9 | W10904163 Whirlpool Vent Deflector |
| 10 | WPW10254050 Whirlpool Screw |
| 11 | GASKET |
| 12 | BASE, VENT EXHAUST |
| 13A | SIDE, CHASSIS |
| 13 | PANEL-SIDE |
| 14 | BACK, CHASSIS |
| 16 | W11290976 Whirlpool Thermostat |
| 17 | WPW10351278 Whirlpool Bumper |
| 18 | WP4449751 Whirlpool Range Oven Thermostat Fix |
| 19 | W11238787 Whirlpool Manifold Pipe |
| 20 | W11348369 Whirlpool Oven Vent Assembly |
| 20A | W11348370 Whirlpool Oven Vent |
| 21 | CHASSIS, BOTTOM DUCT |
| 22 | WPW10327377 Whirlpool Trim Kit |
| 22A | WPW10351236 Whirlpool Trim |
| 23 | W10213759 Whirlpool Support |
| 24 | W10351308 Whirlpool Support Bracket |
| 25 | COVER, VENT EXHAUST |
| 26 | 8285593 Whirlpool Oven Wire Cover |
| 27 | SCREW |
| 28 | WPW10519866 Whirlpool Light |
| 29A | W10536160 Whirlpool Cover Assembly |
| 30 | SPACERS, FRONT |
| 31 | WPW10472384 Whirlpool Light Bulb |
| 32 | SPACER, CENTER |
| 33 | W11045086 Whirlpool Hinge Receptacle |
| 34 | DEFLECTOR, BACK DUCT |
| 35 | GASKET, RUBBER (652MM) |
| 36 | VENT, TOP 30`` |
| 37 | W11193480 Whirlpool Screw |
| 38A | W10863233 Whirlpool Bracket |
| 38 | W10863234 Whirlpool Bracket |
| 39 | SHIELD, SLOW CLOSE HINGE |
| 40 | ANGLE, BOTTOM DUCT CORNER (RH) |
| 41 | FLUE, TOP |
| 42 | FLUE, BOTTOM |
| 43 | ANGLE, BOTTOM DUCT CORNER (LH) |
