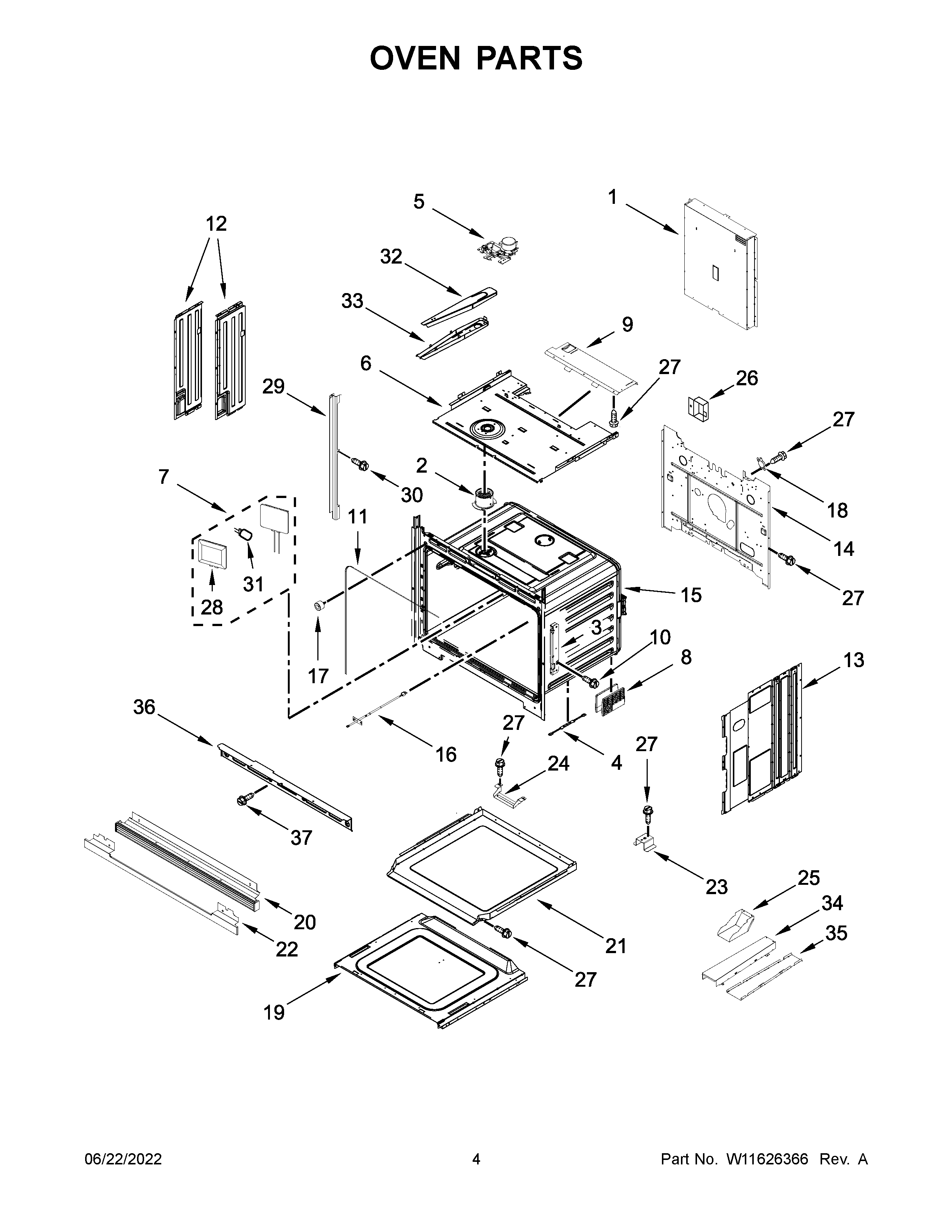

KOSE900HBS20 03 – OVEN PARTS

Products

PositionProduct
NIINSULATION, WRAP
NICABINET (NOT A SERVICEABLE PART)
NIINSULATION, CAVITY
1W11165250 Whirlpool Rear Cover
2W11240525 Whirlpool Vent Tube
3W11712405 Whirlpool Receiver Hinge
3AW11712406 Whirlpool Receiver Hinge
4W11598152 Whirlpool Spacer
5W11686858 Whirlpool Door Latch
6TOP, CHASSIS
7W11292252 Whirlpool Oven Light
8W11598170 Whirlpool Level Foot
9W10904163 Whirlpool Vent Deflector
10WPW10254050 Whirlpool Screw
11W11676903 Whirlpool Gasket
12AW11598151 Whirlpool Side Cover
12W11598150 Whirlpool Side Cover
13W11165274 Whirlpool Side Panel
14BACK, CHASSIS
16W11598120 Whirlpool Thermostat
17W11598125 Whirlpool Bumper
18WP4449751 Whirlpool Range Oven Thermostat Fix
19COVR-ACESS
20W11369892 Whirlpool Vent
20AASSEMBLY, BOTTOM VENT (BLACK STAINLESS)
21COVR-ACESS
22W11598135 Whirlpool Trim
23SUPPORT, AIR CHANNEL
24SPACER, CHASSIS BOTTOM DUCT
25DEFLECTOR, LOWER BACK EXHAUST
268285593 Whirlpool Oven Wire Cover
27SCREW
28WPW10519866 Whirlpool Light
29W11235463 Whirlpool Mounting Rail
29AW11235462 Whirlpool Mounting Rail
30W11602623 Whirlpool Screw
31WPW10472384 Whirlpool Light Bulb
32COVER, TOP BACK EXHAUST
33BASE, TOP BACK EXHAUST
34COVER, LOWER BACK EXHAUST
35BASE, LOWER BACK EXHAUST
36W11715951 Whirlpool Vent Trim
37WPY706189 Whirlpool Stove Screw
