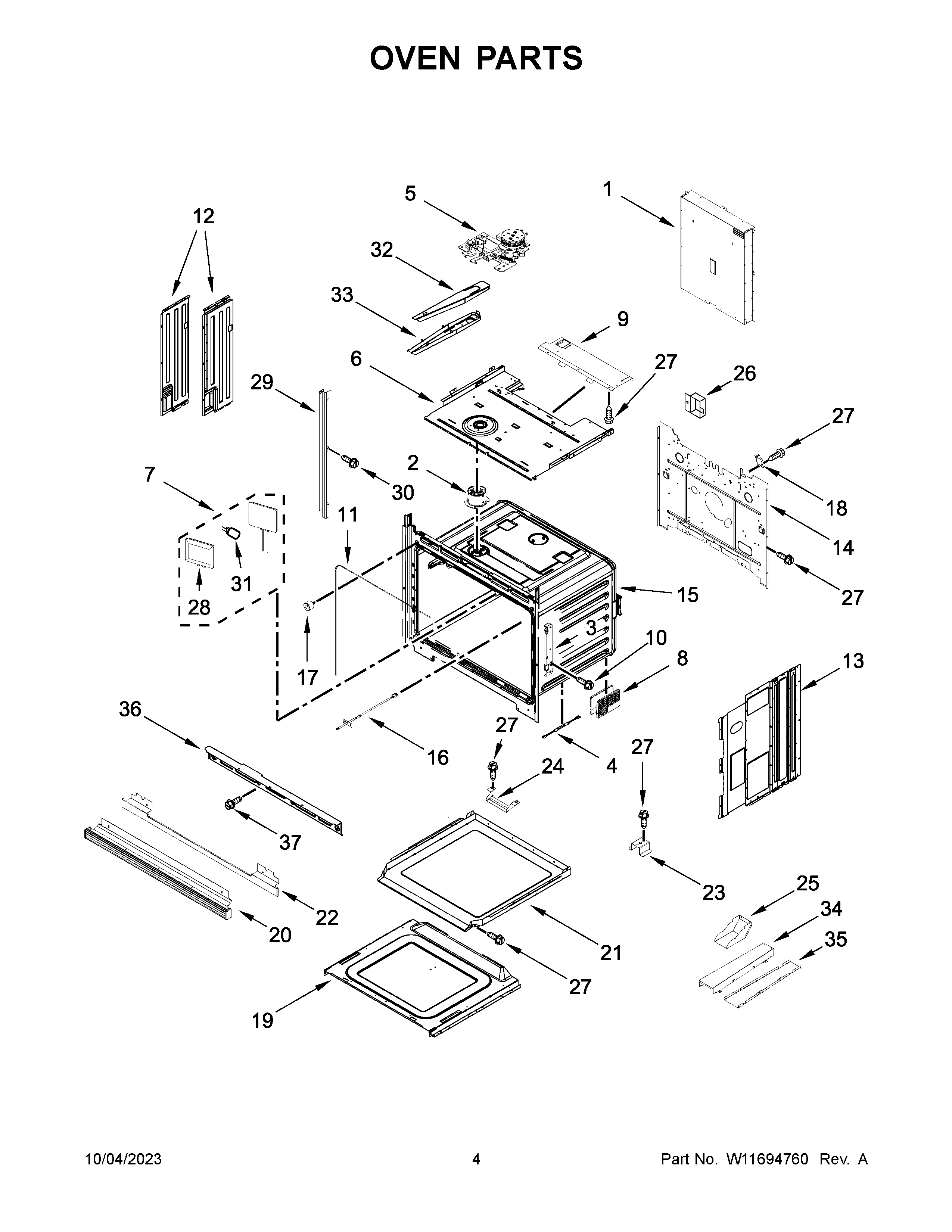

KOSE900HSS21 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	INSULATION, CAVITY
1	W11165250 Whirlpool Rear Cover
2	W11240525 Whirlpool Vent Tube
3	W11712405 Whirlpool Receiver Hinge
3A	W11712406 Whirlpool Receiver Hinge
4	W11598152 Whirlpool Spacer
5	W11686858 Whirlpool Door Latch
6	TOP, CHASSIS
7	W11292252 Whirlpool Oven Light
8	W11598170 Whirlpool Level Foot
9	W10904163 Whirlpool Vent Deflector
10	WPW10254050 Whirlpool Screw
11	W11692454 Whirlpool Gasket
12	W11598150 Whirlpool Side Cover
12A	W11598151 Whirlpool Side Cover
13	W11165274 Whirlpool Side Panel
14	BACK, CHASSIS
15	LINER, OVEN (NOT SERVICEABLE)
16	W11598120 Whirlpool Thermostat
17	W11598125 Whirlpool Bumper
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	COVR-ACESS
20A	ASSEMBLY, BOTTOM VENT (BLACK STAINLESS)
20	W11369892 Whirlpool Vent
21	COVR-ACESS
22	W11598135 Whirlpool Trim
23	SUPPORT, AIR CHANNEL
24	SPACER, CHASSIS BOTTOM DUCT
25	DEFLECTOR, LOWER BACK EXHAUST
26	8285593 Whirlpool Oven Wire Cover
27	SCREW
28	WPW10519866 Whirlpool Light
29A	W11235462 Whirlpool Mounting Rail
29	W11235463 Whirlpool Mounting Rail
30	W11602623 Whirlpool Screw
31	WPW10472384 Whirlpool Light Bulb
32	COVER, TOP BACK EXHAUST
33	BASE, TOP BACK EXHAUST
34	COVER, LOWER BACK EXHAUST
35	BASE, LOWER BACK EXHAUST
36	W11715951 Whirlpool Vent Trim
37	WPY706189 Whirlpool Stove Screw
