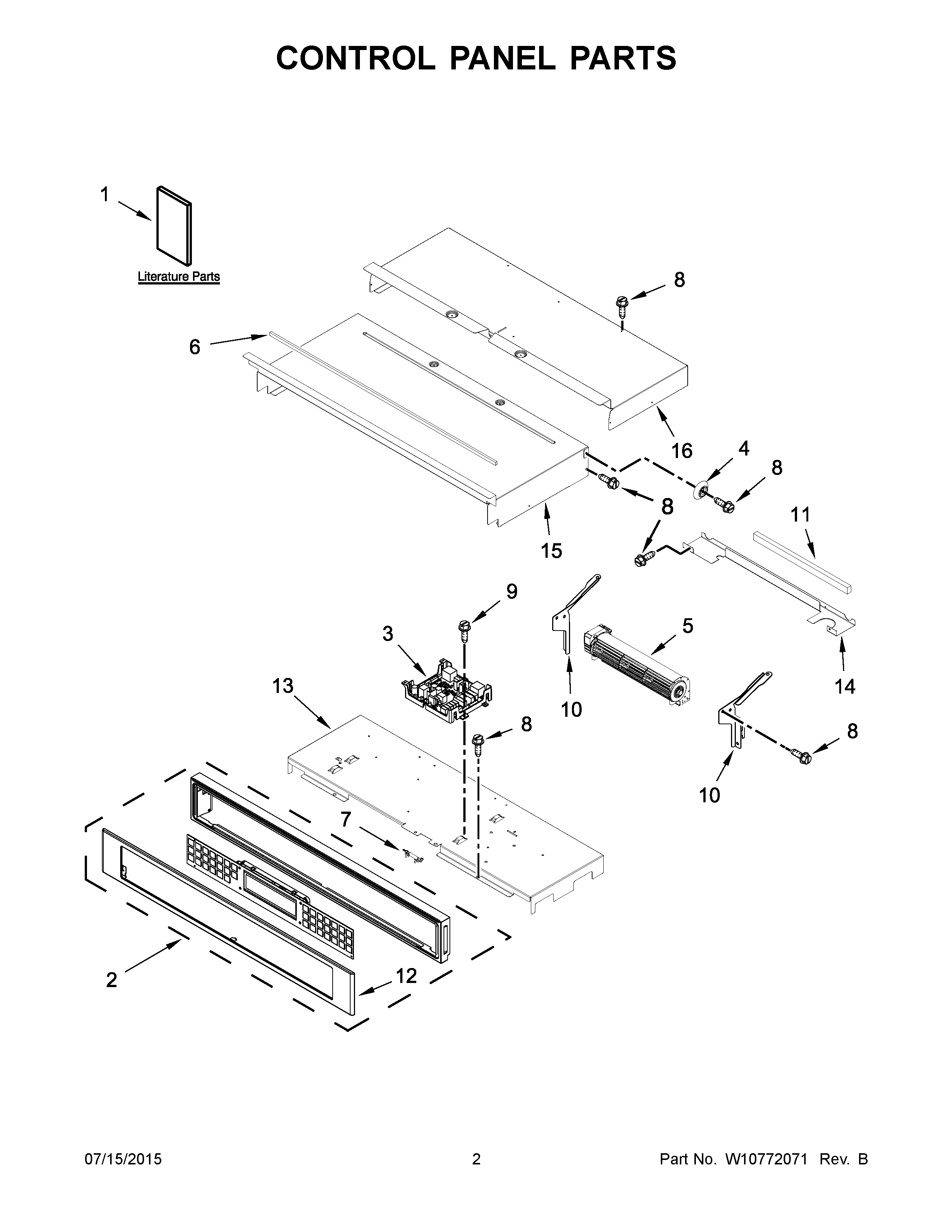

KOST100ESS00 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIHARNESS, SIGNAL
NI16515 Whirlpool Clip
NIW11699910 Whirlpool Wire Harness
NIW10655464 Whirlpool Bracket
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIW10573327 Whirlpool Wire Harness
NIW10632450 Whirlpool Wire Harness
NI4452400 Whirlpool Microwave Wire Harness
1GUIDE, USE & CARE
1AINSTRUCTIONS, INSTALLATION
1BSHEET, TECH
2W11087446 Whirlpool Console + Core
3W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4W10618105 Whirlpool Spacer
5W11245567 Whirlpool Blower Assembly
6WPW10657548 Whirlpool Foam Seal
7WPW10545291 Whirlpool Range Thermal Fuse
8SCREW
9SCREW
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10491987 Whirlpool Foam Seal
12W10588740 Whirlpool Control Panel
13TRAY, ELECTRONIC
14W10655465 Whirlpool Mounting Bracket
15W10318192 Whirlpool Cabinet Top
16W10904156 Whirlpool Cabinet Top
