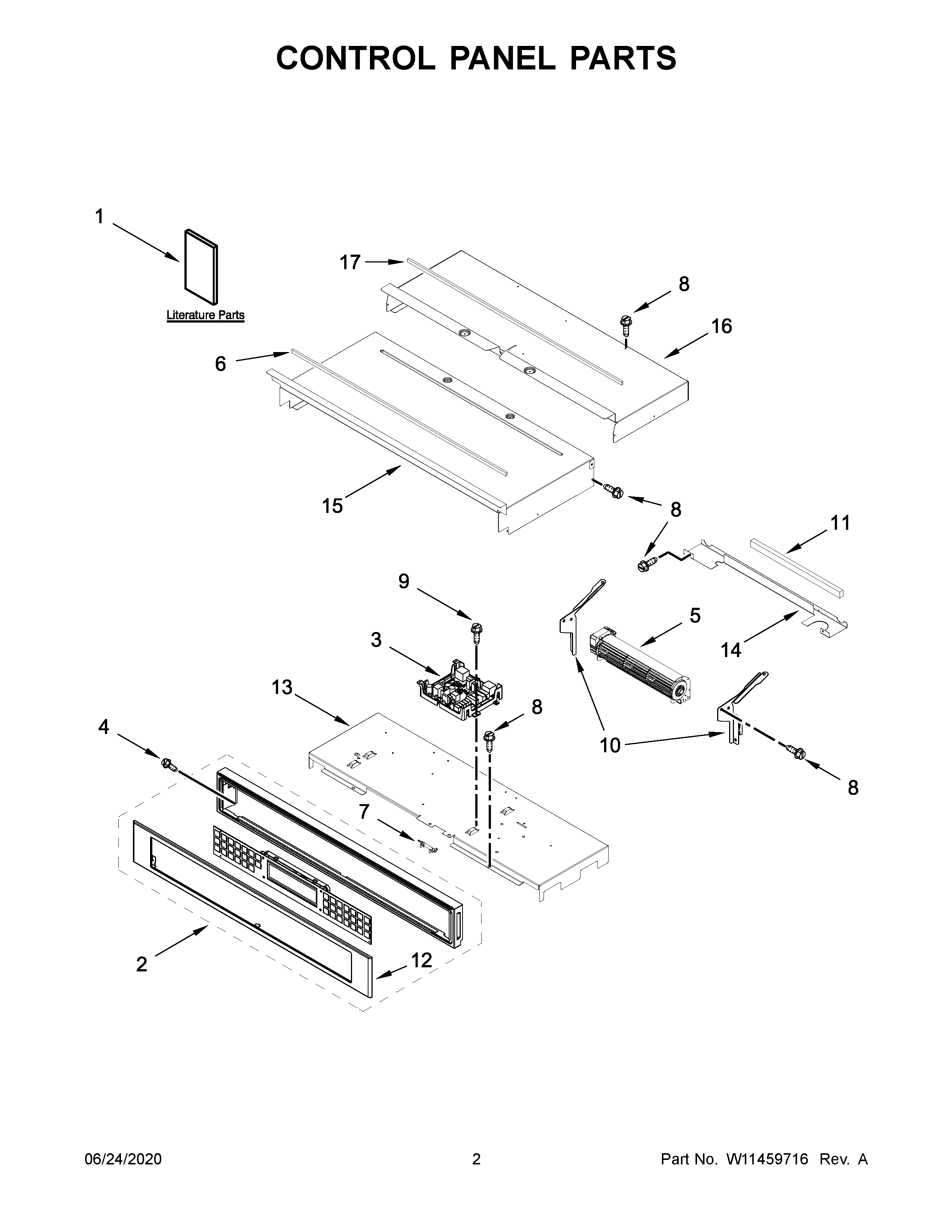

KOST100ESS04 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11136111 Whirlpool Wire Harness
NIHARNESS, SIGNAL
NIW11132989 Whirlpool Wire Harness
NIW10760039 Whirlpool Hardware
NISTRAP, LEAD GROUND
NIW11699910 Whirlpool Wire Harness
NIW10655464 Whirlpool Bracket
NIW10487999 Whirlpool Clip
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
1AINSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE
1BINSTRUCTIONS, UNDERCOUNTER INSTALL
1CSHEET, TECH
2W11087446 Whirlpool Console + Core
3W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4WPY706189 Whirlpool Stove Screw
5W11245567 Whirlpool Blower Assembly
6GASKET, RUBBER
7W11204568 Whirlpool Thermal Fuse
8SCREW
9SCREW
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12W10588740 Whirlpool Control Panel
13TRAY, ELECTRONIC
14W10655465 Whirlpool Mounting Bracket
15W10318192 Whirlpool Cabinet Top
16W10904156 Whirlpool Cabinet Top
17W10728475 Whirlpool Foam Seal
