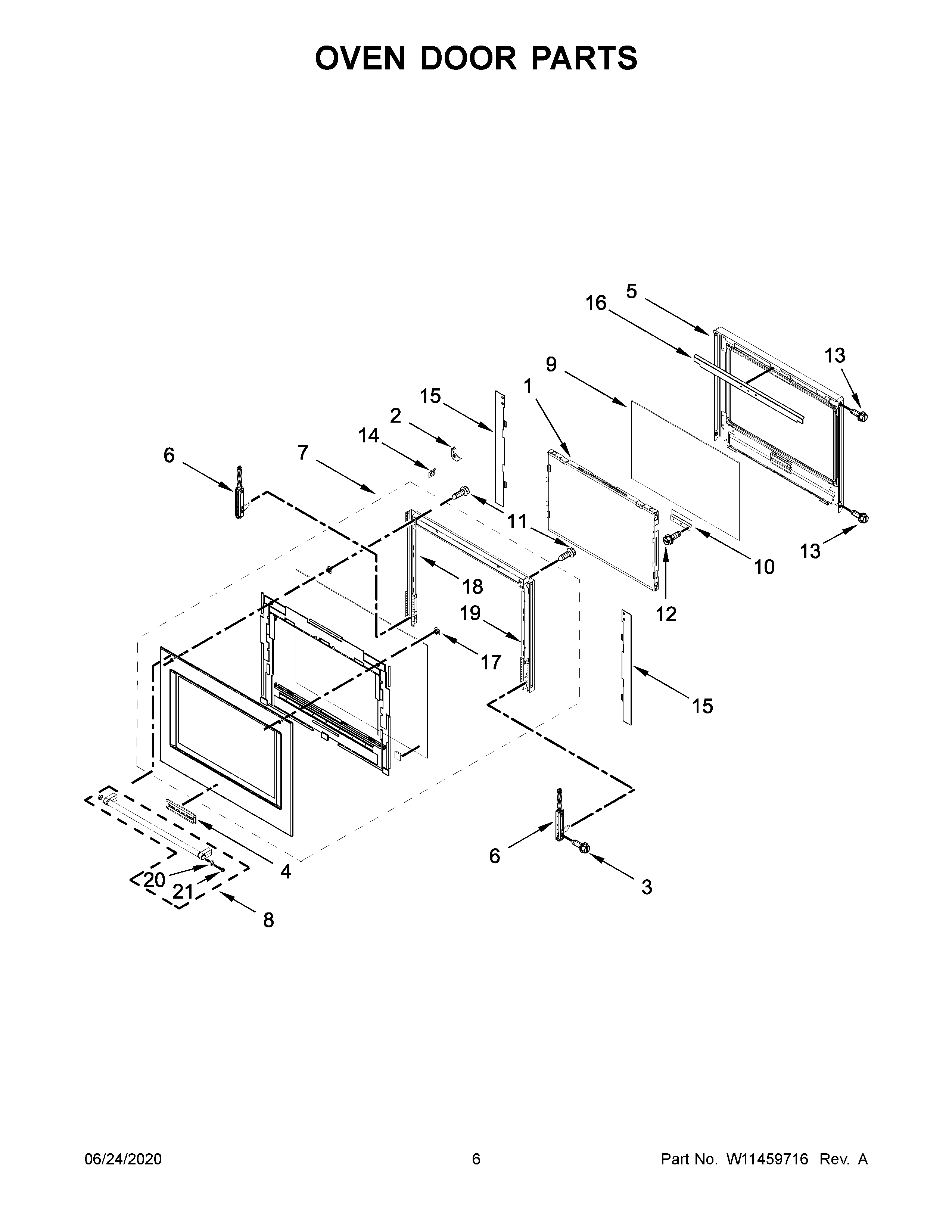

KOST100ESS04 04 – OVEN DOOR PARTS

KOST100ESS04 04 – OVEN DOOR PARTS

Written by

in

KOST100ESS04 04 – OVEN DOOR PARTS

Products

PositionProduct
1W11455086 Whirlpool Door Glass
2W10812024 Whirlpool Glass Bracket
3WP3196183 Whirlpool Screw
4W10839793 Whirlpool Refrigerator Nameplate
5WPW10709147 Whirlpool Glass Frame
6W11642291 Whirlpool Door Hinge
7W11354870 Whirlpool Range Door Glass
8W11518518 Whirlpool Door Handle
9W11455100 Whirlpool Door Glass Assembly
10W10853628 Whirlpool Oven Range Glass Bracket
11W10831019 Whirlpool Stove Door Screw
12SCREW
13SCREW (BLACK)
14W11025615 Whirlpool Glass Bracket
15AW10687814 Whirlpool Glass Bracket
15W10687815 Whirlpool Glass Bracket
16W10669415 Whirlpool Glass Bracket
17W11676355 Whirlpool Washer
18W11355410 Whirlpool Support Bracket Assembly
19W11355411 Whirlpool Support Bracket
20W10846207 Whirlpool KA Handle MEDALLIONS-RED
21W10920281 Whirlpool Screw
