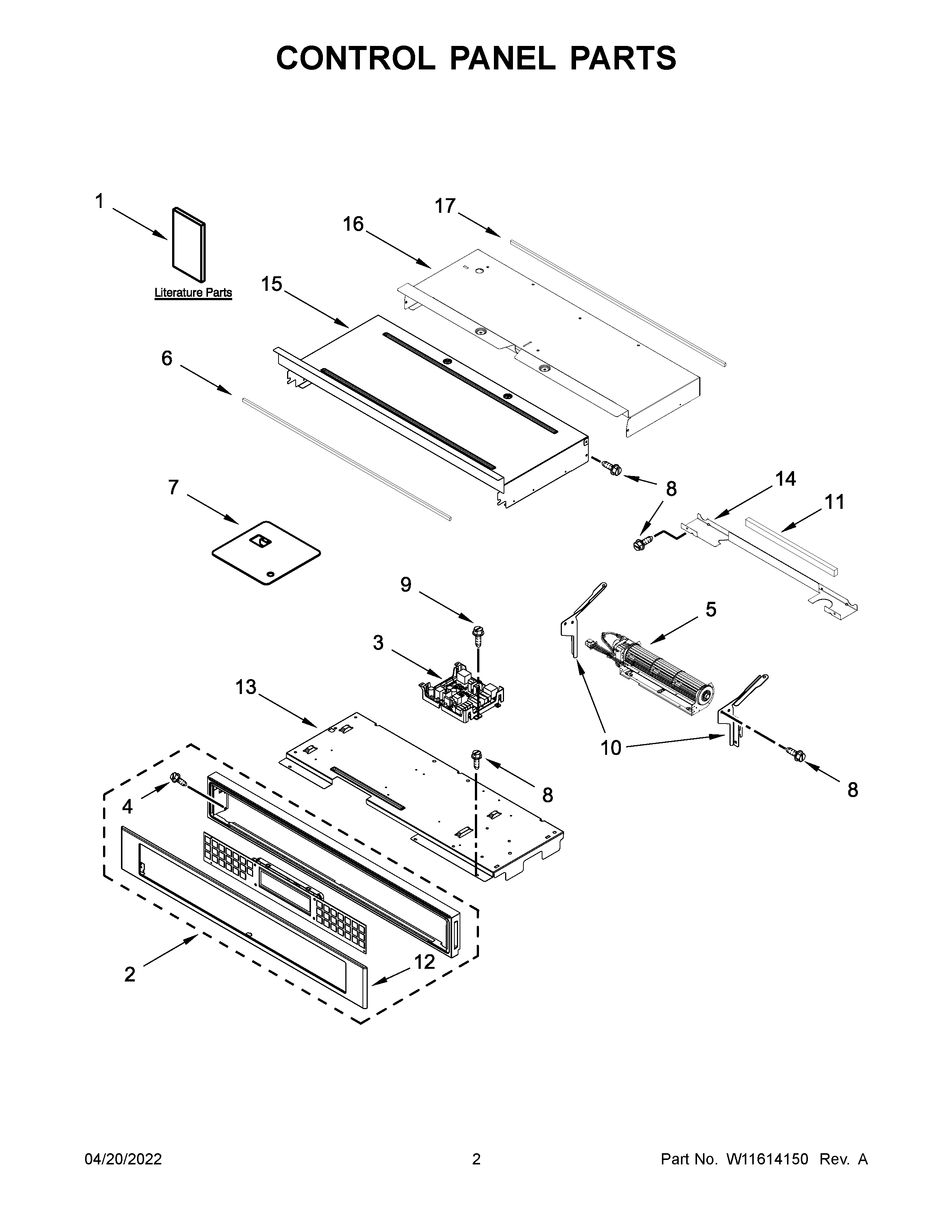

KOST100ESS20 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	HARNESS, SIGNAL
NI	4448664 Whirlpool Oven Mounting Bracket
NI	4450800 Whirlpool Oven Screw
NI	W10487999 Whirlpool Clip
NI	W10655464 Whirlpool Bracket
NI	W11699910 Whirlpool Wire Harness
NI	W11727826 Whirlpool Wire Harness
NI	STRAP, LEAD GROUND
NI	BAG, HARDWARE
NI	HARNESS, MAIN
NI	CABINET (NOT A SERVICEABLE PART)
1	OWNER'S MANUAL
1B	WIRING DIAGRAM
1A	QUICK START GUIDE
2	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
3	W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core
4	SCREW (BLACK)
5	BLOWER
6	GASKET, RUBBER
7	COVER, WIFI
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	W10588740 Whirlpool Control Panel
13	TRAY, ELECTRONIC
14	DIVIDER, CHASSIS BACK
15	COVER, 30 IN CHASSIS TOP FRONT
16	COVER, 30 IN CHASSIS TOP BACK
17	W10728475 Whirlpool Foam Seal
