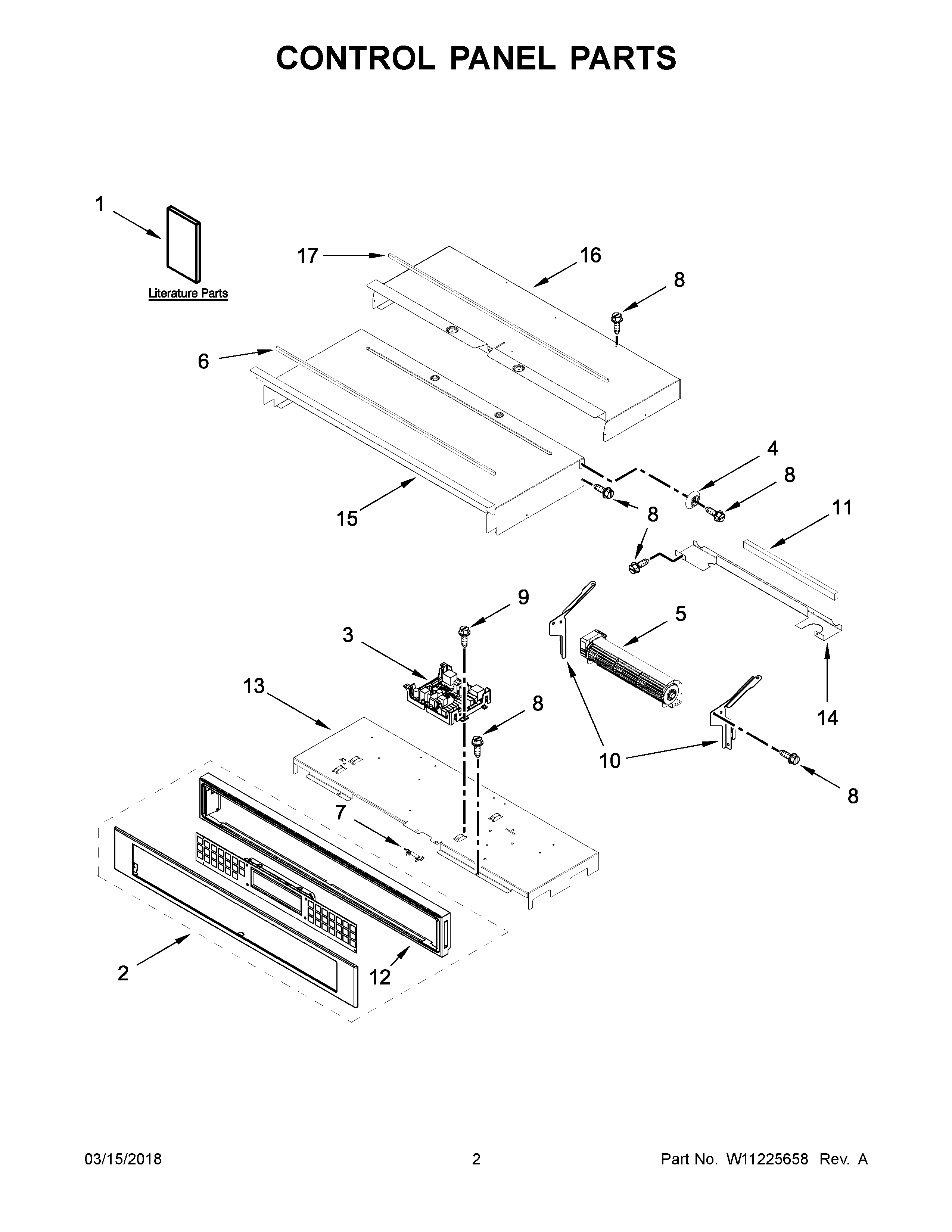

KOST107ESS02 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIHARNESS, SIGNAL
NIW11033091 Whirlpool Wire Harness
NIW11132989 Whirlpool Wire Harness
NIW10760039 Whirlpool Hardware
NI4452400 Whirlpool Microwave Wire Harness
NIW11699910 Whirlpool Wire Harness
NIW10655464 Whirlpool Bracket
NIW10487999 Whirlpool Clip
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
1CSHEET, TECH
1GUIDE, USE & CARE
1BINSTRUCTIONS, UNDERCOUNTER INSTALL
1AINSTRUCTIONS, INSTALLATION
2W10916748 Whirlpool Membrane Switch
3W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4W10618105 Whirlpool Spacer
5W11245567 Whirlpool Blower Assembly
6GASKET, RUBBER (652MM)
7W11204568 Whirlpool Thermal Fuse
8SCREW
9SCREW
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12W10588741 Whirlpool Control Panel
13TRAY, ELECTRONIC
14W10655465 Whirlpool Mounting Bracket
15W10318193 Whirlpool Cabinet Top
16CHASSIS, COVER TOP BACK 27"
17W10728475 Whirlpool Foam Seal
