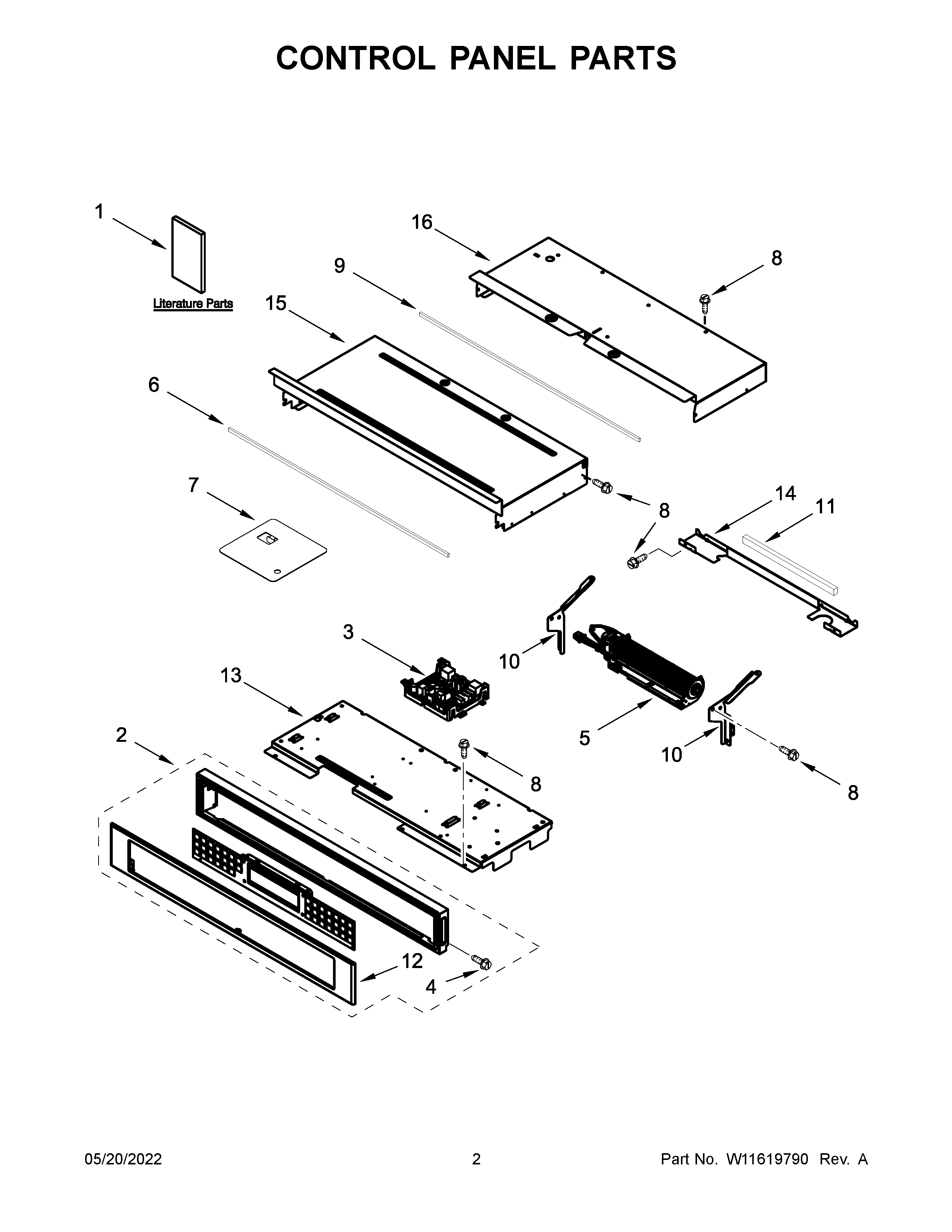

KOST107ESS20 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW10655464 Whirlpool Bracket
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIW11699910 Whirlpool Wire Harness
NIW11727826 Whirlpool Wire Harness
NISTRAP, LEAD GROUND
NIBAG, HARDWARE
NIHARNESS, MAIN
NIHARNESS, SIGNAL
NIW10487999 Whirlpool Clip
1OWNER'S MANUAL
1AQUICK START GUIDE
1BWIRING DIAGRAM
2ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
3W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core
4SCREW (BLACK)
5BLOWER
6GASKET, RUBBER (652MM)
7COVER, WIFI
8SCREW
9W10728475 Whirlpool Foam Seal
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12W10588741 Whirlpool Control Panel
13TRAY, ELECTRONIC
14DIVIDER, CHASSIS BACK
15COVER, TOP FRONT 27 IN CHASSIS
16COVER, TOP BACK 27 IN CHASSIS
