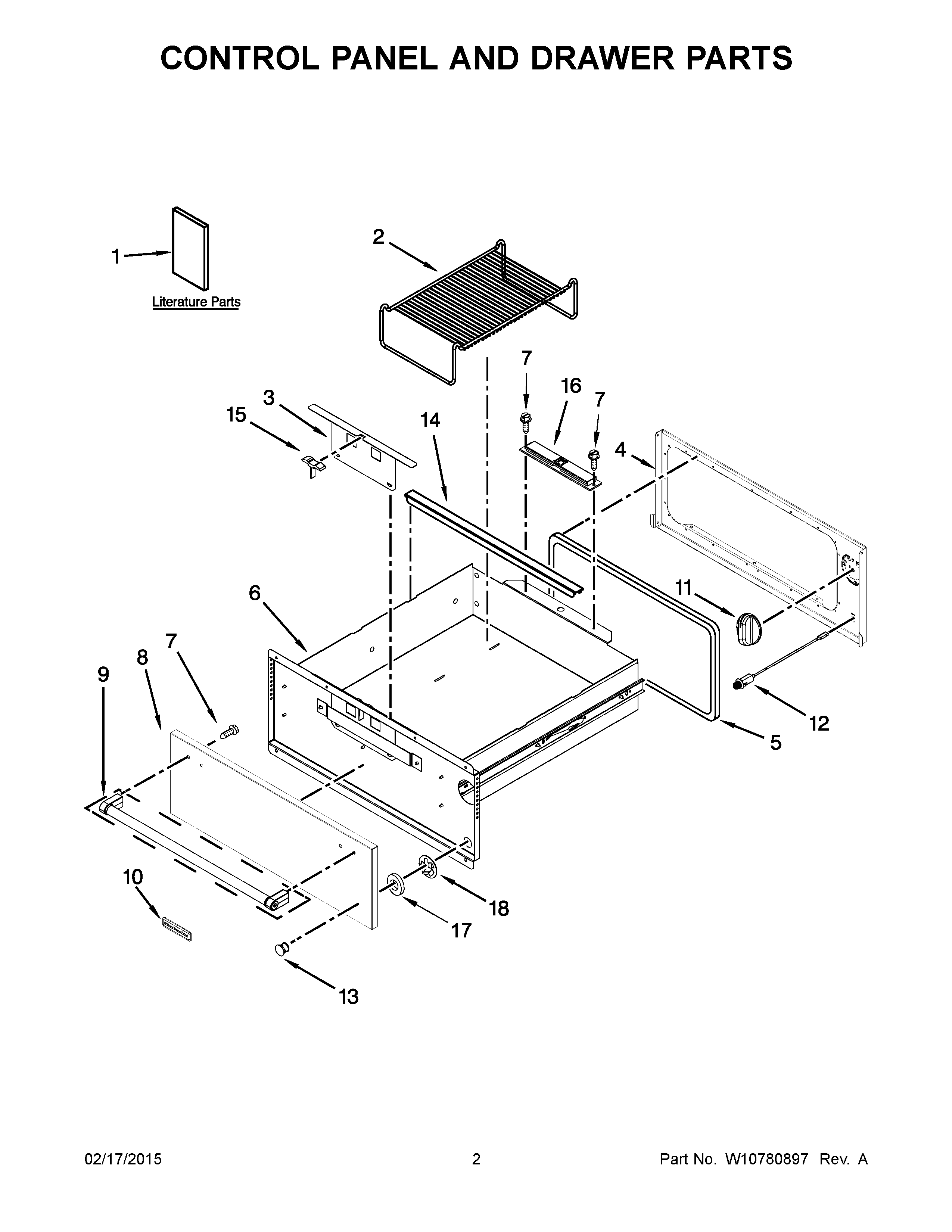

KOWT100ESS00 02 – CONTROL PANEL AND DRAWER PARTS
Written by
in
KOWT100ESS00 02 – CONTROL PANEL AND DRAWER PARTS
Products
Position
Product
1A
Tech Sheet
1
GUIDE, USE & CARE
1B
INSTRUCTIONS, INSTALLATION
2
8273277 Whirlpool Oven Rack Assembly
3
W10162376 Whirlpool Vent Slide
4
W10492179 Whirlpool Control Panel
5
GASKET, DRAWER
6
WP9763646 Whirlpool Warm Drawer
7
WP3196557 Whirlpool Screw
8
W10685893 Whirlpool Door Front
9
W11518518 Whirlpool Door Handle
10
W10839793 Whirlpool Refrigerator Nameplate
11
W10854530 Whirlpool Knob Assembly
12
W10489562 Whirlpool Indicator Light
13
4456314 Whirlpool Lens Light
14
W10409138 Whirlpool Pan Rail
15
9763125 Whirlpool Vent Grip
16
W10035910 Whirlpool Magnet Assembly
17
4456861 Whirlpool Washer
18
4456862 Whirlpool Clip
←
