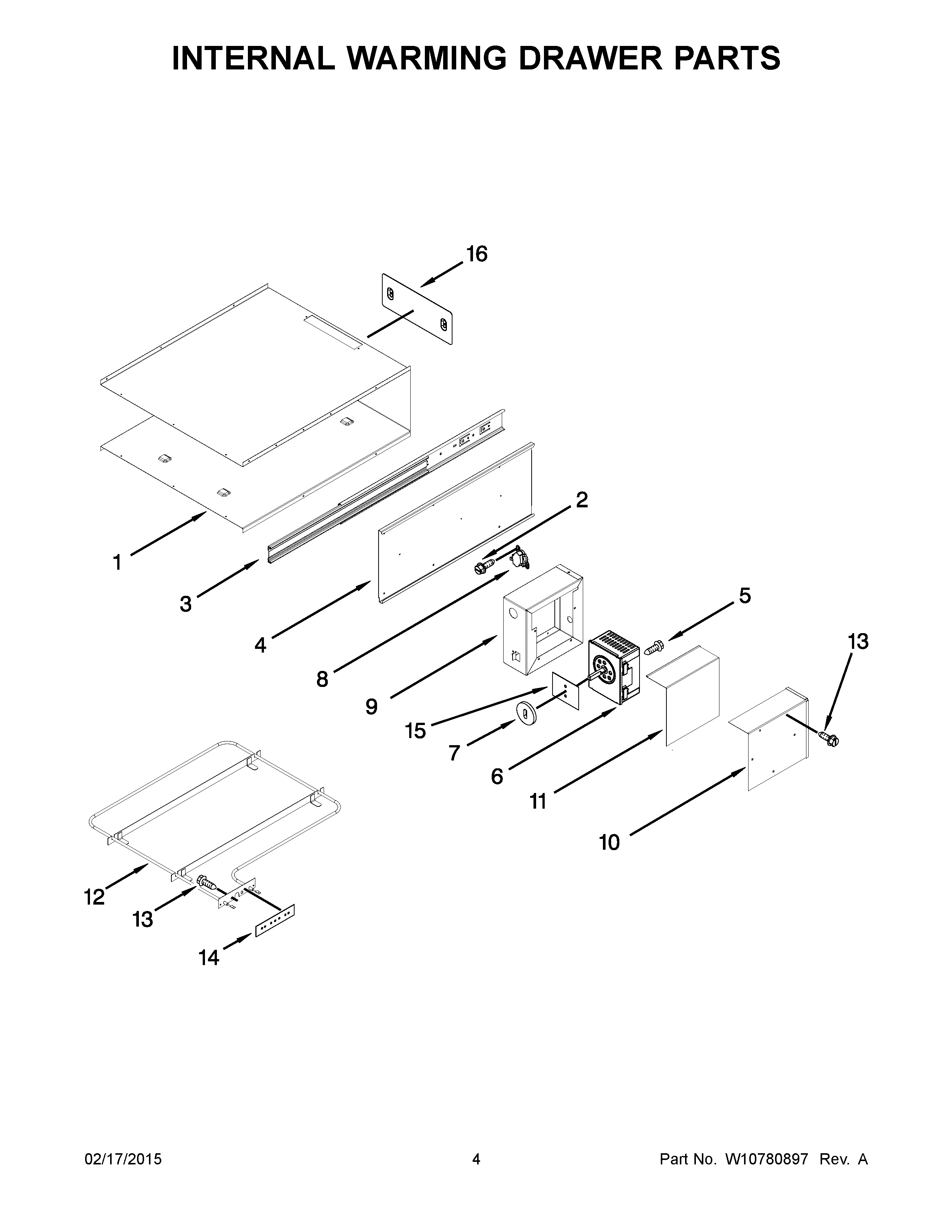

KOWT100ESS00 03 – INTERNAL WARMING DRAWER PARTS
Written by
in
KOWT100ESS00 03 – INTERNAL WARMING DRAWER PARTS
Products
Position
Product
NI
WP3400015 Whirlpool Screw
NI
CABINET (NOT A SERVICEABLE PART)
NI
W10131847 Whirlpool Sensor
NI
W10129043 Whirlpool Wire Harness
NI
W10129023 Whirlpool Power Cord
NI
4452601 Whirlpool Grommet
1
WRAPPER
2
Screw
3
WPW10188461 Whirlpool Drawer Slide
4A
9762307 Whirlpool Drawer Panel
4
W10299387 Whirlpool Drawer Panel
5
WPL 7101P30960
6
W11708324 Whirlpool Control
7
W10117362 Whirlpool Gasket
8
9763126 Whirlpool Thermal Fuse
9
9763122 Whirlpool Enclosure
10
W10182072 Whirlpool Access Cover
12
W10546520 Whirlpool Broil Element
13
WP3196557 Whirlpool Screw
14
W10118049 Whirlpool Element Seal
15
W10118113 Whirlpool Seal Switch
16
W10118073 Whirlpool Heater Shield
←
