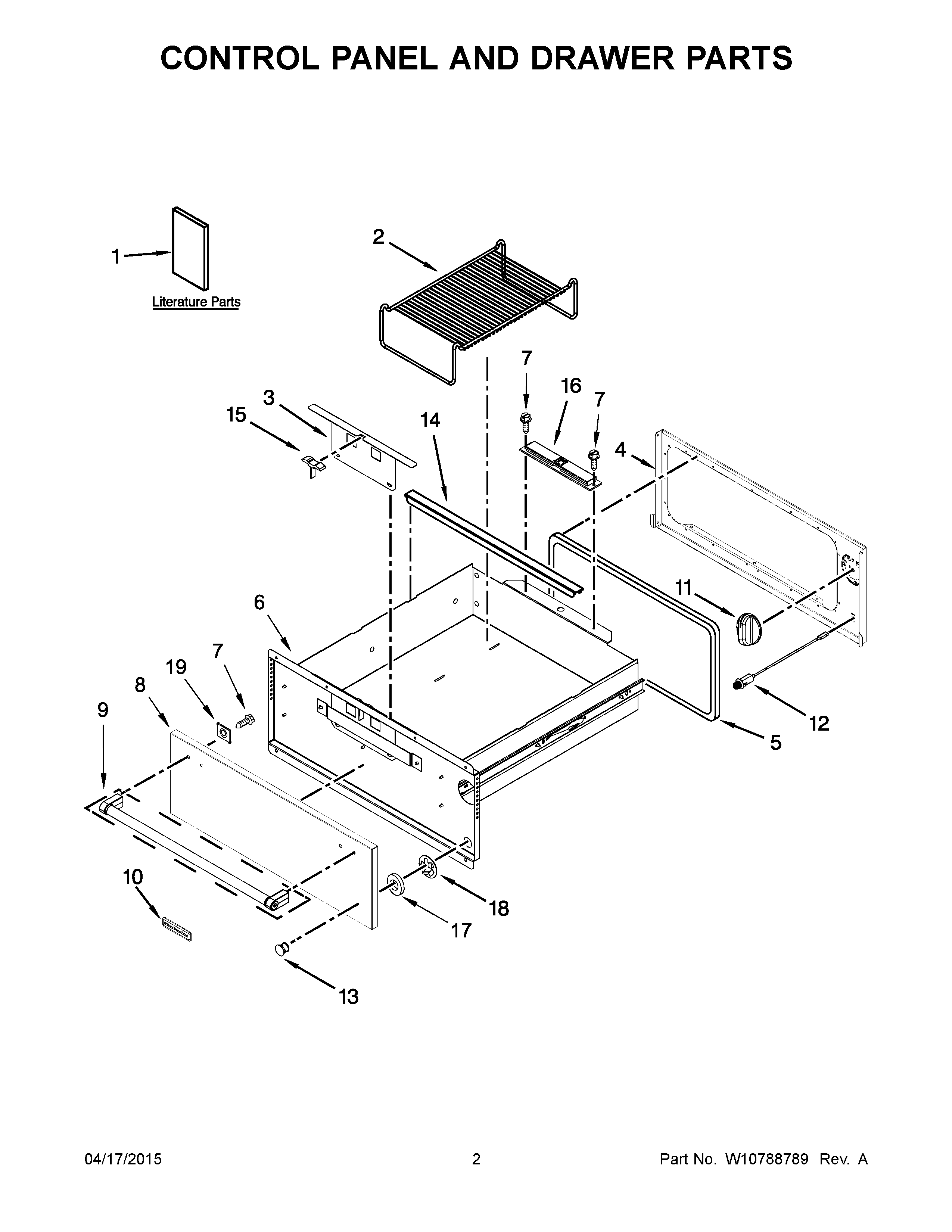

KOWT104ESS00 02 – CONTROL PANEL AND DRAWER PARTS

KOWT104ESS00 02 – CONTROL PANEL AND DRAWER PARTS

Written by

in

KOWT104ESS00 02 – CONTROL PANEL AND DRAWER PARTS

Products

PositionProduct
1BINSTRUCTIONS, INSTALLATION
1ATech Sheet
1GUIDE, USE & CARE
28273277 Whirlpool Oven Rack Assembly
3W10162376 Whirlpool Vent Slide
4W10306304 Whirlpool Control Panel
5W10164996 Whirlpool Door Gasket
69763127 Whirlpool Warm Drawer
7W10831019 Whirlpool Stove Door Screw
8W10685897 Whirlpool Door Front
9W10737395 Whirlpool Door Handle
10W10839793 Whirlpool Refrigerator Nameplate
11W10854530 Whirlpool Knob Assembly
12W10489562 Whirlpool Indicator Light
134456314 Whirlpool Lens Light
14W10409136 Whirlpool Rail Pan
159763125 Whirlpool Vent Grip
16W10035910 Whirlpool Magnet Assembly
174456861 Whirlpool Washer
184456862 Whirlpool Clip
19SPACER, HANDLE
