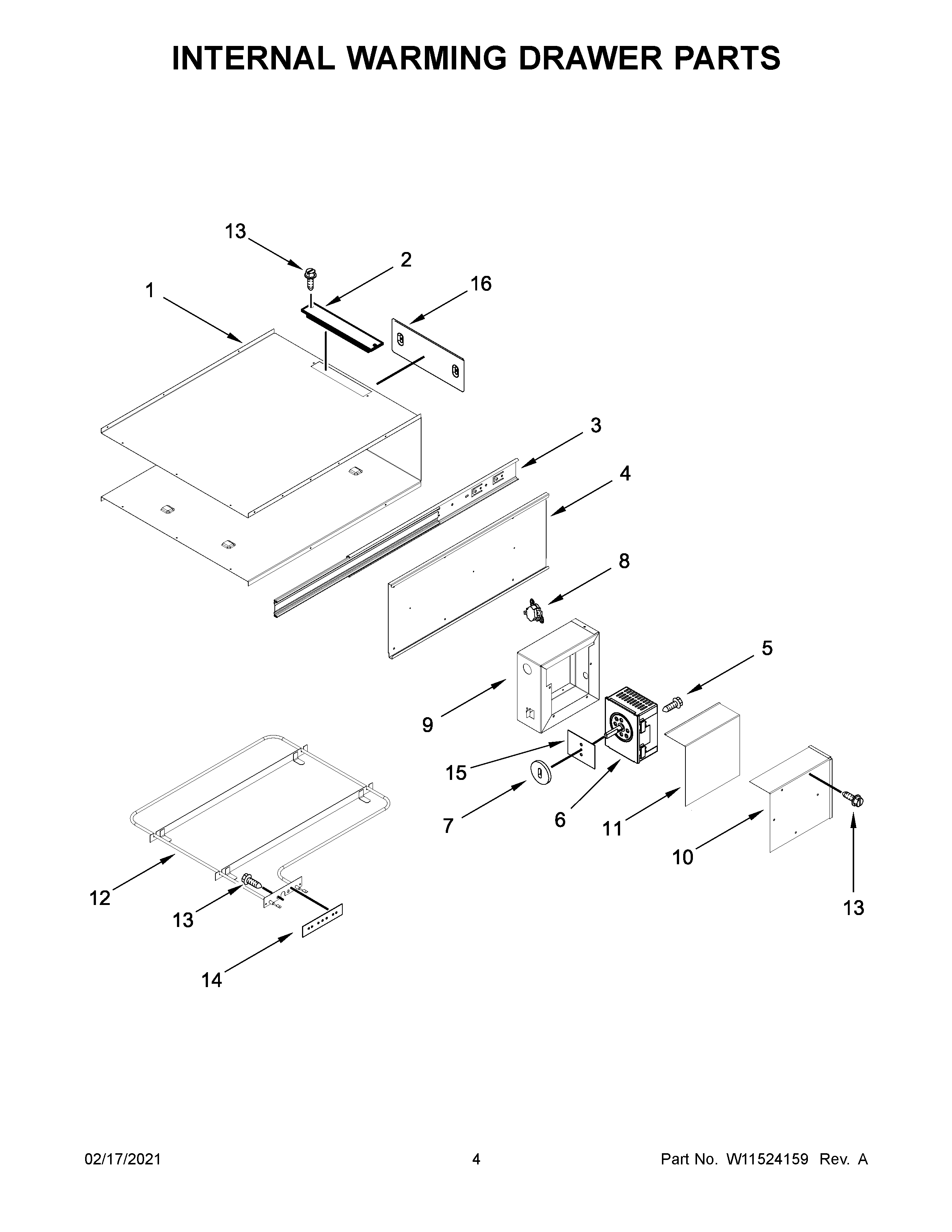

KOWT107EBS00 03 – INTERNAL WARMING DRAWER PARTS

KOWT107EBS00 03 – INTERNAL WARMING DRAWER PARTS

Written by

in

KOWT107EBS00 03 – INTERNAL WARMING DRAWER PARTS

Products

PositionProduct
NIWP3400015 Whirlpool Screw
NICABINET (NOT A SERVICEABLE PART)
NIW10131847 Whirlpool Sensor
NIW10129043 Whirlpool Wire Harness
NI4452601 Whirlpool Grommet
NIW10129023 Whirlpool Power Cord
1WRAPPER
2W10035910 Whirlpool Magnet Assembly
3WPW10188461 Whirlpool Drawer Slide
4A9762307 Whirlpool Drawer Panel
4W10299387 Whirlpool Drawer Panel
5WPL 7101P30960
6W11708324 Whirlpool Control
7W10117362 Whirlpool Gasket
89763126 Whirlpool Thermal Fuse
99763122 Whirlpool Enclosure
10W10182072 Whirlpool Access Cover
12W10751754 Whirlpool Broil Element
13WP3196557 Whirlpool Screw
14W10118049 Whirlpool Element Seal
15W10118113 Whirlpool Seal Switch
16W10118073 Whirlpool Heater Shield
