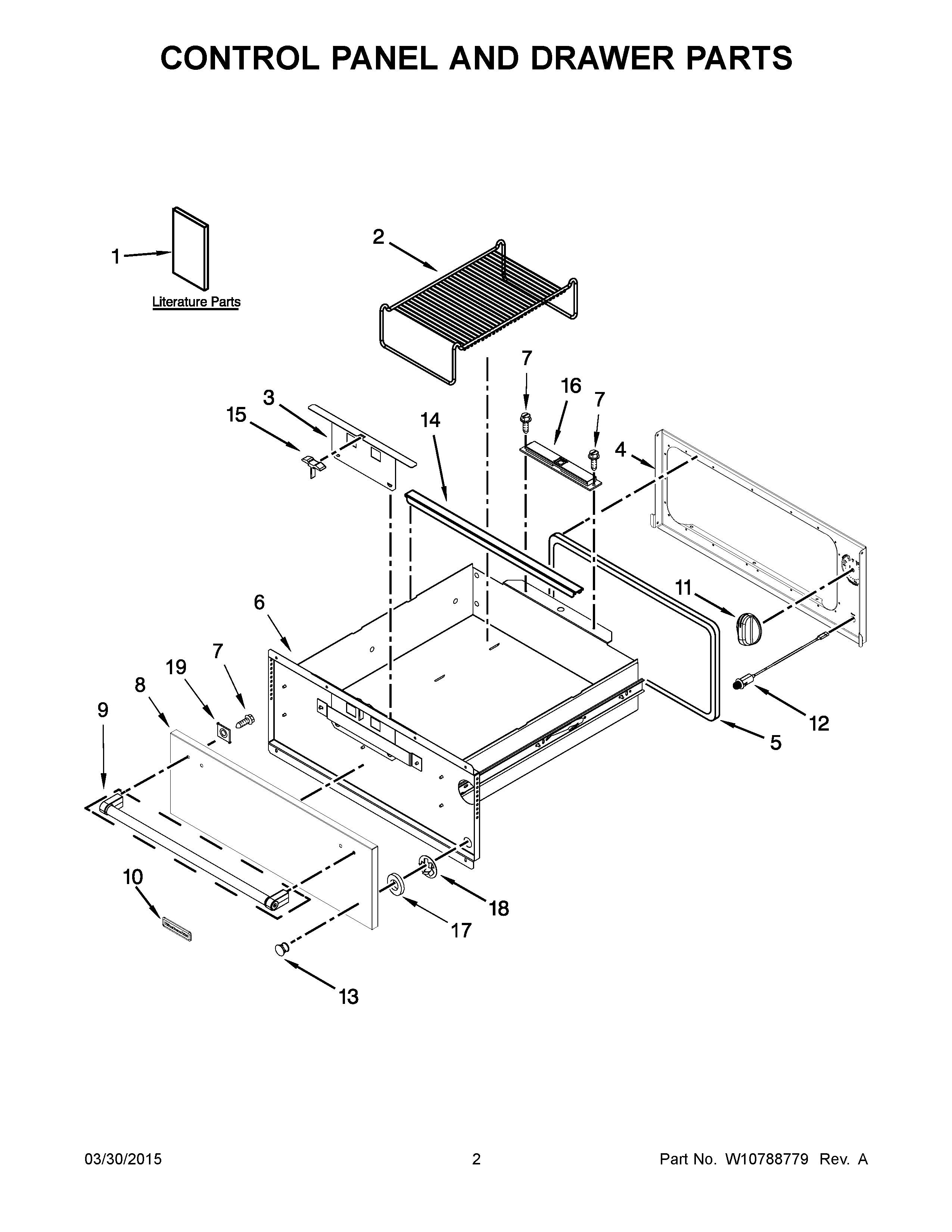

KOWT107ESS00 02 – CONTROL PANEL AND DRAWER PARTS

KOWT107ESS00 02 – CONTROL PANEL AND DRAWER PARTS

Written by

in

KOWT107ESS00 02 – CONTROL PANEL AND DRAWER PARTS

Products

PositionProduct
1GUIDE, USE & CARE
1BINSTRUCTIONS, INSTALLATION
1ATech Sheet
28273277 Whirlpool Oven Rack Assembly
3W10162376 Whirlpool Vent Slide
4W10491701 Whirlpool Control Panel
5W10164997 Whirlpool Door Gasket
6WP9763645 Whirlpool Warmer Drawer
7W10920281 Whirlpool Screw
8W10685895 Whirlpool Front Door
9W11525064 Whirlpool Door Handle
10W10839793 Whirlpool Refrigerator Nameplate
11W10854530 Whirlpool Knob Assembly
12W10489562 Whirlpool Indicator Light
134456314 Whirlpool Lens Light
14W10409137 Whirlpool Pan Rail
159763125 Whirlpool Vent Grip
16W10035910 Whirlpool Magnet Assembly
174456861 Whirlpool Washer
184456862 Whirlpool Clip
19SPACER, HANDLE
