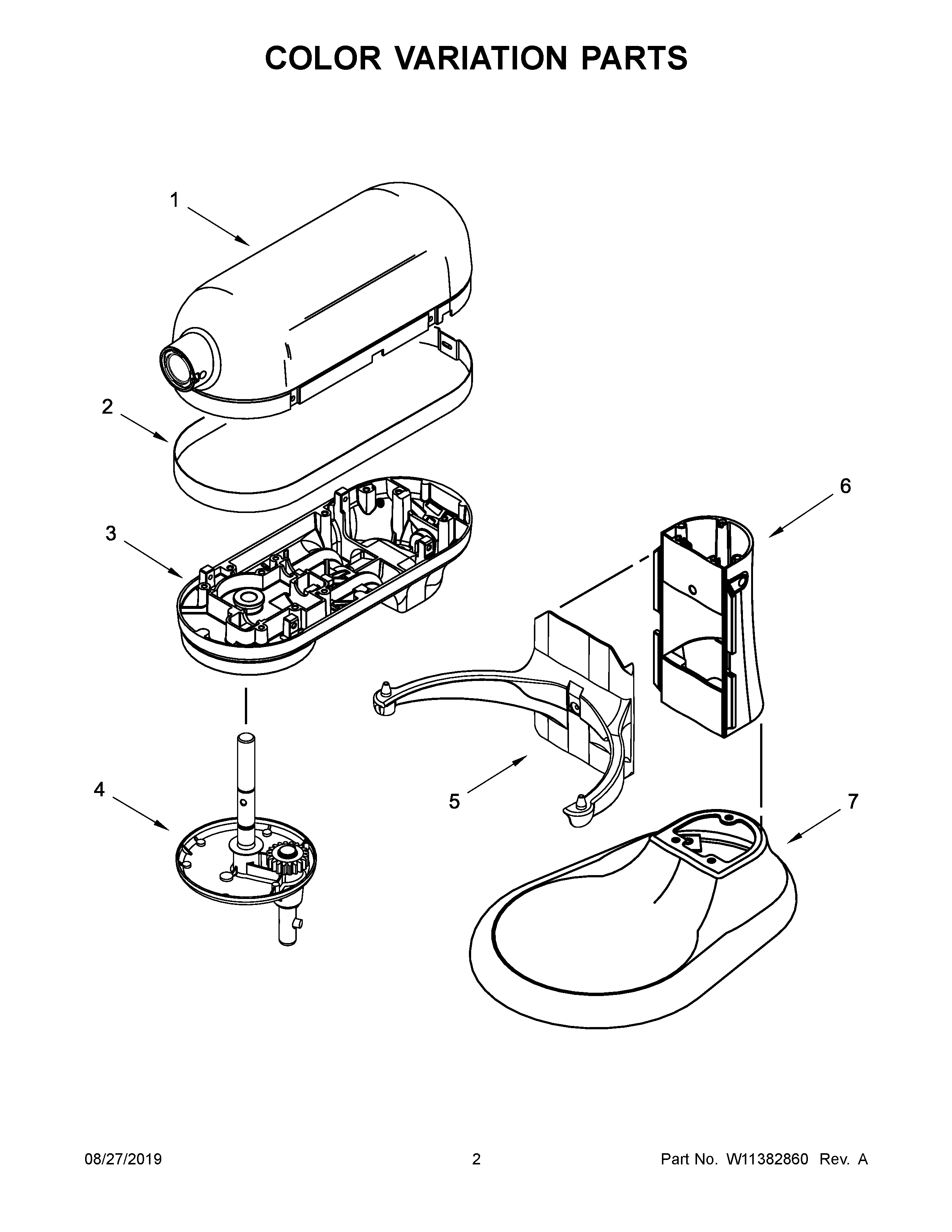

KP25M0XER5 02 – COLOR VARIATION PARTS

KP25M0XER5 02 – COLOR VARIATION PARTS

Written by

in

KP25M0XER5 02 – COLOR VARIATION PARTS

Products

PositionProduct
1C9703433 Whirlpool Housing
1B9705300 Whirlpool Housing Assembly
1AMOTOR HOUSING (BLACK MATTE)
1MOTOR HOUSING (AQUA SKY)
1DMOTOR HOUSING (BLUE VELVET)
2TRIM BAND (LIMITED EDITION BLACK)
3W10577750 Whirlpool Gearcase
3AGEARCASE
3CLower Gearcase (Metallic Chrome)
3B9706331 Whirlpool Gearcase
3DLOWER GEARCASE (MATTE VINTAGE BLUE)
4AW11123171 Whirlpool Planetary Assembly
4DPLANETARY (MATTE VINTAGE BLUE)
4W10577733 Whirlpool Planetary Gear
4CWP9708175 Whirlpool Planetary Gear
4BWP9708180 Whirlpool Planetary Gear
5CBOWL SUPPORT & PINS (METALLIC CHROME)
5BBOWL SUPPORT & PINS (EMPIRE RED)
5WPL W10577761
5ABOWL SUPPORT & PINS (BLACK MATTE)
5DBOWL SUPPORT AND PINS (BLUE VELVET)
6C9703349 Whirlpool Column
6DWPL W11255413
6B9705324 Whirlpool Column Assembly
6WPL W10577769
6AWPL W11123140
7DWPL W11255409
7AMATTE VINTAGE BLUE (BLACK MATTE)
7BMATTE VINTAGE BLUE (EMPIRE RED)
7CMATTE VINTAGE BLUE (METALLIC CHROME)
7WPL W10577773
