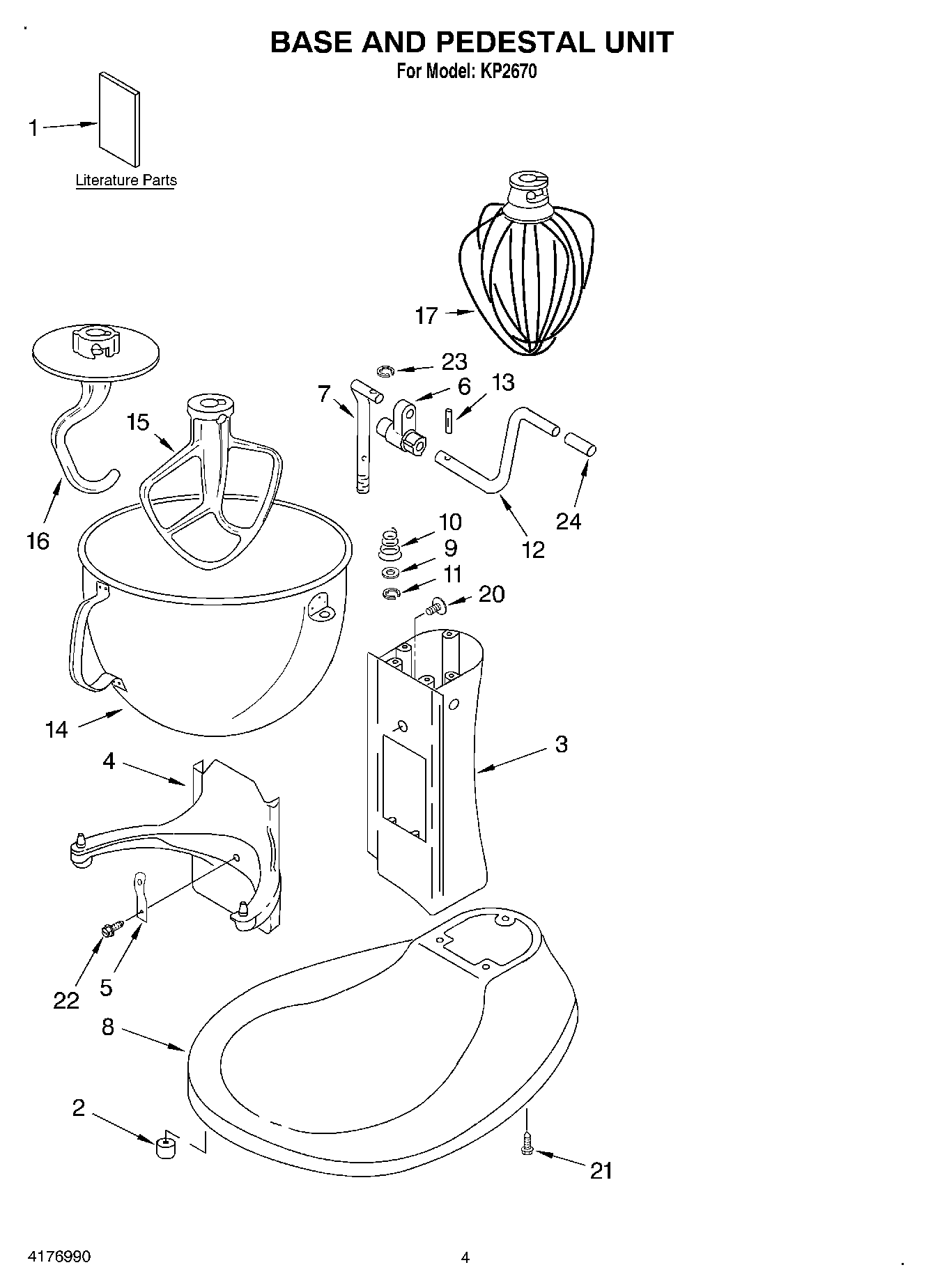

KP2670 03 – SECTION

KP2670 03 – SECTION

Written by

in

KP2670 03 – SECTION

Products

PositionProduct
1Literature Parts (Use And Care Guide)
1Literature Parts (Repair Parts List)
28211628 Whirlpool Foot Assembly
39703673 Whirlpool Column
49703674 Whirlpool Support
5WPW10504114 Whirlpool Clip
6Arm, Bowl Lift
7Rod, Bowl Lift
89703690 Whirlpool Base
9Washer
104159622 Whirlpool PP Spring
11Clip
12W11376371 Whirlpool Handle Assembly
13WP9703442 Whirlpool Roll Pin
14WPW10245251 Whirlpool Mixer Bowl
15W11646967 Whirlpool Mixer Beater
16W11319616 Whirlpool Dough Hook
17WP9703491 Whirlpool Wire Whip
20Cam, Adjusting
21W10913677 Whirlpool Screw
22W10861883 Whirlpool Screw
23WP9703307 Whirlpool Ring-C Assembly
24W11501449 Whirlpool Handle Assembly
2467500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
24FOOD GRINDER (FG-A)
24JUICER (JE)
24ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
24Grain Mill (GM-A)
24PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
24FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
24SAUSAGE STUFFER KIT (SSA)
24PASTA MAKER PLATES (SNPA)
24W11200218 Whirlpool Grease Filter
24Food Tray (FT)
24CAN OPENER (CO)
24FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
