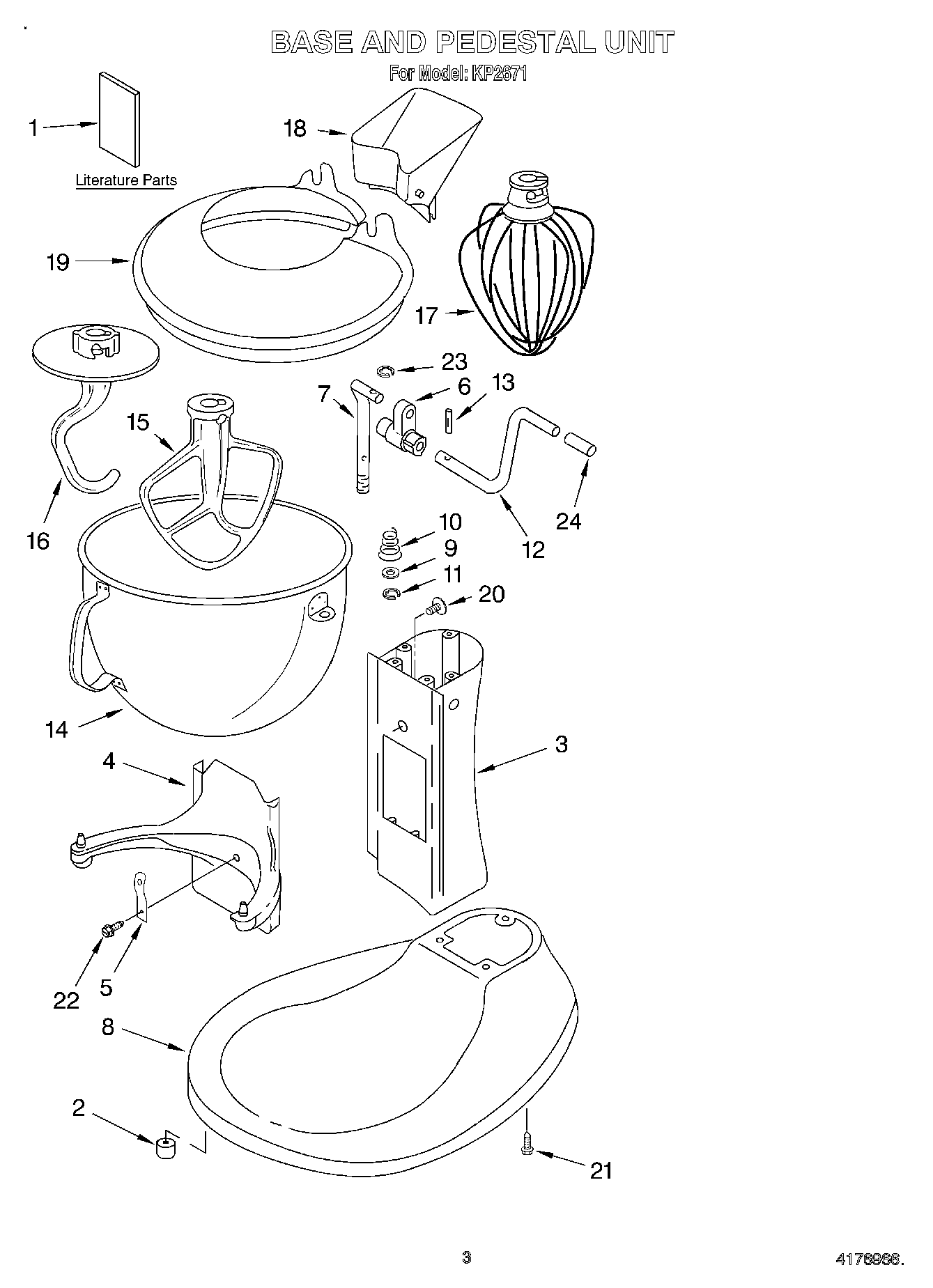

KP2671 03 – BASE & PEDESTAL UNIT, LITERATURE

Products

PositionProduct
1Literature Parts (Use And Care Guide)
1Literature Parts (Repair Parts List)
28211628 Whirlpool Foot Assembly
39705384 Whirlpool Column
39703673 Whirlpool Column
3WPL 9705679
3COLUMN-Imperial Black
3Column (Imperial Grey)
4BOWL SUPPORT-Cobalt blue
49703674 Whirlpool Support
49703519 Whirlpool Support
4WPL 9705682
4BOWL SUPPORT-Imperial Black
5WPW10504114 Whirlpool Clip
6Arm, Bowl Lift
7Rod, Bowl Lift
8WPL 9705676
8Base And Foot Assembly (Imperial Black)
89703690 Whirlpool Base
8Base And Foot Assembly (Imperial Grey)
8Base And Foot Assembly (C
9Washer
104159622 Whirlpool PP Spring
11Clip
12W11376371 Whirlpool Handle Assembly
13WP9703442 Whirlpool Roll Pin
14WPW10245251 Whirlpool Mixer Bowl
15W11646967 Whirlpool Mixer Beater
16W11319616 Whirlpool Dough Hook
17WP9703491 Whirlpool Wire Whip
19WPW10617049 Whirlpool Pour Shelf
20Cam, Adjusting
21W10913677 Whirlpool Screw
22W10861883 Whirlpool Screw
23WP9703307 Whirlpool Ring-C Assembly
24W11501449 Whirlpool Handle Assembly
