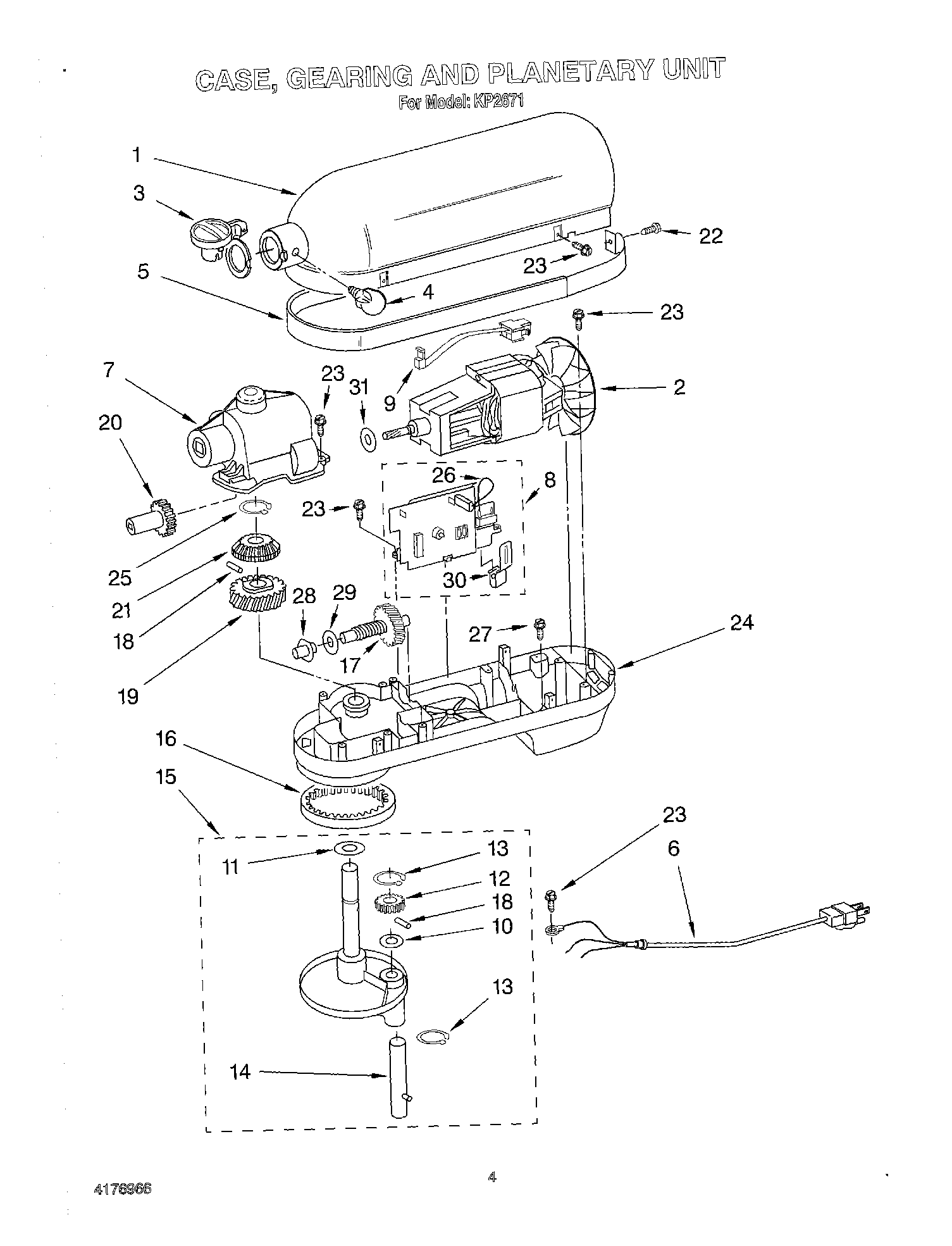

KP2671 04 – CASE, GEARING, PLANETARY UNIT

KP2671 04 – CASE, GEARING, PLANETARY UNIT

Written by

in

KP2671 04 – CASE, GEARING, PLANETARY UNIT

Products

PositionProduct
1MOTOR HOUSING (CAVIAR)
19703532 Whirlpool Housing Assembly
19703311 Whirlpool Housing Assembly
1Motor Housing (Imperial Grey)
1Motor Housing (Cobalt Blue)
2Motor
3WP9703315 Whirlpool Hub Cap
4WP9709194 Whirlpool Black Thumb Screw
5Trim Band KD “Custom“ (Silver & Black)
5Trim Band KD “Custom“ (Black & Satin Finish)
6Power Cord (Black)
6Power Cord (White)
78212396 Whirlpool Housing
8Control Assembly (Black Knob)
9WP9706648 Whirlpool Speed Control
10Washer
11W11084660 Whirlpool Washer
12W11133646 Whirlpool Gear
13WP9703438 Whirlpool Snap Retaining Ring
14Agitator Shaft
15WP9708174 Whirlpool Planetary
15WP9708172 Whirlpool Planetary Assembly
15WP9708173 Whirlpool Planetary Gear
15PLANETARY-Cobalt Blue
15PLANETARY-Caviar
16W11181966 Whirlpool Gear
17WP9709231 Whirlpool Gear Assembly
18WP9707223 Whirlpool Dowel Pin
19GEAR
21W11192795 Whirlpool Gear
22W10853069 Whirlpool Screw
23WP3400814 Whirlpool Screw
24LOWER GEARCASE-Imperial Gray
24LOWER GEARCASE-Caviar
249706301 Whirlpool Gearcase
24WP9706047 Whirlpool Gearcase
25WP9703680 Whirlpool Retainer Ring
26Jumper Wire
27W10913677 Whirlpool Screw
28Bearing, Worm Gear (2)
29Thrust Washer
30Clip
31PASTA MAKER PLATES (SNPA)
31WPL 9705607
31JUICER (JE)
3167500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
31CAN OPENER (CO)
31ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
31FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
31Food Tray (FT)
31W11200218 Whirlpool Grease Filter
31Grain Mill (GM-A)
31PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
31FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
31SAUSAGE STUFFER KIT (SSA)
31FOOD GRINDER (FG-A)
