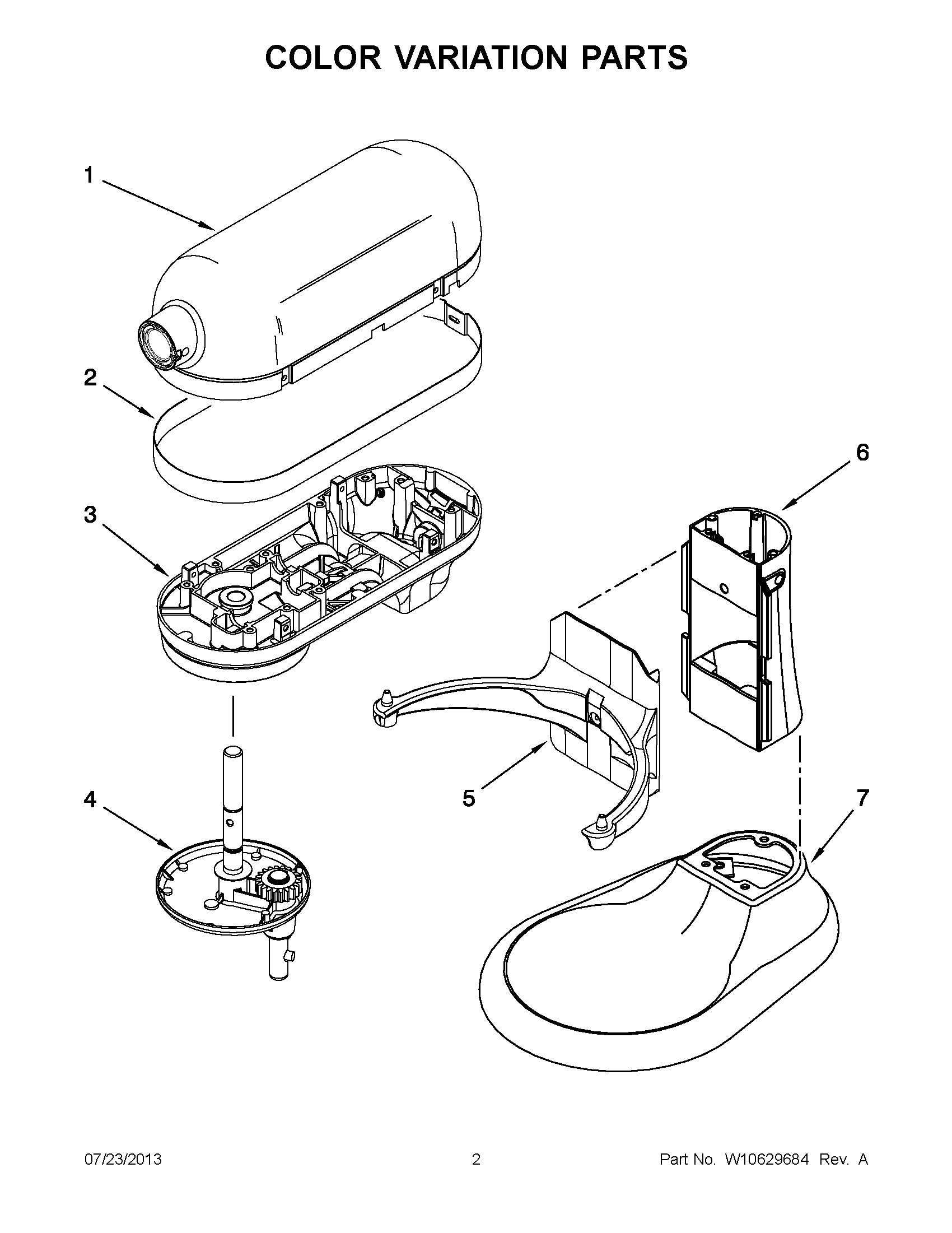

KP26M1FQBU5 01 – COLOR VARIATION PARTS

KP26M1FQBU5 01 – COLOR VARIATION PARTS

Written by

in

KP26M1FQBU5 01 – COLOR VARIATION PARTS

Products

PositionProduct
1W10114555 Whirlpool Housing
1MOTOR HOUSING (GREEN APPLE)
1Motor Housing (Tangerine)
1WPW10453625 Whirlpool Housing
19708749 Whirlpool Housing
1Motor Housing (Majestic Yellow)
1Motor Housing (Cobalt Blue)
19705300 Whirlpool Housing Assembly
19705296 Whirlpool Housing
19703311 Whirlpool Housing Assembly
19707981 Whirlpool Housing
29708371 Whirlpool Trim Band
3Lower Gearcase (Majestic Yellow)
39708070 Whirlpool Gearcase
39707974 Whirlpool Gearcase
39706331 Whirlpool Gearcase
3Lower Gearcase (Cobalt Blue)
3WP9706047 Whirlpool Gearcase
3LOWER GEARCASE (GREEN APPLE)
39706311 Whirlpool Gearcase
3WPL W10114562
39708756 Whirlpool Gearcase Assembly
3WPW10453632 Whirlpool Gearcase
4W10343681 Whirlpool Planetary Gear
4WP9708753 Whirlpool Planetary Gear
4WPW10453629 Whirlpool Planetary Mixer
4WP9707977 Whirlpool Planetary Gear
49708189 Whirlpool Planetary Mixer
49708181 Whirlpool Planetary
4Planetary (Cobalt Blue)
4WP9708172 Whirlpool Planetary Assembly
4WP9708176 Whirlpool Planetary Mixer
4WP9708180 Whirlpool Planetary Gear
4W10114559 Whirlpool Planetary Assembly
59705360 Whirlpool Support Assembly
59705356 Whirlpool Support
59703674 Whirlpool Support
59707970 Whirlpool Support
5W10344054 Whirlpool Support
5WPL W10114566
5WPW10453636 Whirlpool Support
59708760 Whirlpool Support
5BOWL SUPPORT-Cobalt blue
5WPL 9705361
5WPL 9708074
69705384 Whirlpool Column
6WPW10453639 Whirlpool Column Assembly
6WPL 9705325
6WPL 9707967
6WPL 9708077
6WPL W10344072
6COLUMN AND PINS (NICKEL PEARL)
69705324 Whirlpool Column Assembly
69705320 Whirlpool Column
69703673 Whirlpool Column
6WPL W10114569
7WPL 9708080
79705348 Whirlpool Base
7Base And Foot Assembly (C
79705344 Whirlpool Base
7BASE & FOOT ASSEMBLY (NICKEL PEARL)
79703690 Whirlpool Base
7WPL W10344173
7WPL W10114572
79707964 Whirlpool Base
7WPL 9705349
7WPW10453644 Whirlpool Base Assembly
