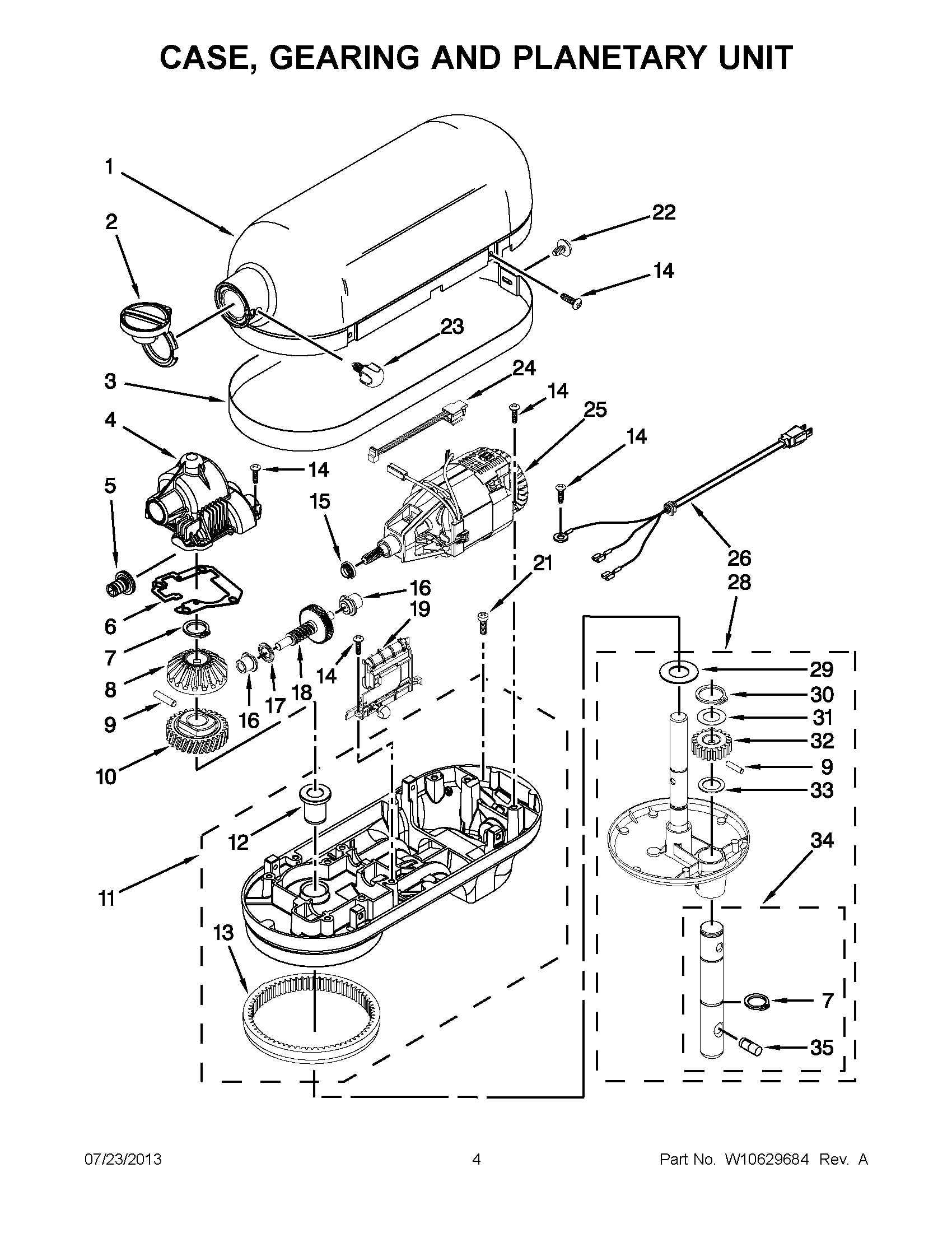

KP26M1FQPM5 02 – CASE, GEARING AND PLANETARY UNIT

Products

Position	Product
2	W11401152 Whirlpool Hub Cap
4	8212396 Whirlpool Housing
6	WP9709511 Whirlpool Microwave High Voltage Transformer
7	WP9703680 Whirlpool Retainer Ring
8	W11192795 Whirlpool Gear
9	WP9707223 Whirlpool Dowel Pin
10	GEAR
12	WP16897 Whirlpool Bearing
13	W11181966 Whirlpool Gear
14	WP3400814 Whirlpool Screw
15	WP9706247 Whirlpool Seal
16	WPW10170080 Whirlpool Bearing Assembly
16	WPW10170081 Whirlpool Bearing
17	WP9703445 Whirlpool Bearing Kit Thrust
18	WP9709231 Whirlpool Gear Assembly
21	W10913677 Whirlpool Screw
22	W10853069 Whirlpool Screw
23	WP9709196 Whirlpool Screw
23	WP9709194 Whirlpool Black Thumb Screw
24	WP9706648 Whirlpool Speed Control
25	WPW10247536 Whirlpool Motor
26	W11728151 Whirlpool Power Cord
26	W11359748 Whirlpool Power Cord
28	CABINET (NOT A SERVICEABLE PART)
29	W11084660 Whirlpool Washer
30	WP9703438 Whirlpool Snap Retaining Ring
31	WP9706090 Whirlpool Washer
32	W11133646 Whirlpool Gear
33	W10854966 Whirlpool Washer
34	WP9708191 Whirlpool Agitator Shaft
35	W11664709 Whirlpool Groove Pin
