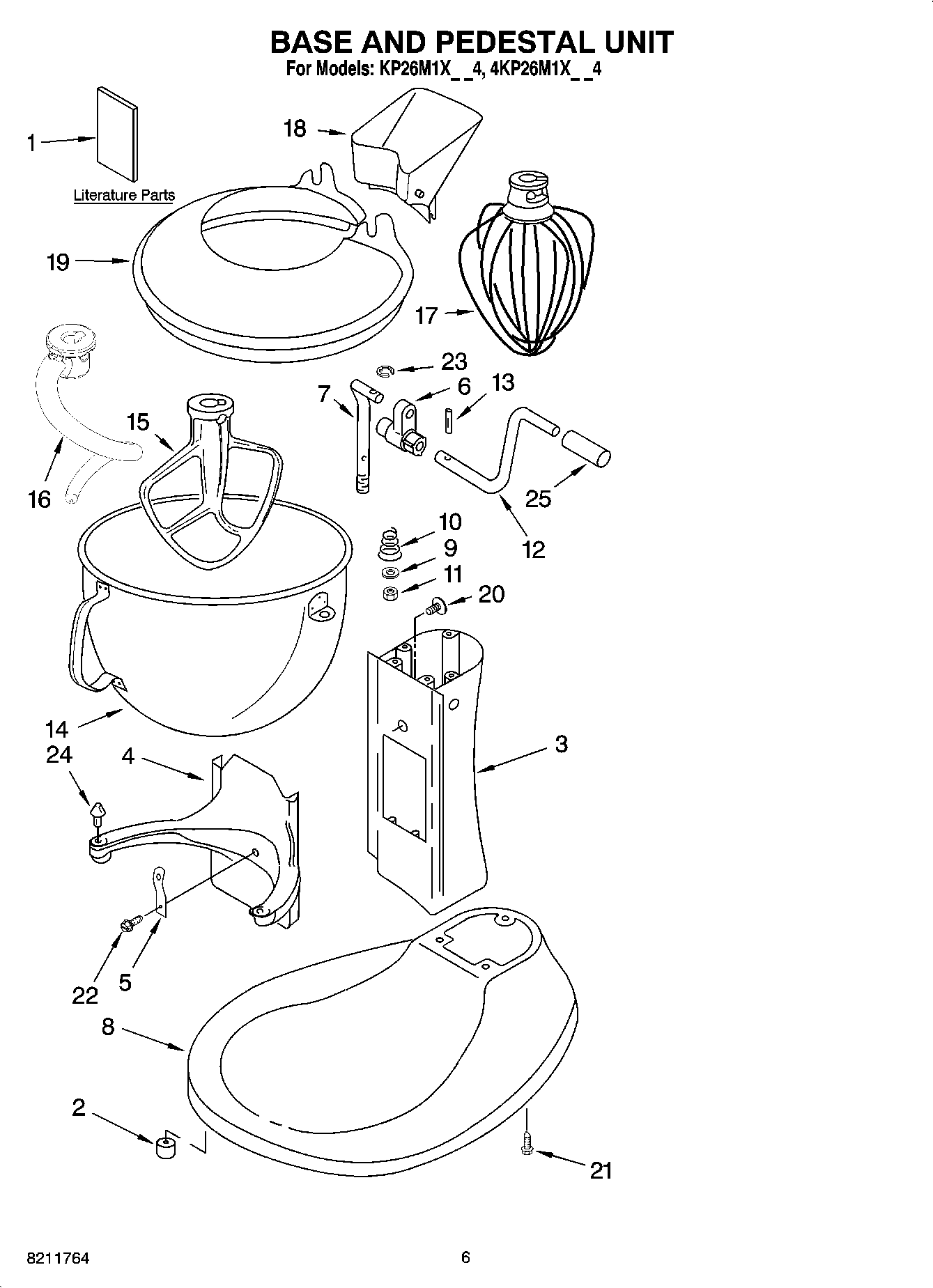

KP26M1XAZ4 03 – BASE AND PEDESTAL UNIT, OPTIONAL PARTS

Products

Position	Product
	Grain Mill, KGMA
	ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
	CAN OPENER (CO)
	PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
	MAKER, ICE CREAM (KICA0WH)
	FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
	FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
	PASTA MAKER PLATES (SNPA)
	W11200218 Whirlpool Grease Filter
	Food Tray (FT)
	JUICER (JE)
	FOOD GRINDER (FG-A)
	67500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
	SAUSAGE STUFFER KIT (SSA)
1	Use & Care Guide
1	GUIDE, USE AND CARE
1	Use & Care Guide (Repair Parts List)
1	LITERATURE PARTS
2	WP9708649 Whirlpool Foot
3	Column Assembly
4	Bowl Support
5	WPW10504114 Whirlpool Clip
6	WP9706885 Whirlpool Lift Arm Assembly
7	W11376364 Whirlpool Lift Rod
8	Base And Foot Supports
9	Washer
10	4159622 Whirlpool PP Spring
11	8533907 Whirlpool Dishwasher Nut
12	W11376371 Whirlpool Handle Assembly
13	WP3400814 Whirlpool Screw
14	WPW10245251 Whirlpool Mixer Bowl
15	W11646967 Whirlpool Mixer Beater
16	W11646968 Whirlpool Dough Hook
17	WP9703491 Whirlpool Wire Whip
19	WPW10617049 Whirlpool Pour Shelf
20	Cam, Adjusting
21	W10913677 Whirlpool Screw
22	W10861883 Whirlpool Screw
23	WP9703307 Whirlpool Ring-C Assembly
24	WP240185 Whirlpool Bowl Retaining Pin
25	W11501449 Whirlpool Handle Assembly
