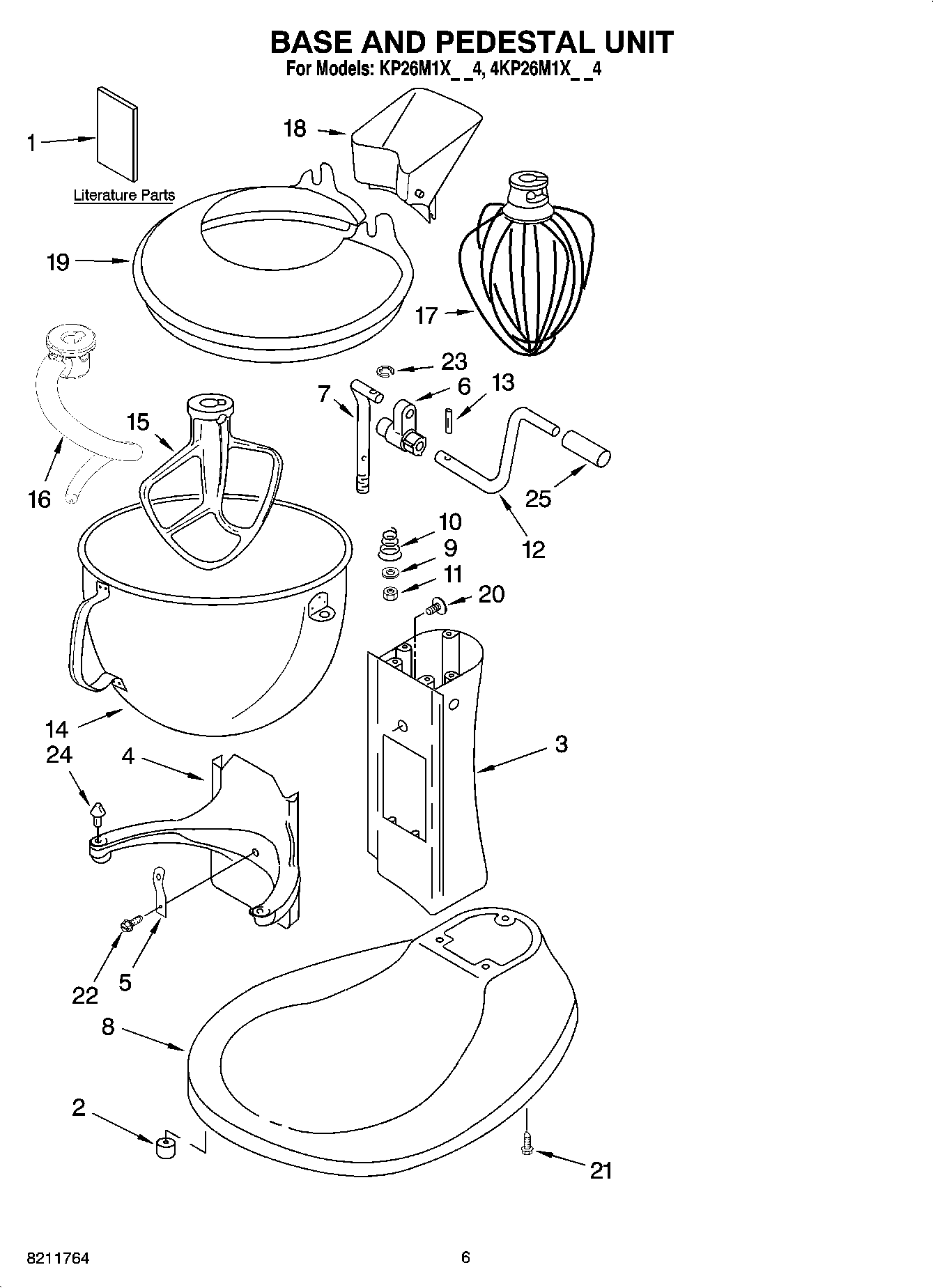

KP26M1XDP4 03 – BASE AND PEDESTAL UNIT, OPTIONAL PARTS

KP26M1XDP4 03 – BASE AND PEDESTAL UNIT, OPTIONAL PARTS

Written by

in

KP26M1XDP4 03 – BASE AND PEDESTAL UNIT, OPTIONAL PARTS

Products

PositionProduct
Grain Mill, KGMA
ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
CAN OPENER (CO)
PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
MAKER, ICE CREAM (KICA0WH)
FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
PASTA MAKER PLATES (SNPA)
W11200218 Whirlpool Grease Filter
Food Tray (FT)
JUICER (JE)
FOOD GRINDER (FG-A)
67500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
SAUSAGE STUFFER KIT (SSA)
1Use & Care Guide
1GUIDE, USE AND CARE
1Use & Care Guide (Repair Parts List)
1LITERATURE PARTS
2WP9708649 Whirlpool Foot
3Column Assembly
4Bowl Support
5WPW10504114 Whirlpool Clip
6WP9706885 Whirlpool Lift Arm Assembly
7W11376364 Whirlpool Lift Rod
8Base And Foot Supports
9Washer
104159622 Whirlpool PP Spring
118533907 Whirlpool Dishwasher Nut
12W11376371 Whirlpool Handle Assembly
13WP3400814 Whirlpool Screw
14WPW10245251 Whirlpool Mixer Bowl
15W11646967 Whirlpool Mixer Beater
16W11646968 Whirlpool Dough Hook
17WP9703491 Whirlpool Wire Whip
19WPW10617049 Whirlpool Pour Shelf
20Cam, Adjusting
21W10913677 Whirlpool Screw
22W10861883 Whirlpool Screw
23WP9703307 Whirlpool Ring-C Assembly
24WP240185 Whirlpool Bowl Retaining Pin
25W11501449 Whirlpool Handle Assembly
