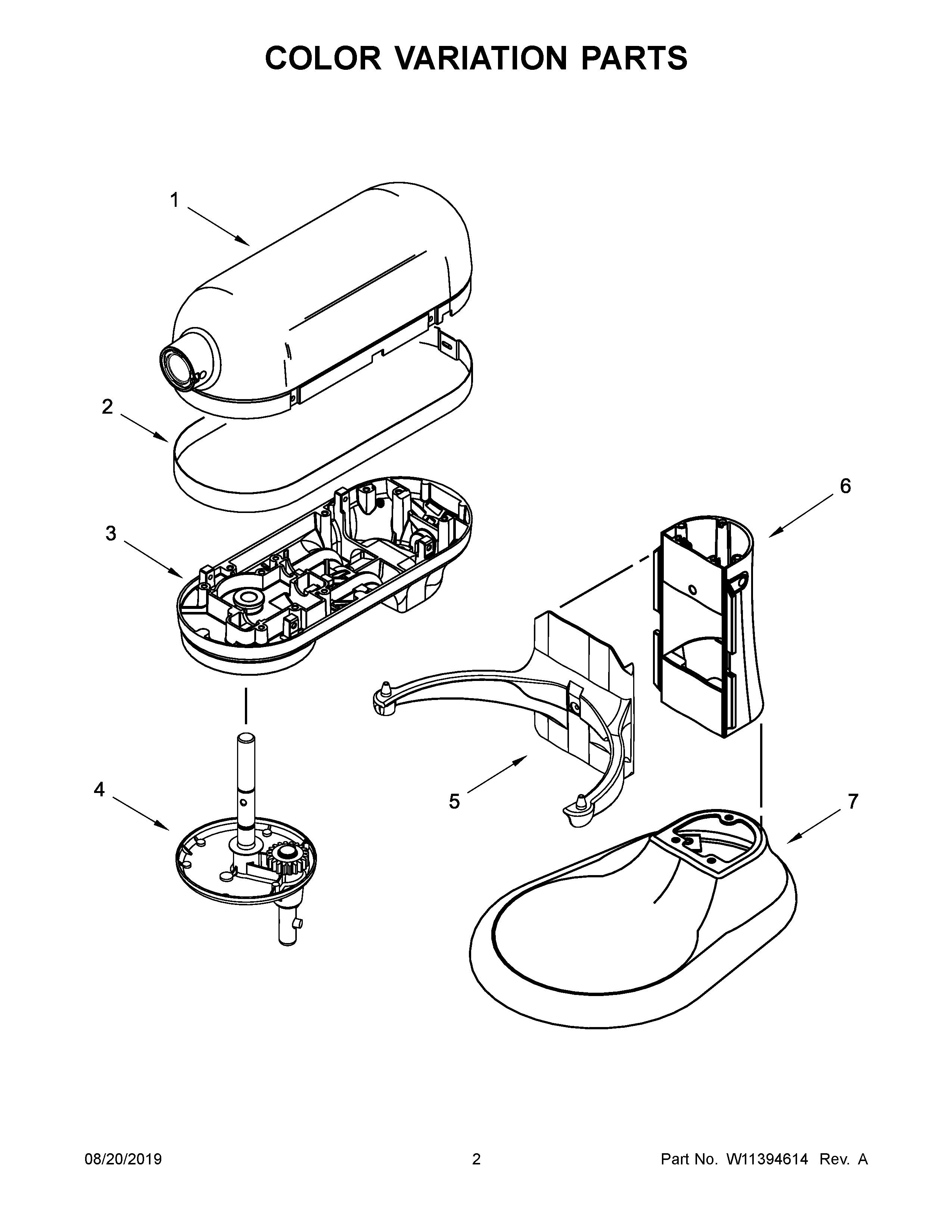

KP26M1XQ2GC5 02 – COLOR VARIATION PARTS

KP26M1XQ2GC5 02 – COLOR VARIATION PARTS

Written by

in

KP26M1XQ2GC5 02 – COLOR VARIATION PARTS

Products

PositionProduct
1BW10327951 Whirlpool Housing
1GMOTOR HOUSING (BLUE WILLOW)
1HW10114555 Whirlpool Housing
1CMOTOR HOUSING (COPPER PEARL)
1MMOTOR HOUSING (BLUE VELVET)
1MOTOR HOUSING (BIRD OF PARADISE)
1EMOTOR HOUSING (OCEAN DRIVE)
1KMOTOR HOUSING (GUAVA GLAZE)
1IMOTOR HOUSING (GREEN APPLE)
1JMotor Housing (Majestic Yellow)
1AMOTOR HOUSING (CRIMSON RED)
1F9705296 Whirlpool Housing
1NMOTOR HOUSING (TOFFEE DELIGHT)
1D9705300 Whirlpool Housing Assembly
1LMOTOR HOUSING (MATTE FRESH LINEN)
29708371 Whirlpool Trim Band
3C9709159 Whirlpool Gearcase Assembly
3JLower Gearcase (Majestic Yellow)
3ILOWER GEARCASE (GREEN APPLE)
3ELOWER GEARCASE (OCEAN DRIVE)
3LOWER GEARCASE (BIRD OF PARADISE)
3MLOWER GEARCASE (MATTE VINTAGE BLUE)
3KWPL W11113689
3LWPL W11255375
3NWPL W11255400
3AWPL W11236437
3F9706311 Whirlpool Gearcase
3BW10327958 Whirlpool Gearcase
3D9706331 Whirlpool Gearcase
3GWPL W10114581
3HWPL W10114562
4DWP9708180 Whirlpool Planetary Gear
4MPLANETARY (MATTE VINTAGE BLUE)
4BW10327955 Whirlpool Planetary Mixer
4HW10114559 Whirlpool Planetary Assembly
4C9709156 Whirlpool Planetary Assembly
4GPLANETARY (BLUE WILLOW)
4NW11255403 Whirlpool Planetary Assembly
4KWPL W11113697
4IW10343681 Whirlpool Planetary Gear
4J9708181 Whirlpool Planetary
4PLANETARY (BIRD OF PARADISE)
4LW11255378 Whirlpool Planetary Mixer
4EWPL W11286402
4AWPL W11236439
4FWP9708176 Whirlpool Planetary Mixer
5D9705360 Whirlpool Support Assembly
5LWPL W11255372
5C9709163 Whirlpool Support
5F9705356 Whirlpool Support
5GWPL W10114585
5JWPL 9705361
5AWPL W11286390
5W11286433 Whirlpool Support
5MBOWL SUPPORT AND PINS (BLUE VELVET)
5BWPL W10327966
5HWPL W10114566
5IW10344054 Whirlpool Support
5KBOWL SUPPORT AND PINS (GUAVA GLAZE)
5NWPL W11255397
5EWPL W11286410
6LWPL W11255369
6KWPL W11113674
6EWPL W11286414
6WPL W11286436
6D9705324 Whirlpool Column Assembly
6NWPL W11255394
6BW10328003 Whirlpool Column Assembly
6HWPL W10114569
6CWPL 9709166
6F9705320 Whirlpool Column
6MWPL W11255413
6AWPL W11234597
6GWPL W10114588
6JWPL 9705325
6IWPL W10344072
7D9705348 Whirlpool Base
7WPL W11286438
7AWPL W11236435
7EWPL W11286419
7LWPL W11255362
7CWPL 9709169
7GWPL W10114591
7HWPL W10114572
7F9705344 Whirlpool Base
7JWPL 9705349
7BWPL W10328017
7KBASE & FOOT ASSEMBLY (GUAVA GLAZE)
7MWPL W11255409
7IWPL W10344173
7NWPL W11255390
