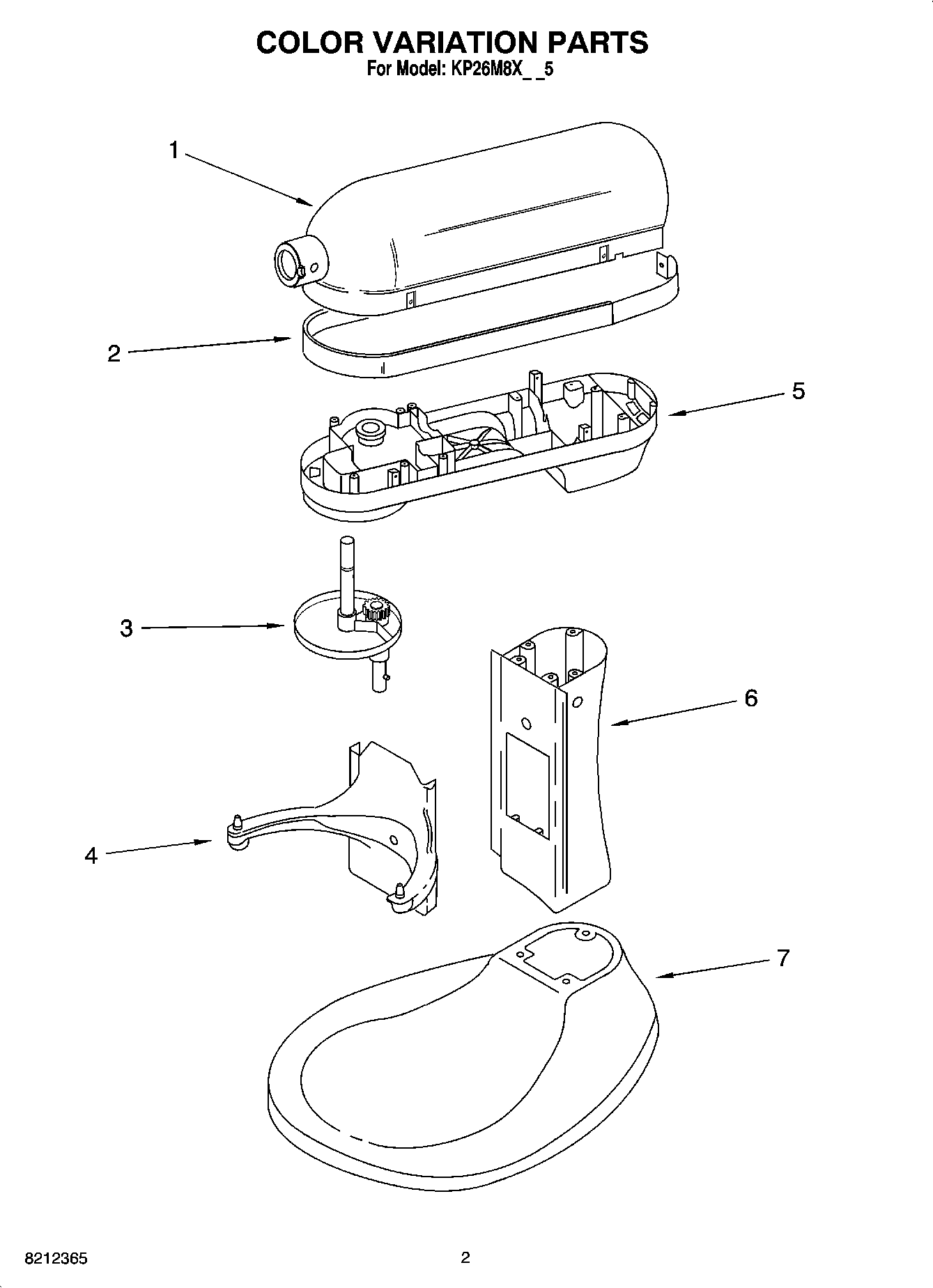

KP26M8XMC5 01 – COLOR VARIATION PARTS

Products

Position	Product
1	9703433 Whirlpool Housing
1	Motor Housing (Satin Copper)
1	Motor Housing (Brushed Nickel)
2	Trim Band (Platinum/Frost)
3	WP9708175 Whirlpool Planetary Gear
3	Planetary (Brushed Nickel)
3	Planetary (Satin Copper)
4	BOWL SUPPORT AND PINS (BRUSHED NICKEL)
4	BOWL SUPPORT AND PINS (SATIN COPPER)
4	9703397 Whirlpool Support
5	Lower Gearcase (Brushed Nickel)
5	Lower Gearcase (Satin Copper)
5	Lower Gearcase (Metallic Chrome)
6	WPW10112556 Whirlpool Column Assembly
6	COLUMN AND PINS (SATIN COPPER)
6	9703349 Whirlpool Column
7	BASE AND FOOT ASSEMBLY (SATIN COPPER)
7	9703346 Whirlpool Base
7	BASE AND FOOT ASSEMBLY (BRUSHED NICKEL)
