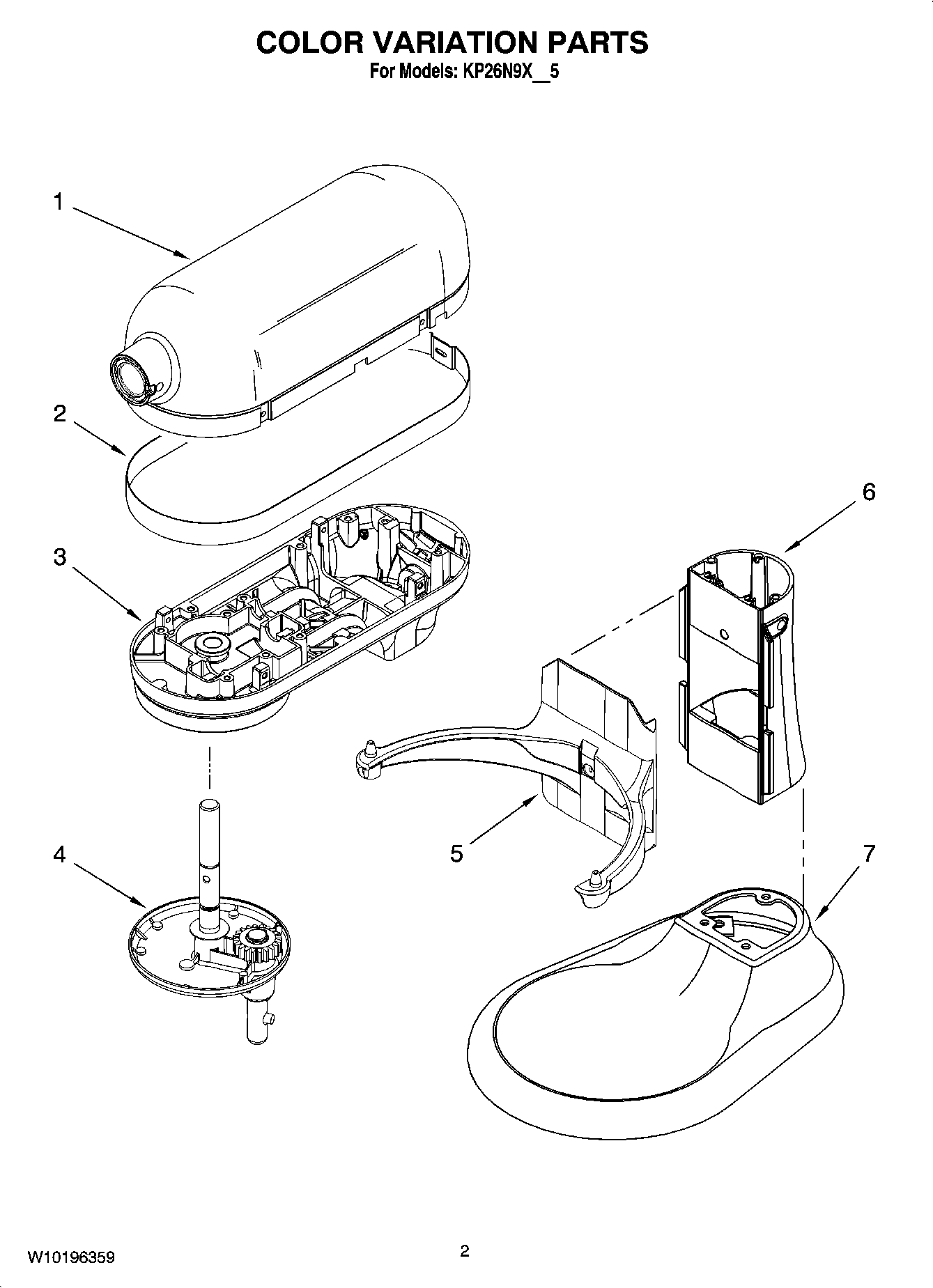

KP26N9XER5 01 – COLOR VARIATION PARTS

KP26N9XER5 01 – COLOR VARIATION PARTS

Written by

in

KP26N9XER5 01 – COLOR VARIATION PARTS

Products

PositionProduct
19703311 Whirlpool Housing Assembly
19705296 Whirlpool Housing
19705300 Whirlpool Housing Assembly
19708749 Whirlpool Housing
2Trim Band (Platinum/Frost)
39708756 Whirlpool Gearcase Assembly
3WP9706047 Whirlpool Gearcase
39706331 Whirlpool Gearcase
39706311 Whirlpool Gearcase
4WP9708172 Whirlpool Planetary Assembly
4WP9708753 Whirlpool Planetary Gear
4WP9708180 Whirlpool Planetary Gear
4WP9708176 Whirlpool Planetary Mixer
59708760 Whirlpool Support
59705356 Whirlpool Support
59703674 Whirlpool Support
59705360 Whirlpool Support Assembly
69703673 Whirlpool Column
69705324 Whirlpool Column Assembly
6COLUMN AND PINS (NICKEL PEARL)
69705320 Whirlpool Column
79705348 Whirlpool Base
7BASE & FOOT ASSEMBLY (NICKEL PEARL)
79703690 Whirlpool Base
79705344 Whirlpool Base
