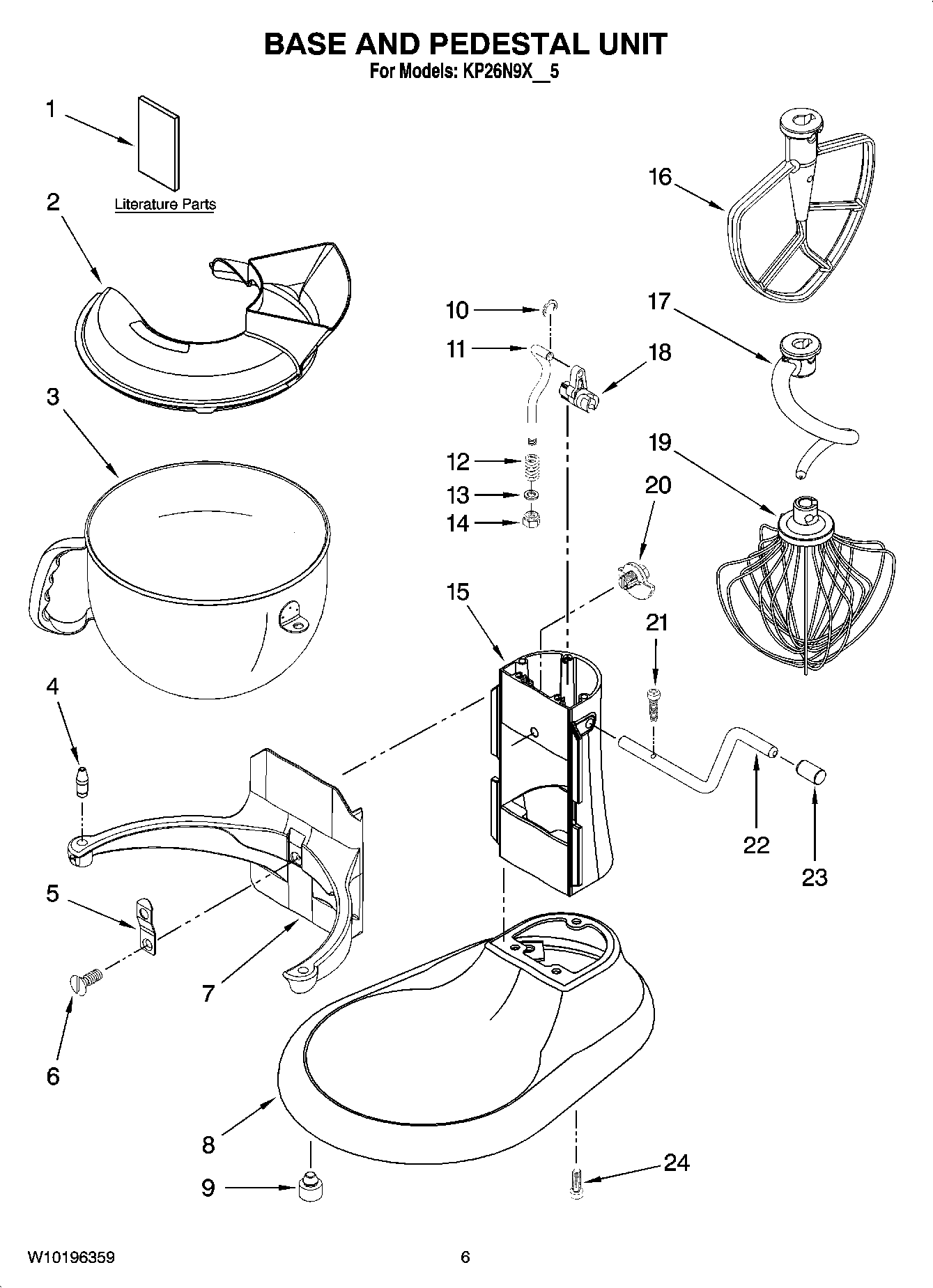

KP26N9XWH5 03 – BASE AND PEDESTAL UNIT, OPTIONAL PARTS

Products

Position	Product
	SAUSAGE STUFFER KIT (SSA)
	FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
	ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
	67500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
	FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
	MAKER, ICE CREAM (KICA0WH)
	PASTA MAKER PLATES (SNPA)
	PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
	W11200218 Whirlpool Grease Filter
	Food Tray (FT)
	CAN OPENER (CO)
	JUICER (JE)
	FOOD GRINDER (FG-A)
	Grain Mill, KGMA
1	Use & Care Guide
1	Repair Parts List
2	WPW10617049 Whirlpool Pour Shelf
3	WPW10245586 Whirlpool Mixer Bowl
4	WP240185 Whirlpool Bowl Retaining Pin
5	WPW10504114 Whirlpool Clip
6	W10861883 Whirlpool Screw
7	Bowl Support
8	Base and Foot Assembly
9	WP9708649 Whirlpool Foot
10	WP9703307 Whirlpool Ring-C Assembly
11	W11376364 Whirlpool Lift Rod
12	4159622 Whirlpool PP Spring
13	Washer
14	8533907 Whirlpool Dishwasher Nut
15	Column Assembly
16	W11646967 Whirlpool Mixer Beater
17	W11646968 Whirlpool Dough Hook
18	WP9706885 Whirlpool Lift Arm Assembly
19	WPW10600940 Whirlpool Wire Whip
20	Cam, Adjusting
21	WP3400814 Whirlpool Screw
22	W11376371 Whirlpool Handle Assembly
23	W11501449 Whirlpool Handle Assembly
24	W10913677 Whirlpool Screw
