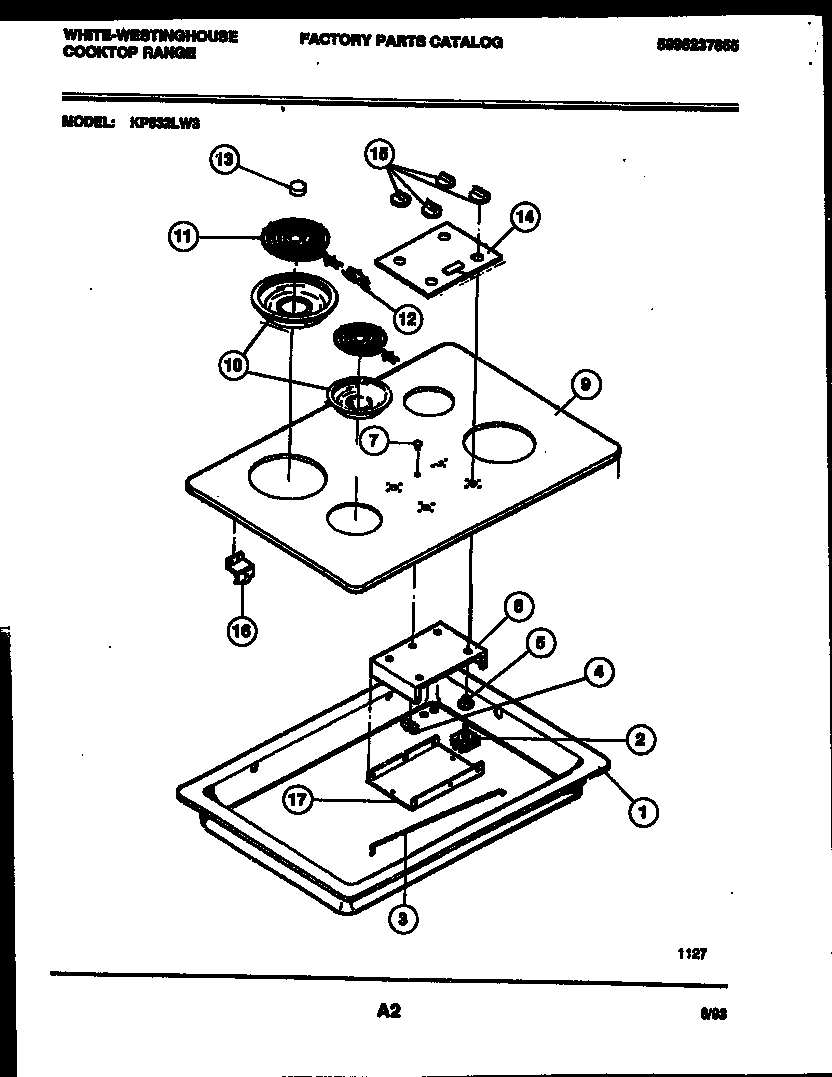

KP532LD3 02 – COOKTOP PARTS

KP532LD3 02 – COOKTOP PARTS

Written by

in

KP532LD3 02 – COOKTOP PARTS

Products

PositionProduct
*76016WCI 191S018F233
1WCI 5303299250
25303935086 Frigidaire Oven Top Burner Switch Kit
3WCI 3016817
4INDICATOR LIGHT, OVEN
5WCI 08007822
6PLATE, INSTRUMENT MTG
7LENS PILOT LIGHT
9MAIN TOP, ALMOND
10316048413 Frigidaire Oven Range Chrome 8" Drip Bow
10A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
115308011964 Frigidaire Surface Element P1
11A318372211 Frigidaire Oven 6" Electric Range Burner Kit
125303935058 Frigidaire Oven Burner Receptacle Kit
135303017715 Frigidaire Medallion
14WCI 3200433
15WCI 5303015608
16WCI 3016820
17COVER, INSTRUMENT MTG.
