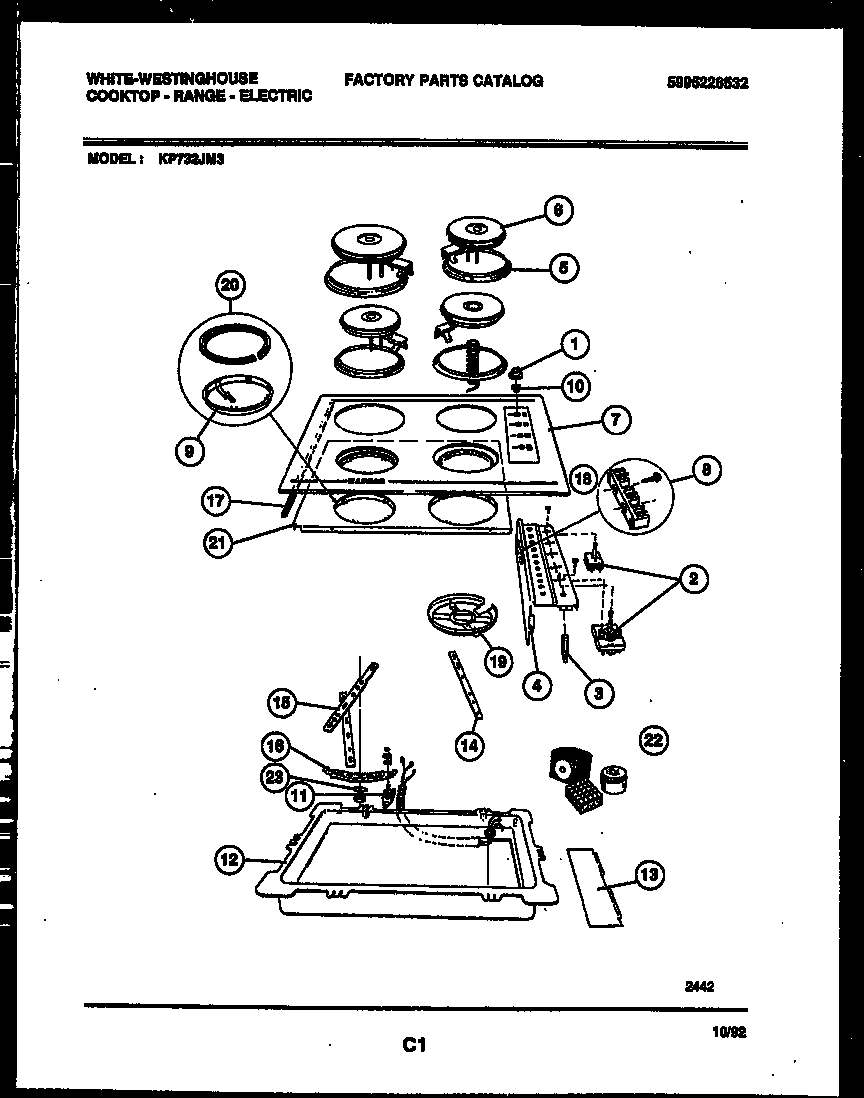

KP732JM3 02 – COOKTOP PARTS

Written by

Products

Position	Product
*70498	SWITCH, S/U AUTO
1	WCI 5303015608
2B	SWITCH-TOP UNIT-AUTO-MED
2	SWITCH-6“ ELEMENT
2A	SWITCH-8“ ELEMENT
3	WCI 3015355
4	WCI 3051602
5A	TRIM-INNER RING-MED (2)
5	WCI 08014754
6B	WCI 5303209298
6A	SURFACE UNIT-LARGE (2)
6	WCI 5303051142
7	WCI 5303015207
8	5304409888 Frigidaire Oven Terminal Block with Hardware
9A	RETAINER MED. (2)
9	WCI 3051881
10	BUSHING-SNAP
11	SWITCH, THERMAL PROTECTOR (4)
12	WCI 5303200397
13	WCI 3051887
14	STRAP-ANIT TURN (4)
15	WCI 3051888
16A	WCI 08014758
16	BRACKET-THERMO BULB
17	TAPE-BLACK CLOTH (1/2)
18	WCI 3015357
19	SHIELD-ELEMENT AUTO
20A	WCI 08014745
20	WCI 08014744
21	WCI 3015358
22	WCI 3015359
23	WCI 3051346
